| Color: | Sky Blue Or Grass Green | Pay Off Bobbin: | Diameter 500/630/800/mm |
|---|---|---|---|
| Fit For: | Core Wire Manufacturing Machine | Take Up Bobbin: | 500/630 |
| Head: | Double Head | Control Type: | Motor Control |
| Max Speed: | 600m/min | ||
| High Light: | wire stranding machine,cable stranding machine | ||
Sky Blue Automobile Wire Rewinding Machine 600M / Min Motor Control

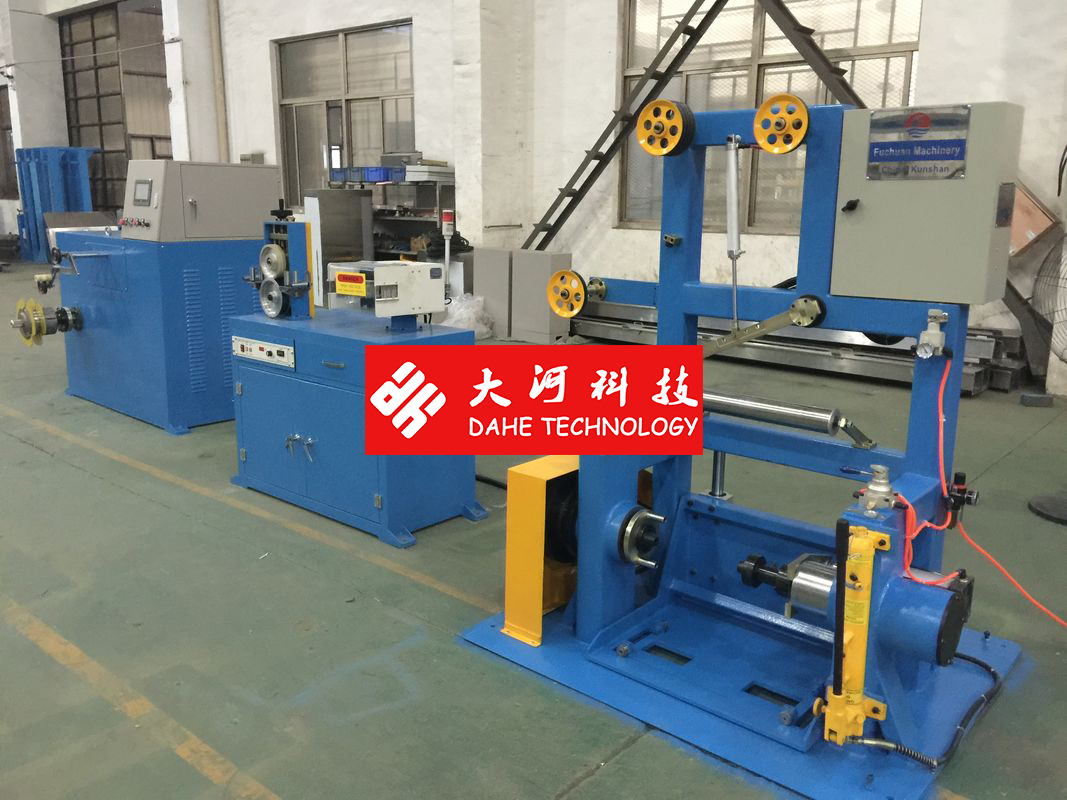

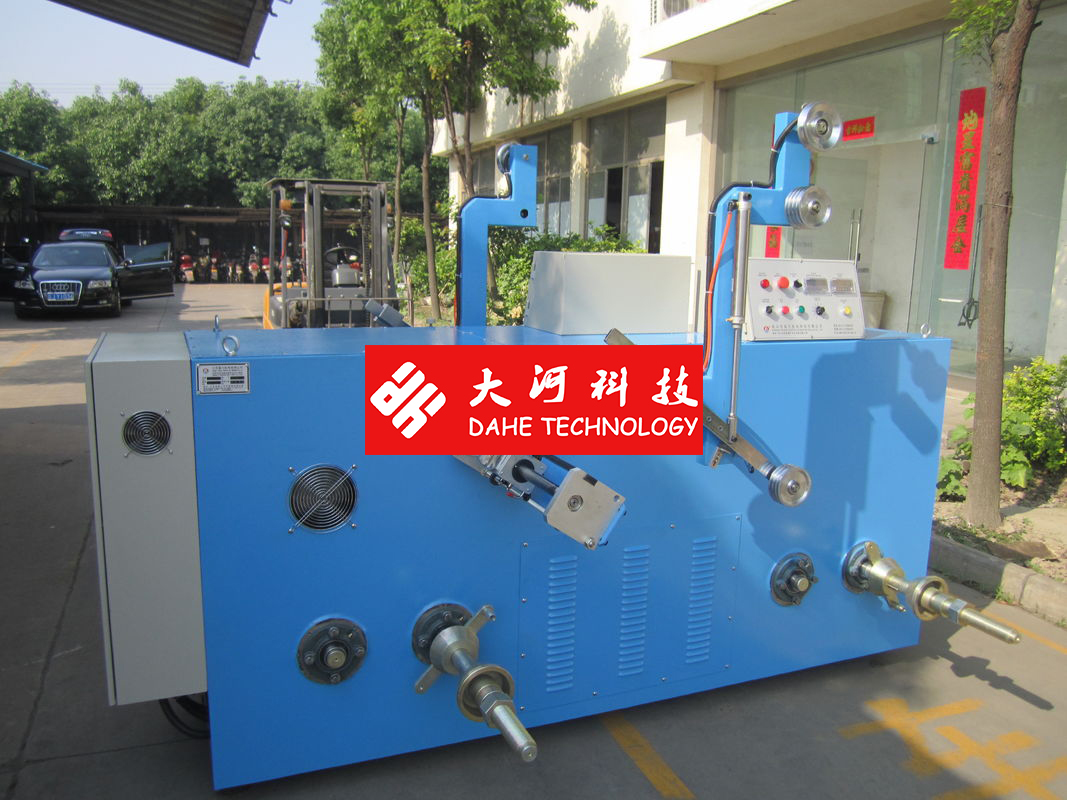

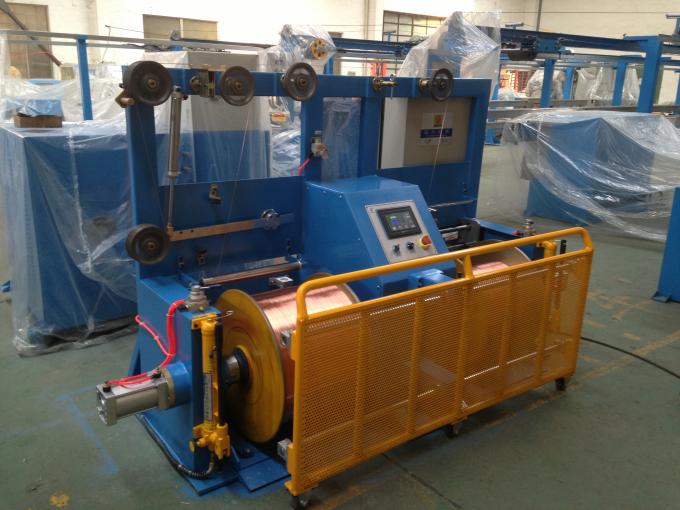

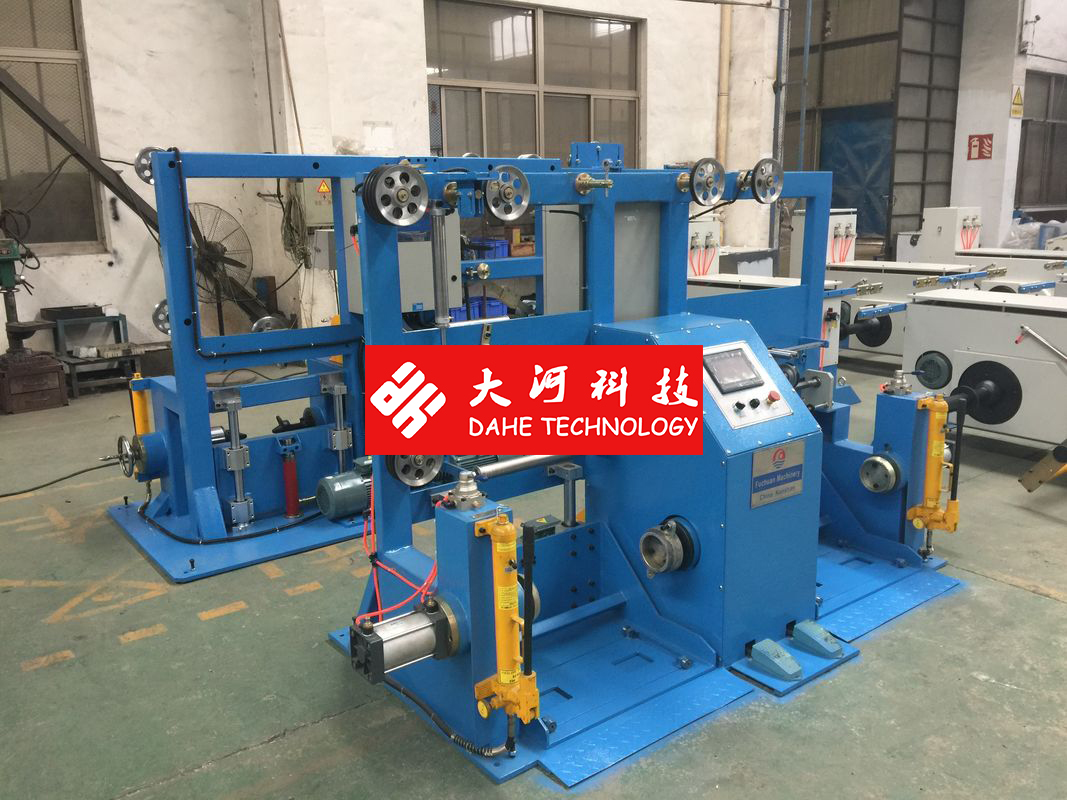

Double bobbin dynamic pay off machine(used for double twist)
1. Equipment models: DHT-500 double bobbin dynamic pay off machine
2. Usage: It is mainly applied to the pay off of 2pcs of core wires while double twisting.
3. Single dia: 0.75-1.5mm
4. Pay off bobbin size: 500*56*300mm
5. Tension range: 250g-1500g
6. Pay off speed: It is feedback the signal to the inverter to control the rotating speed of motor by displacement sensor
7. Main motor: 0.75kw*2pcs
8. Loading/Unloading bobbin: Manual
9. Protection: wire is break when wire is broken
10. Dimension: 1800L*800W*1400H
