| Screw Dia: | 60mm | Color: | Sky Blue/ Grass Green |
|---|---|---|---|
| Screw Ratio: | 25:1 | Extrusion Output: | 100kg |
| Max Speed: | 600m/min | Pay Off Bobbin: | Diameter 500/630/800/mm |
| Material: | PVC,PP,PE,SR-PVC | ||
| High Light: | wire extrusion machine,wire stranding machine | ||
DAHETEC Plastic Insulating Wire Extruder Machine With Screw Dia 60mm
Quick Details:

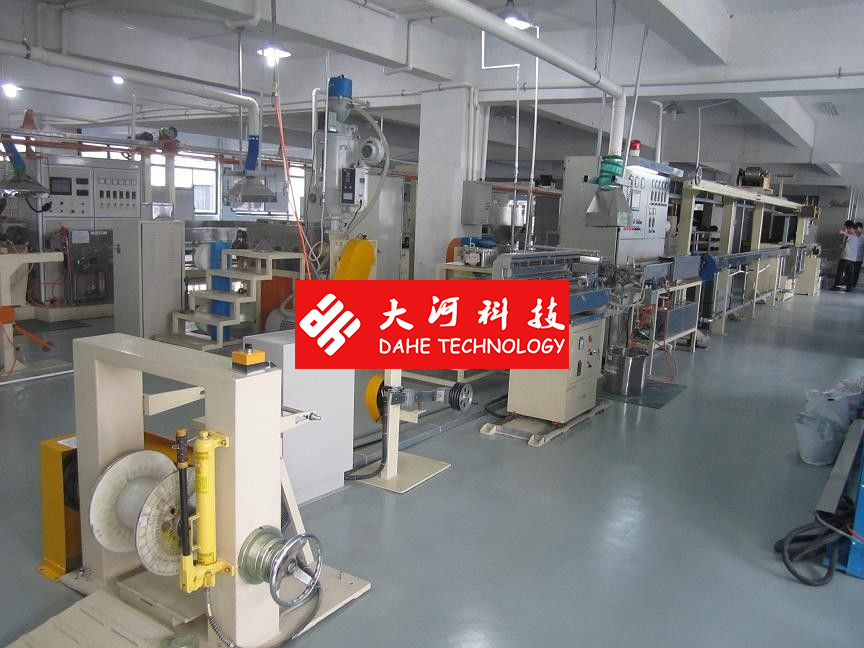

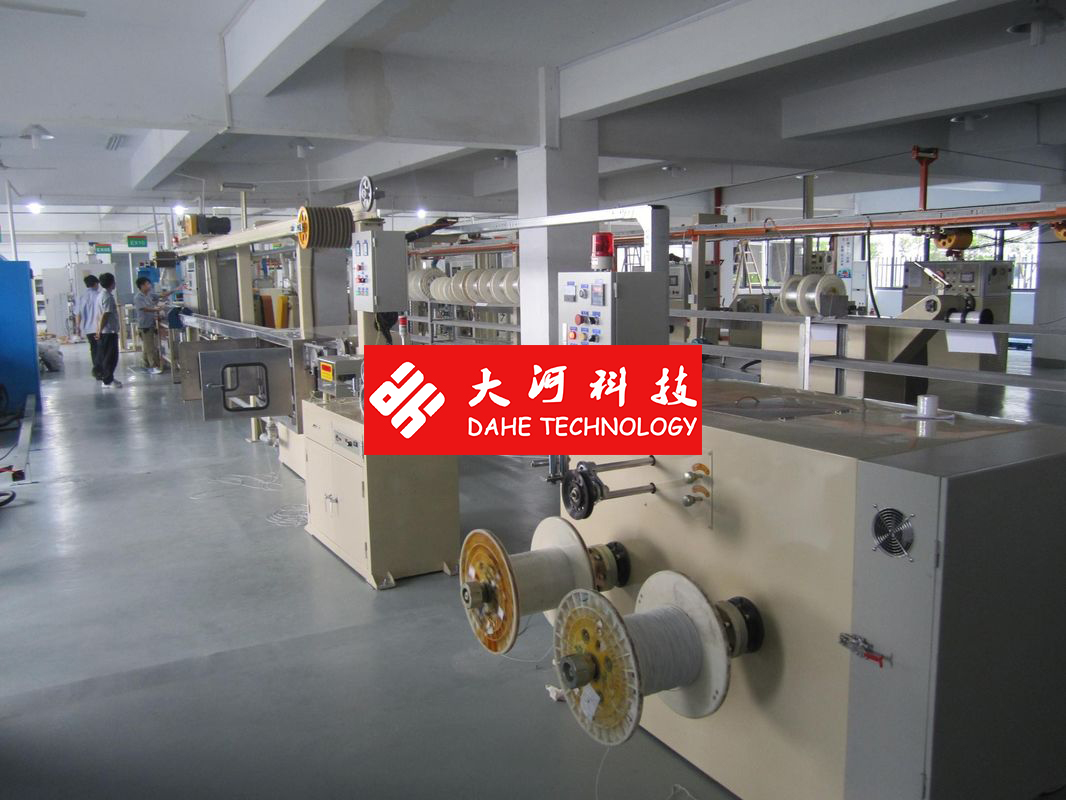

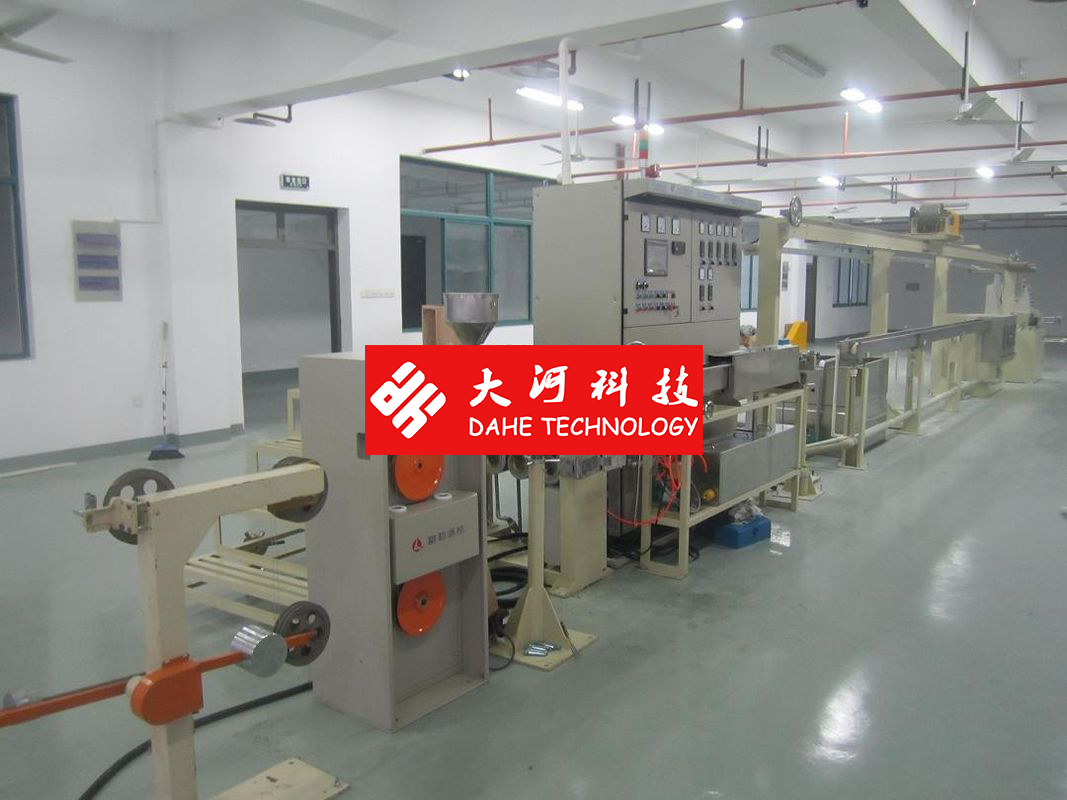

Automobile wire high speed extruder line
Apply for extruding the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated jacketed.
Characteristics:
Component:
Lut barrel up pay off machine,straighten ,main machine,injection machine,control case,water tank,double
wheel capstan,accumulator,double shaft take up and other equipments.
The choice equipments:
copper wire pre-heater,printer,OD measuring instrument,spark tester and PLC control or IPC operation. Save,display and revise technology parameter,remote control.
Specification:
1. Mechanical model: DHT-60+35
2. Pay off type: 500-630active pay off or lut barrel up pay off
3. Screw dia: 60
4. Screw ratio: 25:1
5. Extrusion output: 100kg/h
6. Revolving speed of screw: max 100rpm
7. Main power: 15kw
8. Wire diameter: 0.8-5.0mm
9. Cooling device: monolayer/double layer model U
10. Take up type:1246 automatic coiling machine,the plum blossom falls barrel machine,shaft type.
