Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Pay Off Bobbin: | Dia 500mm |
|---|---|---|---|
| Material: | Low Smoking Non-halogen Flameresistant | Screw Dia: | 50mm |
| Operation Mode: | Touch Screen | Also Material: | PP.PE.PVC.HFFR.LSZH.LSOH |
| High Light: | wire extrusion machine,wire stranding machine | ||

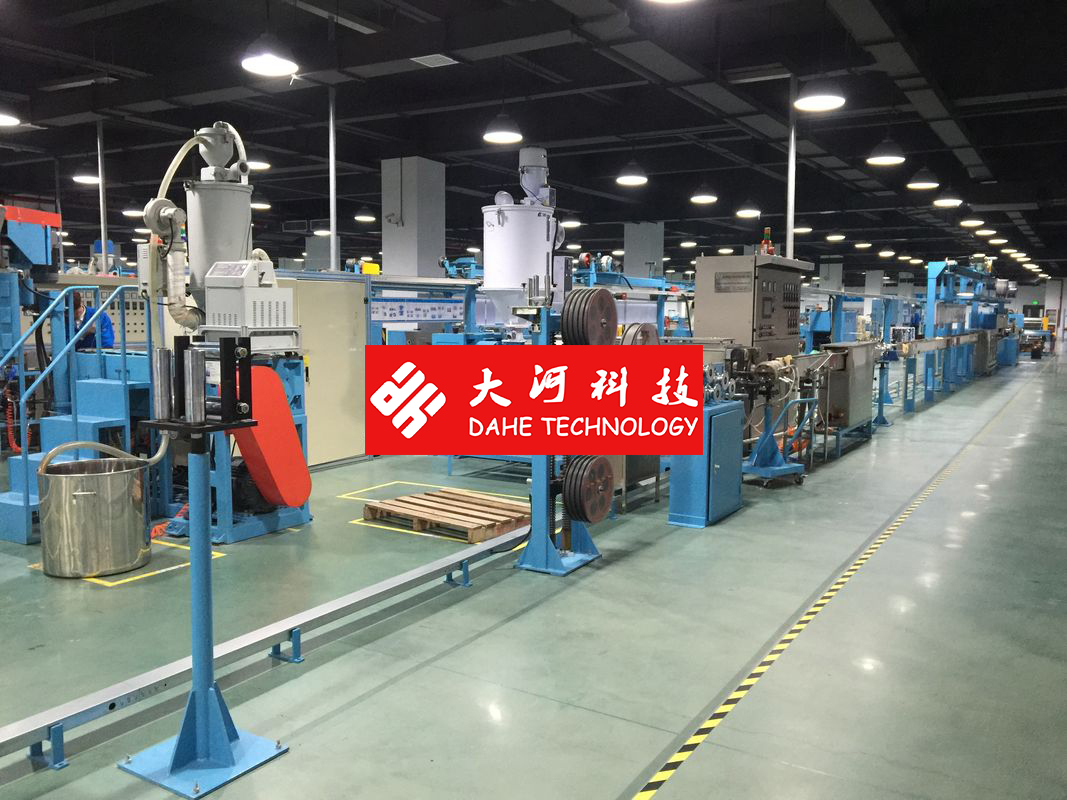

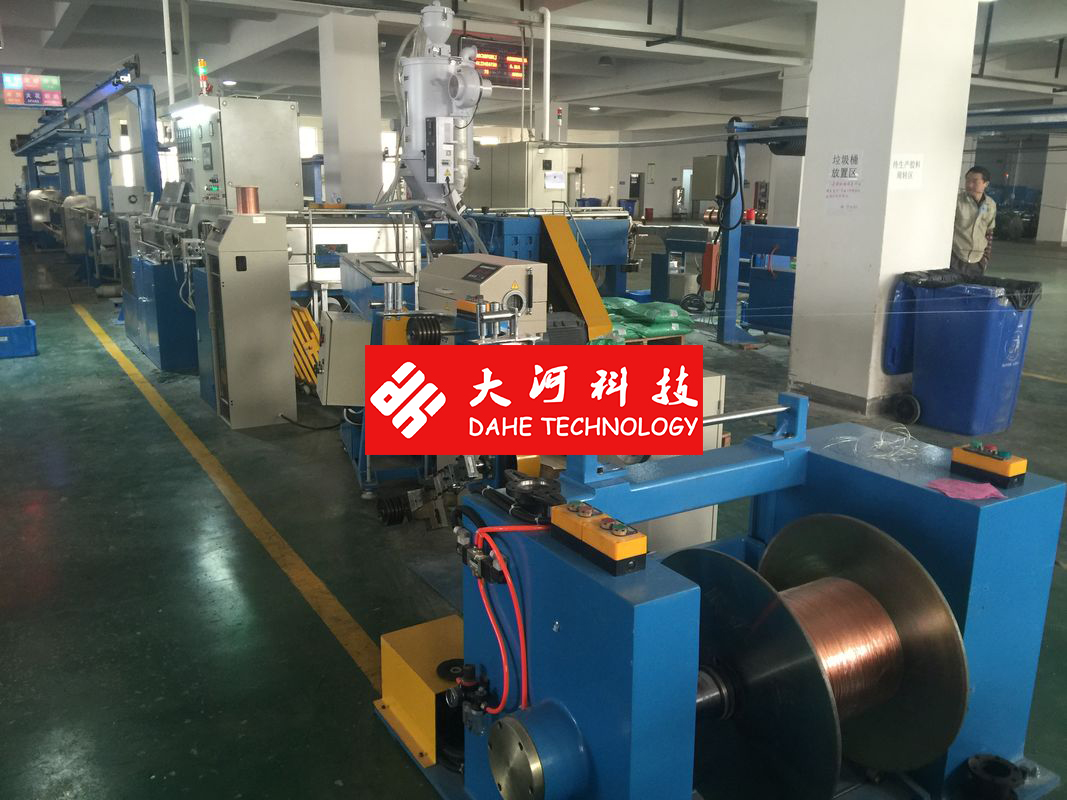

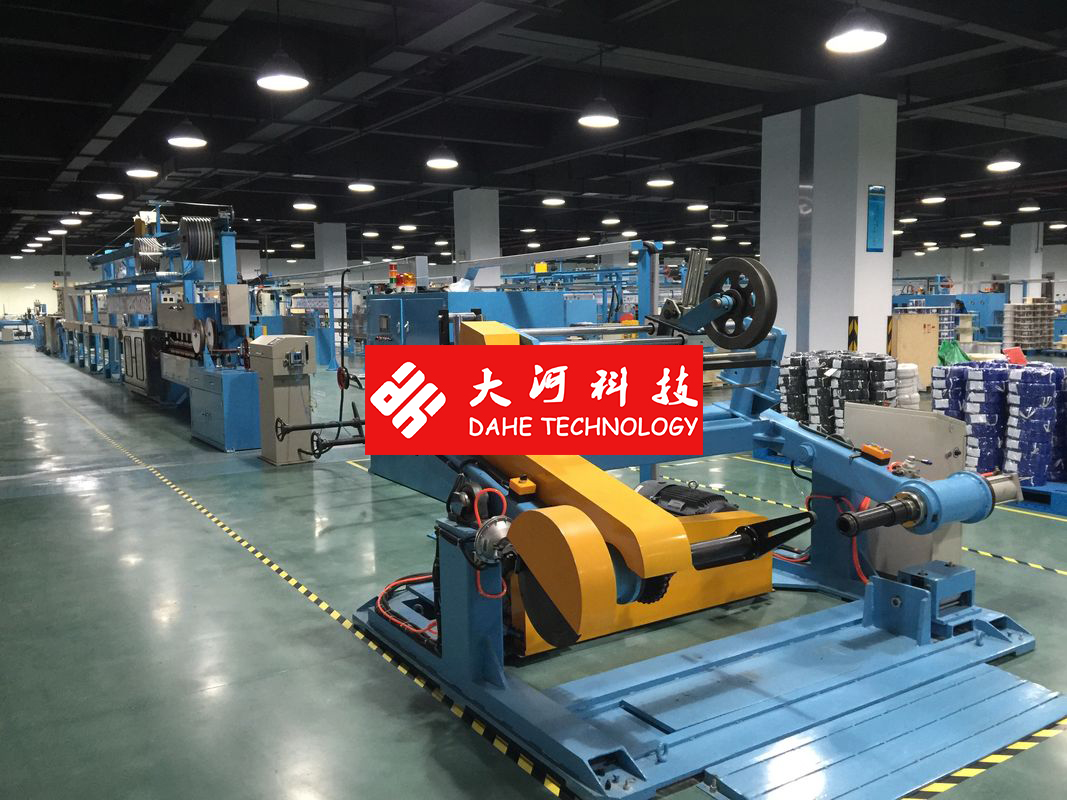

DAHETEC Photovoltaic 50 Cable Extrusion Machine / Production Line Non - Halogen Flame Resistant
Quick Details:
A. Low smoking, non-halogen extruder line
B. Photovoltaic extruder line
Usage:
It is applied to PU,NYLON jacket, low smoking non-halogen flame-resistant environmental building wire.
Specification:
| Model | DHT-50-1 |
| Screw Diameter | Φ50 |
| Screw L/D Ratio | 26:1 |
| Feed wire type | Active pay off or tension pay off |
| Max speed(m/min) | 300 |
| Extrusion output | 70 |
| Power for main machine(KW) | 15 |
| Wire diameter | Φ0.6-4.0 |
| Max accumulator length(m) | 220 |
| Accumulator | Horizonal accumulator |
| Cooling channel | Folding W type or U type |
| Capstan diameter | Φ410 |
| Capstan power | 5HP |
| Take up power | 3.7KW |
| Take up type | Double shaft take-up or shaftless take up |
