Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Pay Off Bobbin: | DIA 500/630/800/1000mm |
|---|---|---|---|
| Fit For Wire: | BV,BVR,RV,PE,BVV | Wire: | Enamelled Wire/glazed Wire/insulated Wire |
| BV Building Wire: | AND LAN Cable ALSO | Wire Dia: | 1.5-12mm |
| Plastic Material: | PVC.PE | Screw Dia: | 50/60/70/80/90 |
| High Light: | wire extrusion machine,wire stranding machine | ||
China DAHETEC BV BVV Wire Extruder Machine With 150kg Extrusion Output ISO Certified
Quick Details:

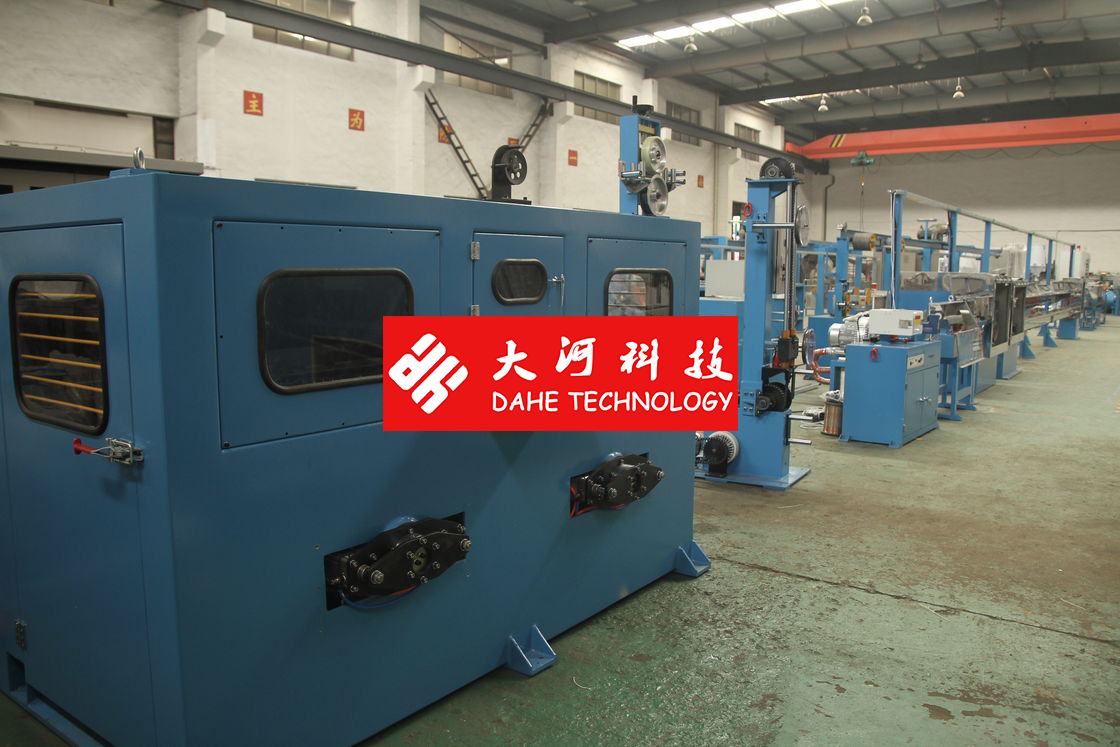

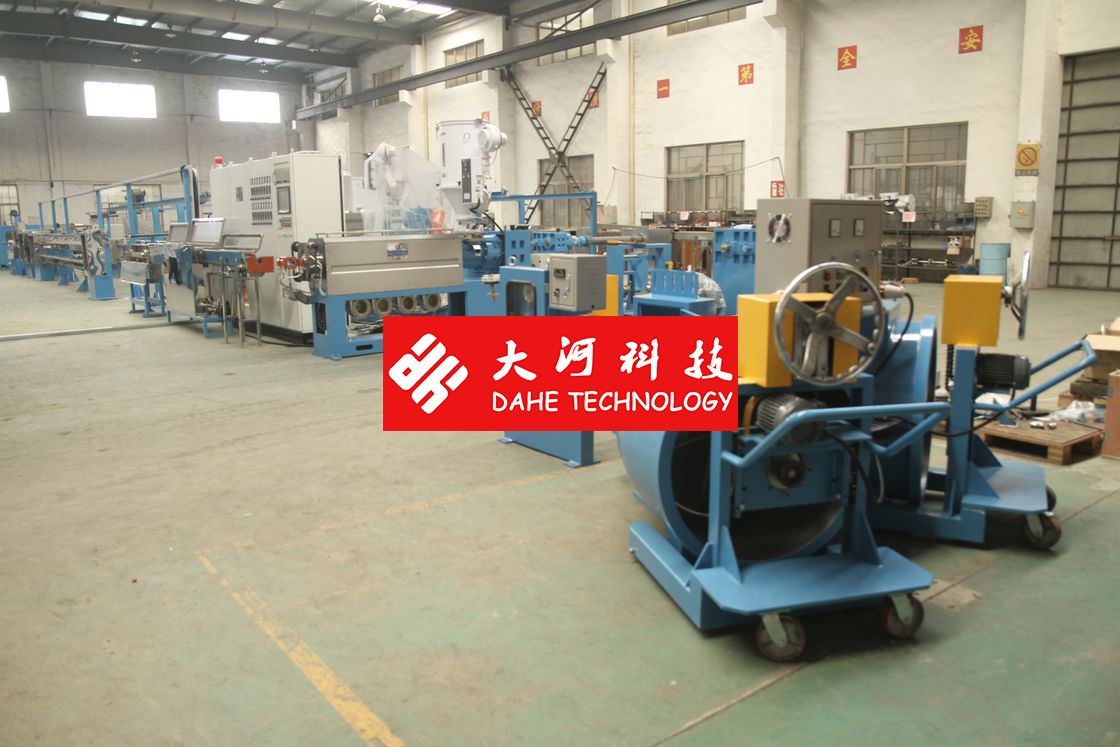

BV,BVV,BVR,RV wire extruder production line
A. Apply for extruding the PVC,PE and other plastic material for the BV,BVR insulate sheathing produced.
Characteristics:
A. PLC+IPC operation or touch screen operation, save, display and change all kinds technological parameters. Whole-process monitor.
B. Superior special non-adjusted head, meet the extruder technological parameters requirement.
C. High speed pay off equipment, assure unload the bobbin do not stop machine.
D. Special extruder screw, meet the kinds of material requirement.
Specification:
| Model | DHT-50 | DHT-60 | DHT-70-7 | DHT-80 |
| Screw Diameter | Φ50 | Φ60 | Φ70 | Φ80 |
| Screw L/D Ratio | 26:1 | 26:1 | 26:1 | 25:1 |
| Feed wire type | Active pay off or tension pay off | |||
| Max speed(m/min) | 300 | 300 | 300 | 200 |
| Extrusion output | 70 | 100 | 150 | 200 |
| Power for main machine(KW) | 15 | 18.5 | 30 | 37 |
| Wire diameter | Φ0.6-4.0 | Φ0.8-8.0 | Φ1.5-12 | Φ5.0-20 |
| Max accumulator length(m) | 220 | |||
| Accumulator | Horizonal accumulator | |||
| Cooling channel | Folding W type or U type | |||
| Capstan diameter | Φ410 | Φ410 | Φ510 | Φ610 |
| Capstan power | 3.7KW | 3.7KW | 5.5KW | 7.5KW |
| Take up power | 3.7KW | 5.0KW | 7.5KW | 3.7KW reduction motor |
| Take up type | Double shaft take-up | |||
