Product Details:
Payment & Shipping Terms:
|
| Screw Dia: | 60mm | Color: | Sky Blue |
|---|---|---|---|
| Screw Ratio: | 25:1 | Extrusion Output: | 100kg |
| Max Speed: | 600m/min | Pay Off Bobbin: | DIA 500/630/800/mm |
| Material: | PVC,PP,PE,SR-PVC | ||
| High Light: | wire extrusion machine,wire stranding machine | ||
Automobile Wire / Plastic Insulating Wire Extruder Machine With Screw Dia 60mm
Quick Details:

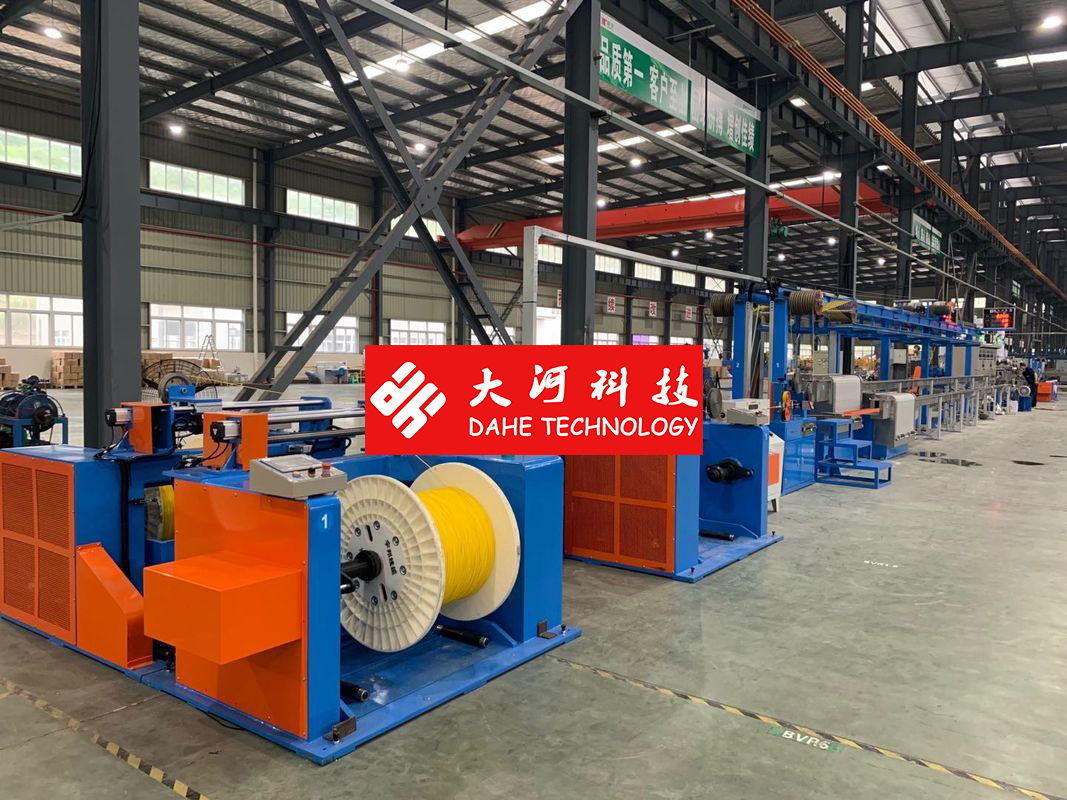

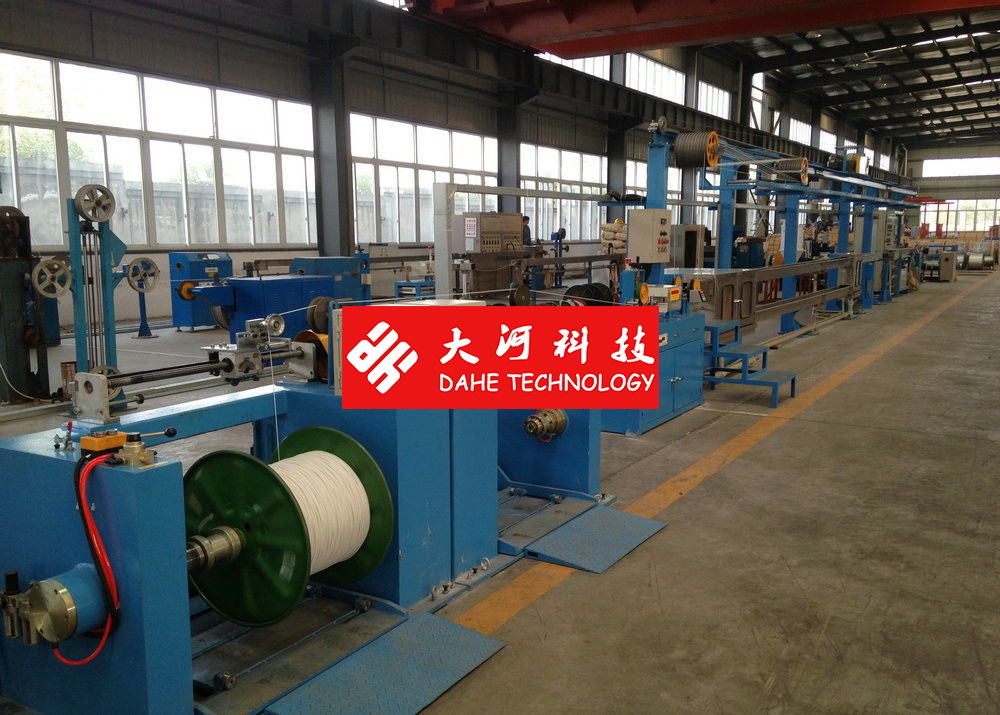

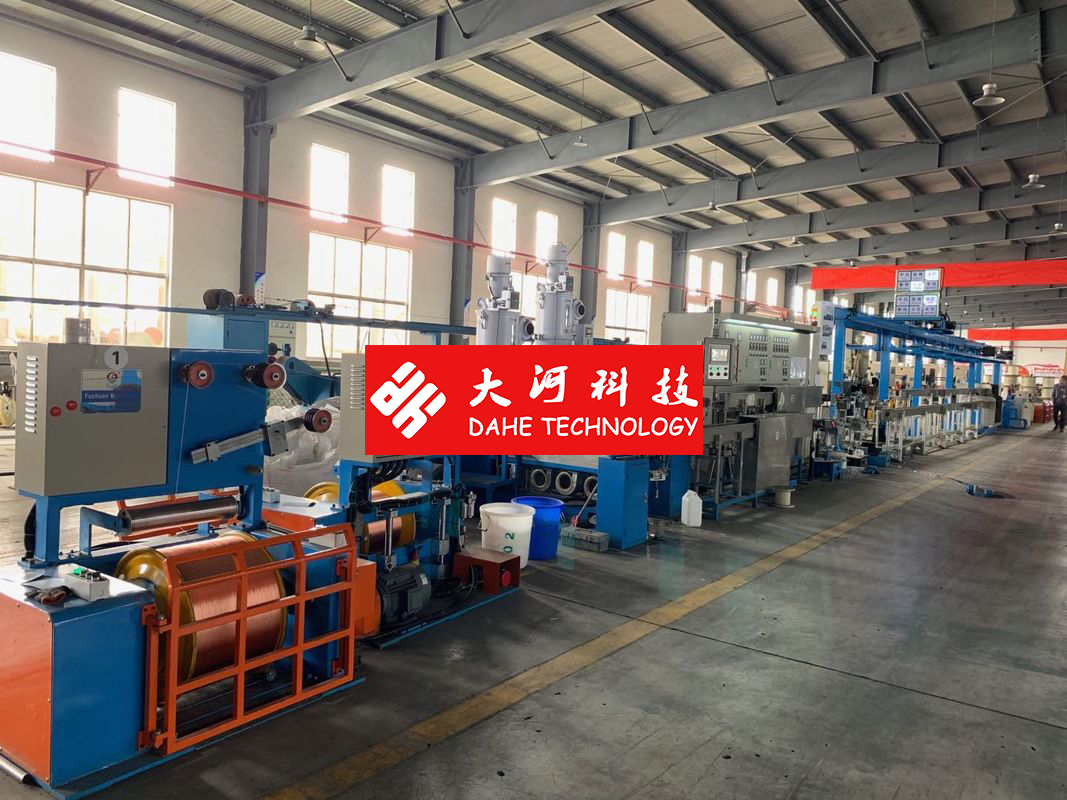

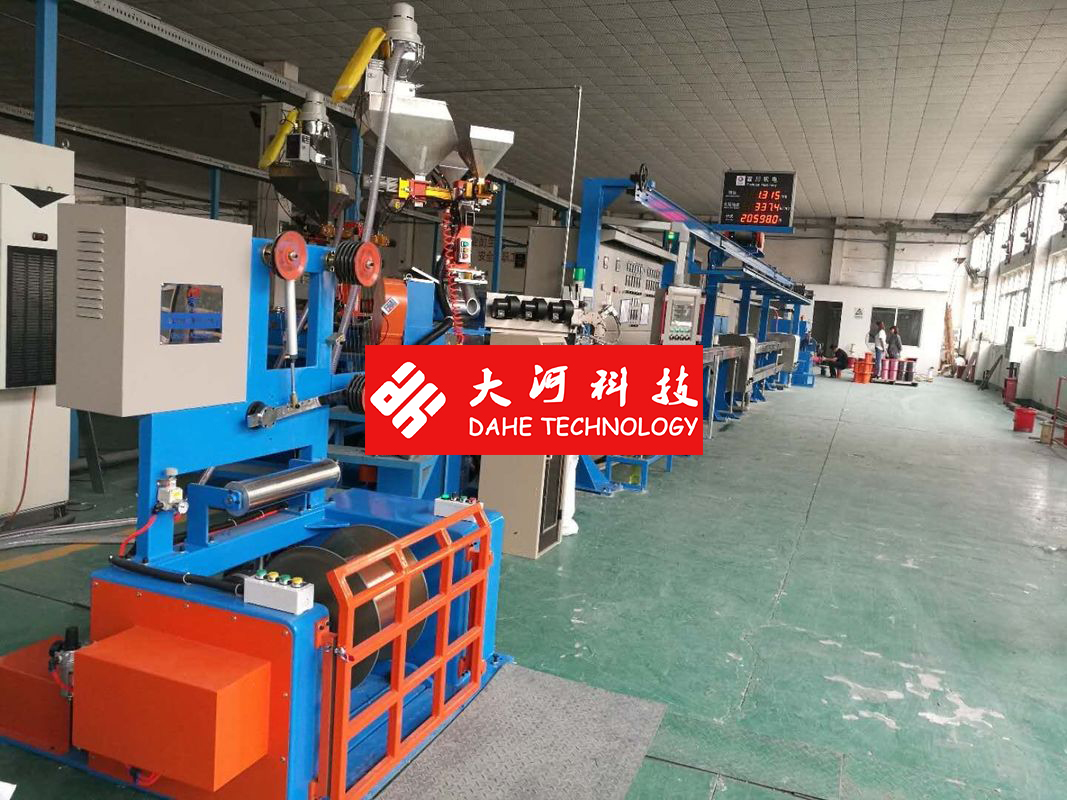

Automobile wire high speed extruder line
1. Apply for extruding the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated jacketed.
Characteristics:
Component:
2.1 Lut barrel up pay off machine,straighten ,main machine,injection machine,control case,water tank,double
2.2 wheel capstan,accumulator,double shaft take up and other equipments.
The choice equipments:
2.3 copper wire pre-heater,printer,OD measuring instrument,spark tester and PLC control or IPC operation. Save,display and revise technology parameter,remote control.
Specification:
3.1. Mechanical model: DHT-60+35-6
3.2. Pay off type: 500-630active pay off or lut barrel up pay off
3.3. Screw dia: 60
3.4. Screw ratio: 25:1
3.5. Extrusion output: 100kg/h
3.6. Revolving speed of screw: max 100rpm
3.7. Main power: 15kw
3.8. Wire diameter: 0.8-5.0mm
3.9. Cooling device: monolayer/double layer model U
4.0. Take up type:1246 automatic coiling machine,the plum blossom falls barrel machine,shaft type.
