| Name: | Wire Extruder Machine | Applicable: | Electrical Cable Wire, Power Wire And Other Wire&cable |
|---|---|---|---|
| Max Speed: | 200m/mim | Extrusion Output: | 250kg/h |
| Screw Dia: | 90mm | Color: | Sky Blue |
| High Light: | wire extrusion machine,wire stranding machine | ||

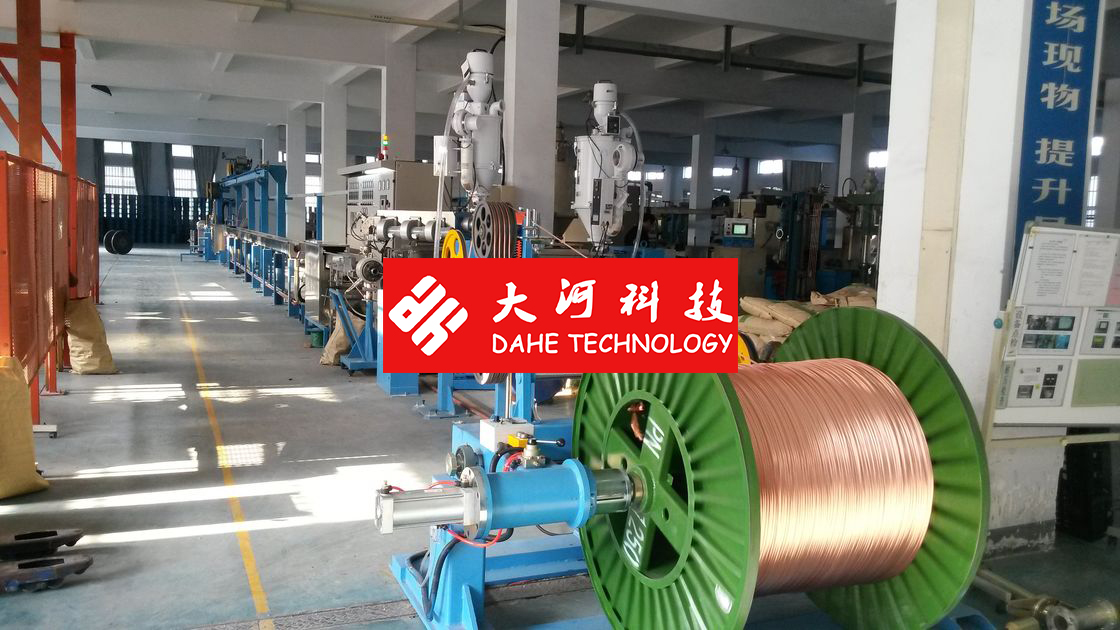

High Production Speed Wire Extruder Machine For Electrical Cable Wire
Wire Extruder Machine Quick Details:
Applied for producing the electrical wire, power wire, insulated sheathing and other wire&cable.
Wire Extruder Machine Specifications:
| Model | DHT-40 | DHT-50 | DHT-60 | DHT-70 | DHT-80 | DHT-90-6 |
| Screw Diameter | 40 | 50 | 60 | 70 | 80 | 90 |
| Screw L/D Ratio | 26:1 | 26:1 | 26:1 | 26:1 | 25:1 | 25:1 |
| Feed wire type | Active pay off or tension pay off | |||||
| Max speed(m/min) | 300 | 400 | 500 | 500 | 200 | 200 |
| Extrusion output | 40 | 70 | 100 | 150 | 200 | 250 |
| Power for main machine(KW) | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Wire diameter | 0.5-3.0 | 0.6-4.0 | 0.8-8.0 | 1.5-12 | 5.0-20 | 6.0-25 |
| Max accumulator length(m) | 220 | |||||
| Accumulator | Horizonal accumulator | |||||
| Cooling channel | Folding W type | |||||
| Capstan diameter | 340 | 410 | 410 | 510 | Double wheel capstan or caterpillar capstan | |
| Capstan power | 2.2KW | 3.7KW | 3.7KW | 5.5KW | 7.5KW | 7.5KW |
| Take up power | 3.7KW | 3.7KW | 5.0KW | 7.5KW | 7.5KW | 7.5KW |
| Take up type | Double shaft take-up or shaftless take up | |||||
