Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Pay Off Bobbin: | DIAMETER 500/630/800/1000mm |
|---|---|---|---|
| Fit For Wire: | BV,BVR,RV,PE,BVV | Wire: | Enamelled Wire/glazed Wire/insulated Wire |
| BV Building Wire: | Also LAN Cable | Wire Dia: | 1.5-12mm |
| Plastic Material: | PVC/PE | Screw Dia: | 50/60/70/80/90 |
| High Light: | wire extrusion machine,wire stranding machine | ||

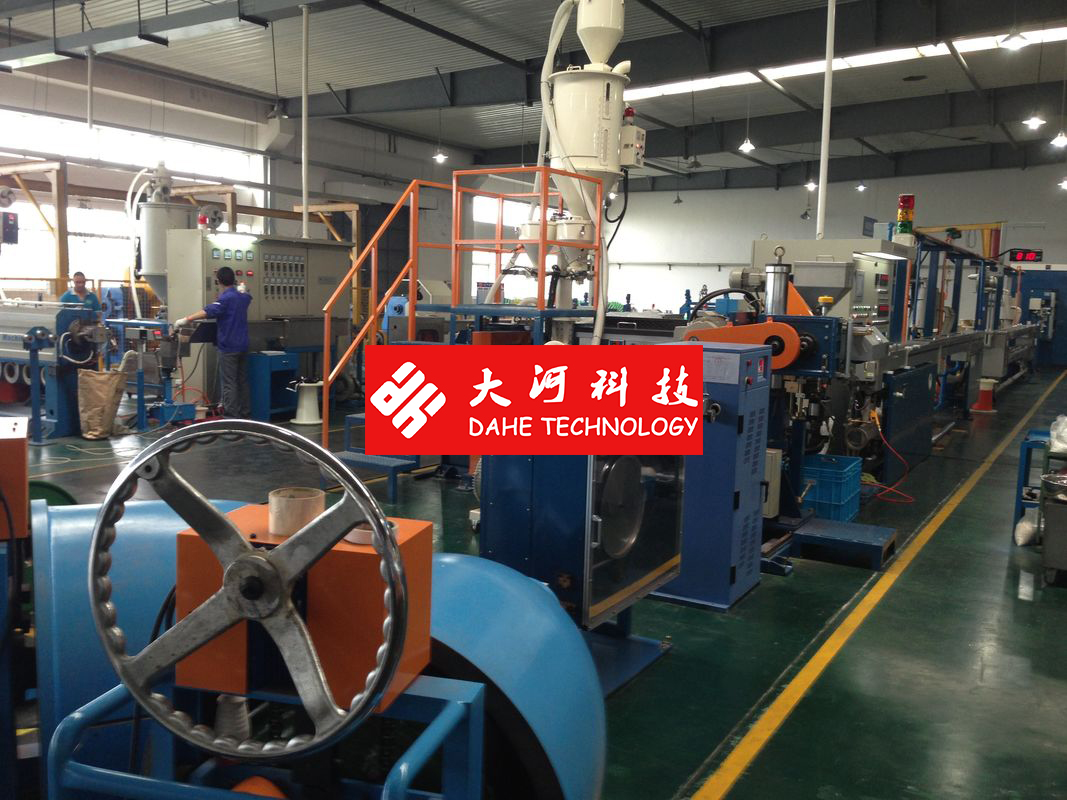

Powerful Electric Wire Making Machine / PVC Cable Extrusion Machine
Electric Wire Making Machine Quick Details:
BV,BVV,BVR,RV Electric Wire Making Machine
1. Apply for extruding the PVC,PE and other plastic material for the BV,BVR insulate sheathing produced.
Electric Wire Making Machine Characteristics:
2.1 PLC+IPC operation or touch screen operation, save, display and change all kinds technological parameters. Whole-process monitor.
2.2 Superior special non-adjusted head, meet the extruder technological parameters requirement.
2.3 High speed pay off equipment, assure unload the bobbin do not stop machine.
Electric Wire Making Machine Specification:
| Model | DHT-60 | DHT-70-6 | DHT-80 |
| Screw Diameter | Φ60 | Φ70 | Φ80 |
| Screw L/D Ratio | 26:1 | 26:1 | 25:1 |
| Feed wire type | Active pay off or tension pay off | ||
| Max speed(m/min) | 300 | 300 | 200 |
| Extrusion output | 100 | 150 | 200 |
| Power for main machine(KW) | 18.5 | 30 | 37 |
| Wire diameter | Φ0.8-8.0 | Φ1.5-12 | Φ5.0-20 |
| Max accumulator length(m) | 220 | ||
| Accumulator | Horizonal accumulator | ||
| Cooling channel | Folding W type or U type | ||
| Capstan diameter | Φ410 | Φ510 | Φ610 |
| Capstan power | 3.7KW | 5.5KW | 7.5KW |
| Take up power | 5.0KW | 7.5KW | 3.7KW reduction motor |
| Take up type | Double shaft take-up | ||
