Product Details:
|
| Name: | Cable Making Machine | Feature: | Low Noise |
|---|---|---|---|
| Fit For Wire: | Automotive Wire | Wire: | Enamelled Wire/glazed Wire/insulated Wire |
| Monitor: | LCD Monitor | Screw Dia: | 70 |
| Plastic Material: | PVC.PE | ||
| High Light: | wire extrusion machine,wire stranding machine | ||

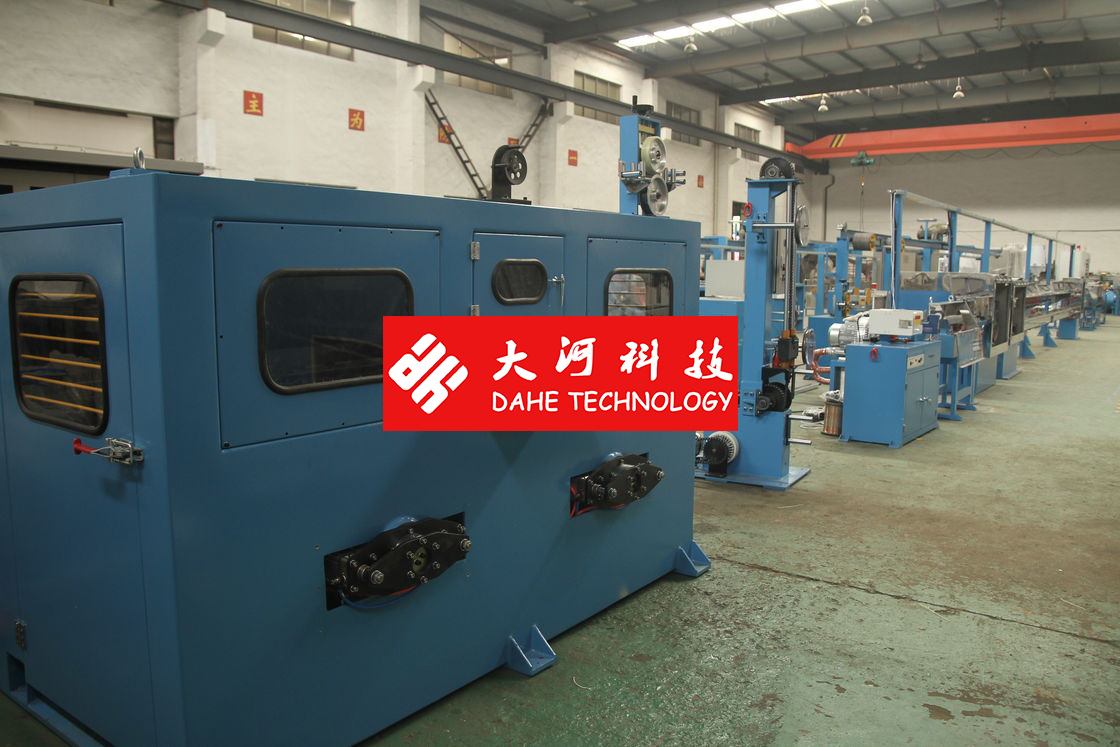

Low Noise Cable Making Machine , Automated Electric Cable Making Machine
Cable Making MachineQuick Details:
PVC PE wire insulated and sheathing
Cable Making Machine Application
Cable Making Machine is applied to extrude the PVC,PE and other plastic material for the automotive wire insulated and sheathing produced.
Cable Making Machine Characteristics:
Cable Making Machine Specification:
| Model | DHT-50 | DHT-60 | DHT-70+45 | DHT-80 |
| Screw Diameter | Φ50 | Φ60 | Φ70 | Φ80 |
| Screw L/D Ratio | 26:1 | 26:1 | 26:1 | 25:1 |
| Feed wire type | Active pay off or tension pay off | |||
| Max speed(m/min) | 300 | 300 | 300 | 200 |
| Extrusion output | 70 | 100 | 150 | 200 |
| Power for main machine(KW) | 15 | 18.5 | 30 | 37 |
| Wire diameter | Φ0.6-4.0 | Φ0.8-8.0 | Φ1.5-12 | Φ5.0-20 |
| Max accumulator length(m) | 220 | |||
| Accumulator | Horizonal accumulator | |||
| Cooling channel | Folding W type or U type | |||
| Capstan diameter | Φ410 | Φ410 | Φ510 | Φ610 |
| Capstan power | 3.7KW | 3.7KW | 5.5KW | 7.5KW |
| Take up power | 3.7KW | 5.0KW | 7.5KW | 3.7KW reduction motor |
| Take up type | Double shaft take-up | |||
