Product Details:
|
| Color: | Sky Blue | Name: | Electric Wire Making Machine |
|---|---|---|---|
| Application: | Silver Jacketed Wires | Core Wire Single Wire Dia(mm): | Φ0.5～3.0 |
| Advantage: | Fast | Pitch(mm): | 11.6-100(34 Classes) |
| High Light: | wire extrusion machine,wire stranding machine | ||

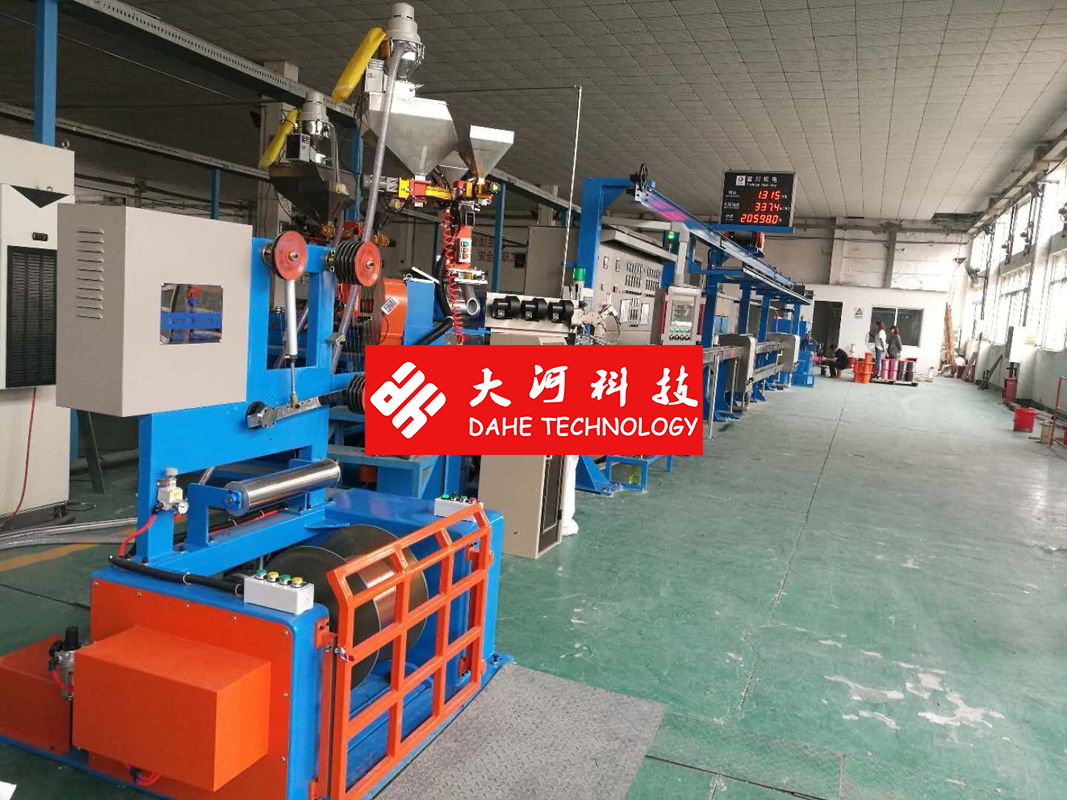

Fast Electric Wire Making Machine / Sky Blue Cable Extrusion Machine
Electric Wire Extruder Machine Quick detail :
Electric Wire Extruder Machine apply for drawing and extrude BV building wire,LAN cable and local cable.Merits: 1. Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor. 2. The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.
Electric Wire Extruder Machine Specification:
| Equipment usage | BV building wire | LAN cable-2 |
| Inlet copper wire diameter | Φ2.5～3.0mm | Φ2.5-3.0mm |
| Outlet copper wire diameter | Φ0.8～1.78mm | Φ0.4-0.9mm |
| Extrusion finished wire diameter | Φ2.0～5.0mm | Φ0.7-1.5mm |
| max speed | 300 | 1200 |
| max die number | 17 | 17 |
| Mechanical reduction ratio | 20% | 20% |
| Capstan reduction ratio | 15% | 15% |
| drawing power | 45KW | 45KW |
| Annealing type | DC 3phase | DC 3phase |
| Wire accumulator rack | Vertical accumulator | Vertical accumulator |
| Extruder main machine | 70 | 65 |
| Injection machine | 45Horizontal injection machine | 35Horizontal injection machine |
| Extruder main machine power | 22KW | 22KW |
| Printer | Double head printer | Single head printer |
| Cooling water tank | Double layer | Double layer |
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45-60 days after receive the downpayment
Origin:
China
Minimum order:
1set
