Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Name: | Wire Extrusion Machine |
|---|---|---|---|
| Feature: | Low Noise | Control: | PLC Control |
| Power: | 45KW | Controller: | PLC Touch Screen Controller |
| High Light: | wire extrusion machine,wire stranding machine | ||

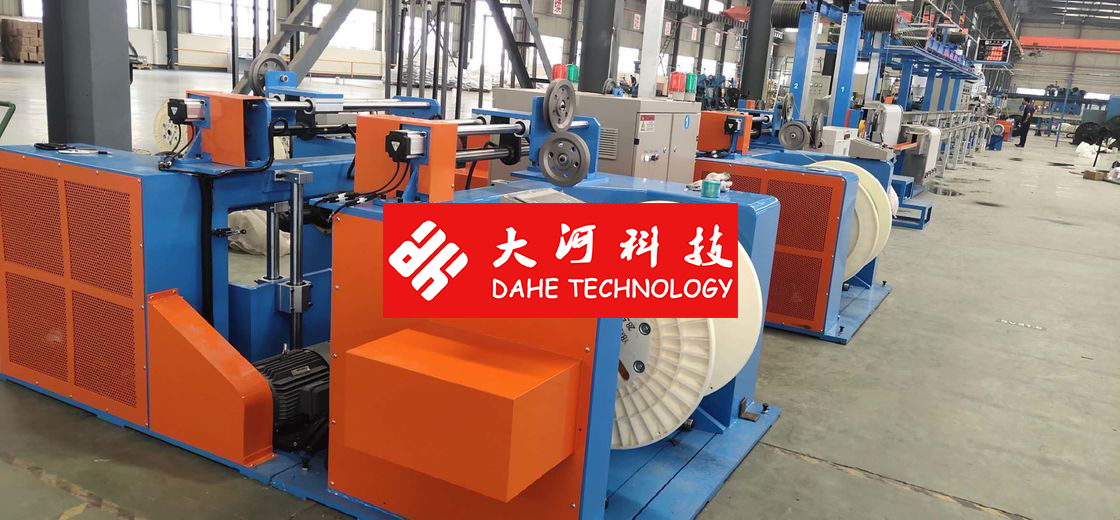

PLC Control Wire Extrusion Machine , Electric Cable Making Machine 45KW
Wire Extrusion Machine Specification:
| Equipment usage | BV building wire | LAN cable-2 |
| Inlet copper wire diameter | Φ2.5～3.0mm | Φ2.5-3.0mm |
| Outlet copper wire diameter | Φ0.8～1.78mm | Φ0.4-0.9mm |
| Extrusion finished wire diameter | Φ2.0～5.0mm | Φ0.7-1.5mm |
| max speed | 300 | 1200 |
| max die number | 17 | 17 |
| Mechanical reduction ratio | 20% | 20% |
| Capstan reduction ratio | 15% | 15% |
| drawing power | 45KW | 45KW |
| Annealing type | DC 3phase | DC 3phase |
| Wire accumulator rack | Vertical accumulator | Vertical accumulator |
| Extruder main machine | 70 | 65 |
| Injection machine | 45Horizontal injection machine | 35Horizontal injection machine |
| Extruder main machine power | 22KW | 22KW |
| Printer | Double head printer | Single head printer |
| Cooling water tank | Double layer | Double layer |
| Capstan | 510Double wheels | 410double wheels |
| Wire accumulator | Horizontal | Horizontal |
| Take up machine | Shaft or coiling machine | Shaft |
