| Color: | Sky Blue | Pay Off Bobbin: | Diameter 500/630/800/1000mm |
|---|---|---|---|
| Material: | PVC,PP,PE,SR-PVC | Wire: | Sheathed Wire/ Insulated Wire |
| Also Wire: | LSZH,LSOH,HFFR,XLPE | Pay Off Type: | Active Type |
| Screw Dia: | 70 | ||
| High Light: | plastic extrusion equipment,single screw extruder | ||
PVC ,SR - PVC Plastic Extrusion Machinery Insulating Wire Extruder Line
Serial insulating production line
Usage:
It is applied to drawing and extrude BV building wire, LAN cable and local cable.
Merits:
Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor.
The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.

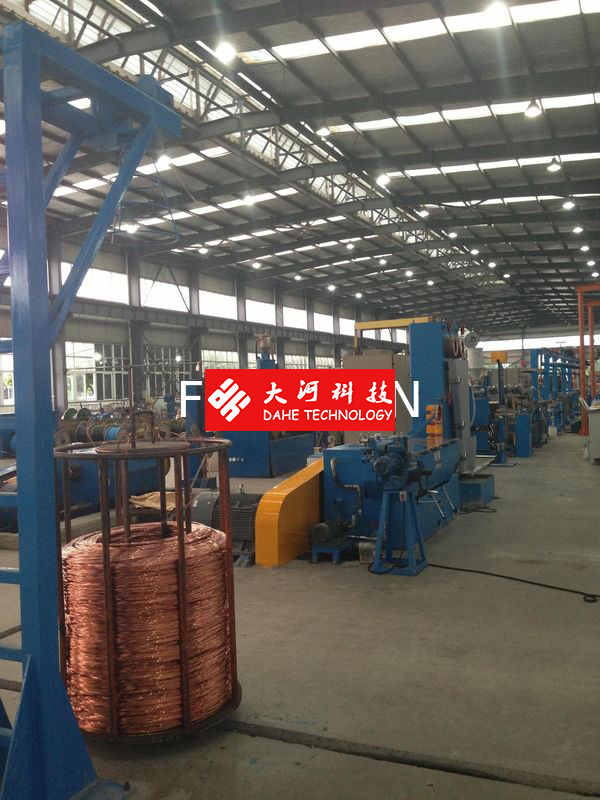

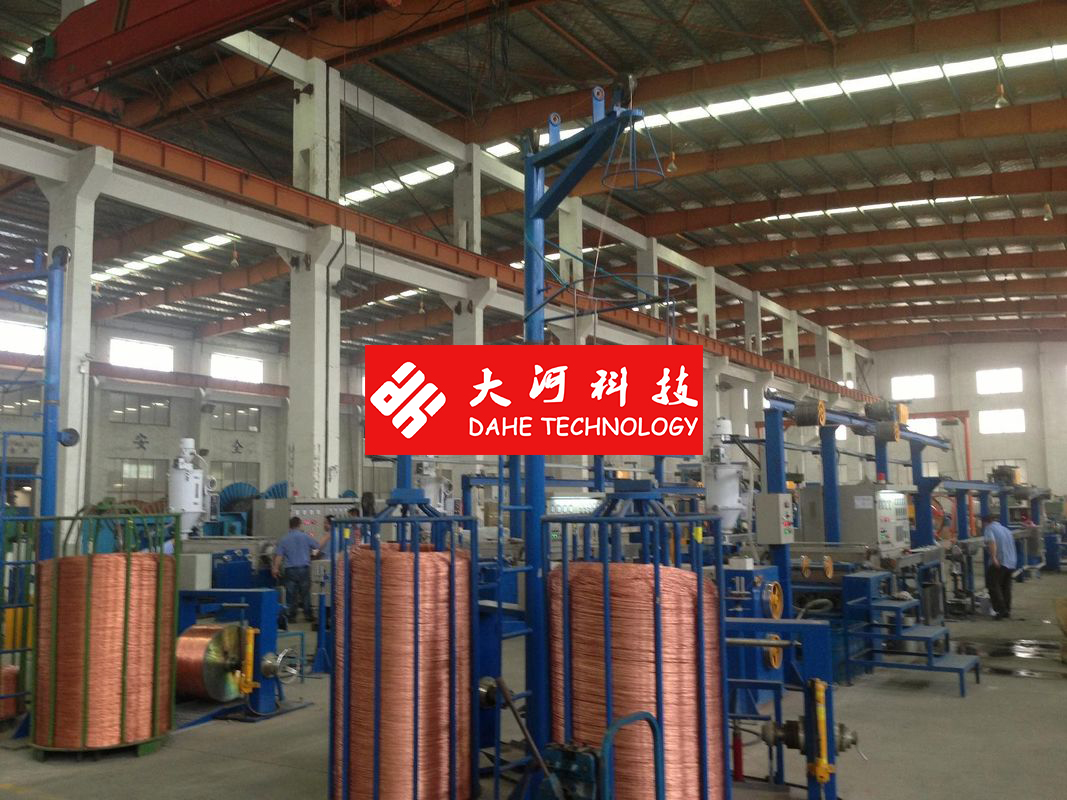

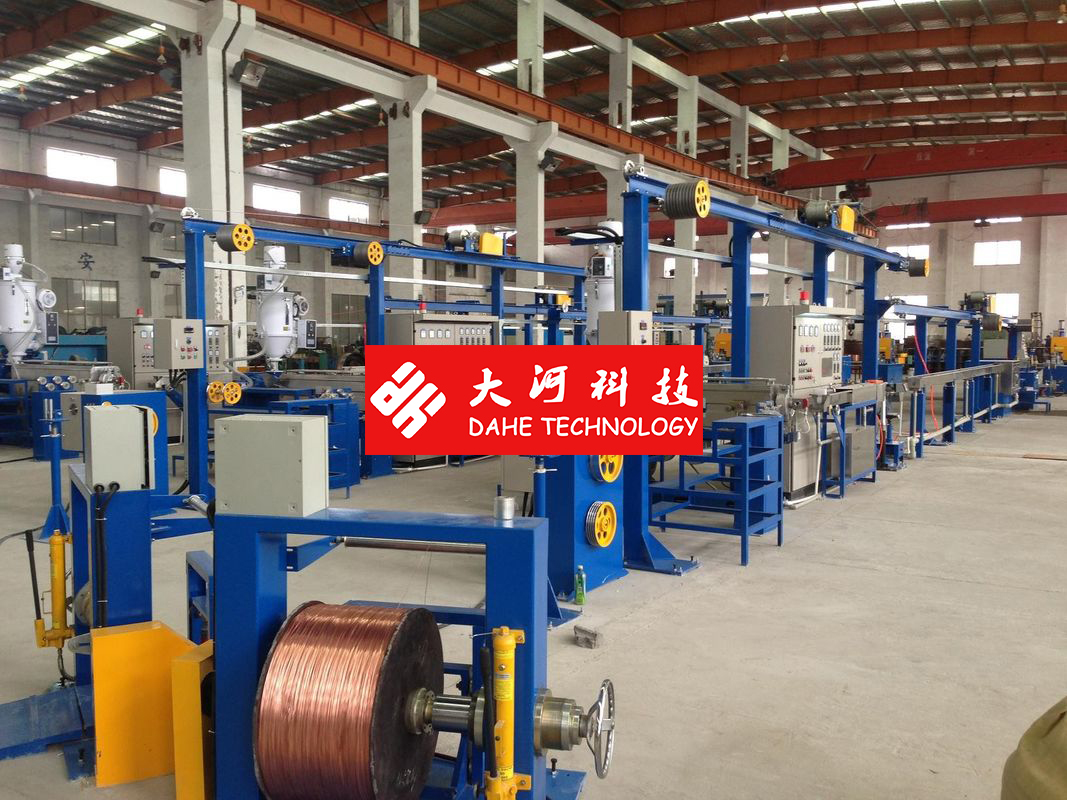

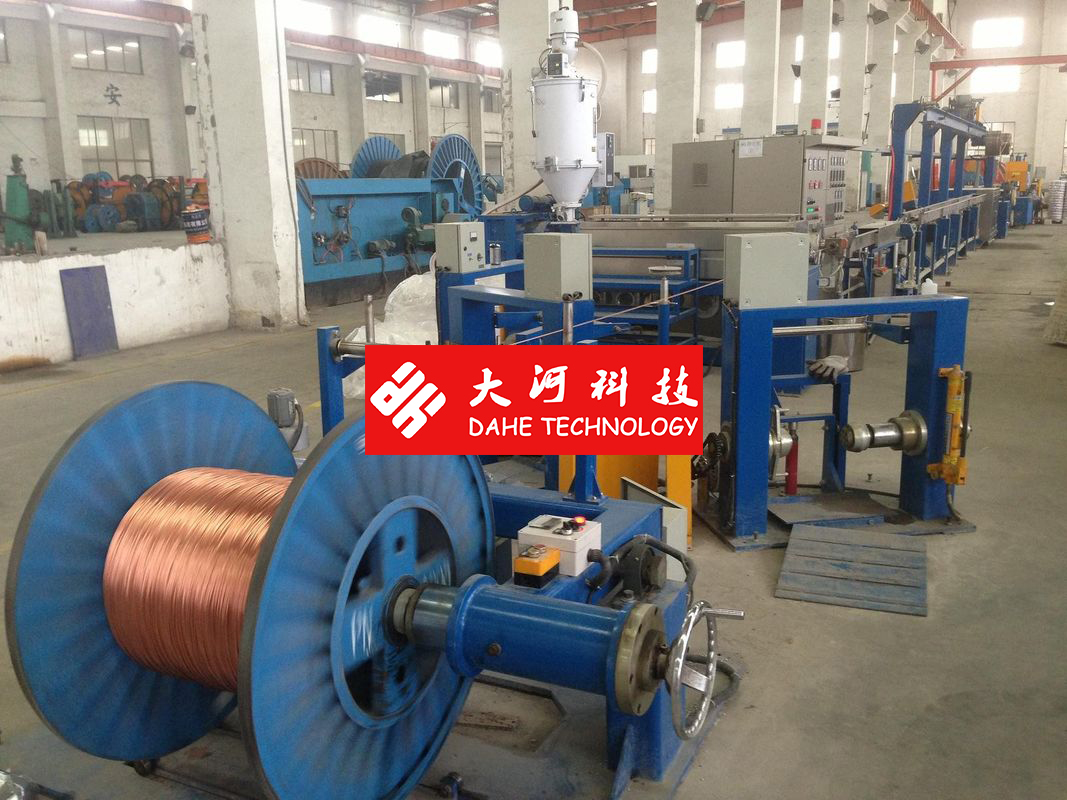

Device structure: drawing machine, annealing machine, extruder, take-up machine, tester and other equipments.
Usage | BV building wire |
Inlet copper wire diameter | Φ2.5-3.0mm |
Outlet copper wire diameter | Φ0.8-1.78mm |
Extrusion finished wire diameter | Φ2.0-5.0mm |
Max speed | 300 |
Max die number | 17 |
Mechanical reduction ratio | 20% |
Capstan reduction ratio | 15% |
Drawing machine power | 45KW |
Annealing type | DC 3phase |
Accumulator | Vertical accumulator |
Extruder main machine | DHT-70 |
Injection machine | 45horizonal injection machine |
Extruder main machine power | 22KW |
printer | Double printer |
Cooling tank | Double layers |
Capstan | 510double wheels |
Accumulator | horizonal |
Take up | Shaft or coiling machine |
