Product Details:
|
| Color: | Sky Blue | Pay Off Bobbin: | Diameter 500/630/800/1000mm |
|---|---|---|---|
| Material: | PVC,PP,PE,SR-PVC | Wire: | Sheathed Wire/ Insulated Wire |
| Also Wire: | LSZH,LSOH,HFFR,XLPE | Pay Off Type: | Active Type |
| Screw Dia: | 70 | Screw Ratio: | 25:1 |
| Capstan Power: | 5.5kw | ||
| High Light: | wire cable machine,plastic extrusion equipment | ||

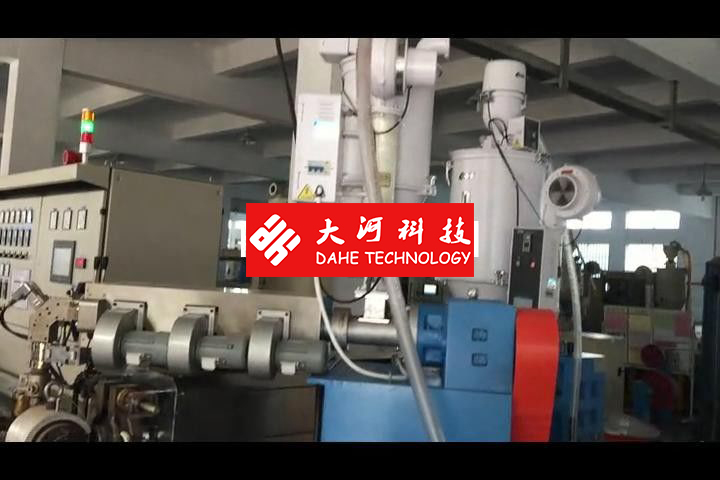

DHT-90 High Speed Extrusion Line
Quick detail :
Application: for PVC,low-smoking non-halogen and other material of wire insulation and sheathing line.
Characteristics:
A. Wire and Cable Size :Inlet bunched conductor:φ6.0mm~φ28.0mm
outlet diameter after sheathing: φ8.0mm~φ30.0mm
B. Wire Speed: 80m/min
C. Machine centre height: 1000mm
D. Line direction:Right to Left or Left to Right-----confirmed by the buyer.
E. Machine color:
F. Machine Body: Sky Blue Control Box: Computer White (RAL7035)
Safe color:Yellow(RAL1021)
Detail construction of machines:
| Name | unit | Note |

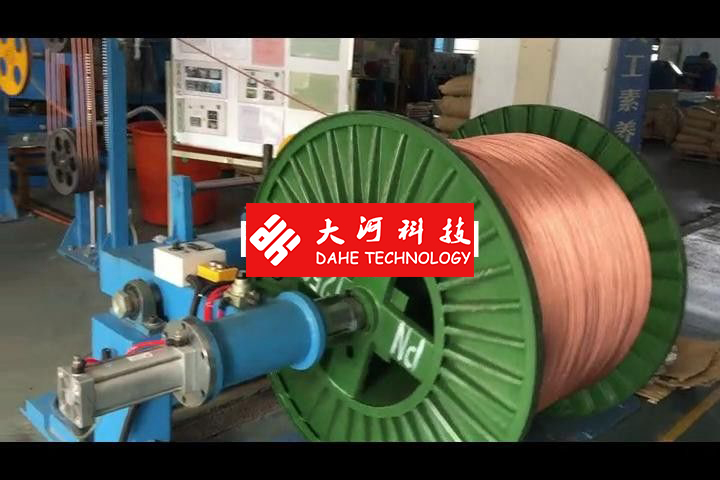

| 1.∮1600 Big Shaft Magnetic Pay-Off Machine | Set | DAHETEC 630mm-800mm-1000mm |
| 2. 800KG Caterpillar | Set | DAHETEC made |
| 3. Wire straightening device | Set | DAHETEC made |

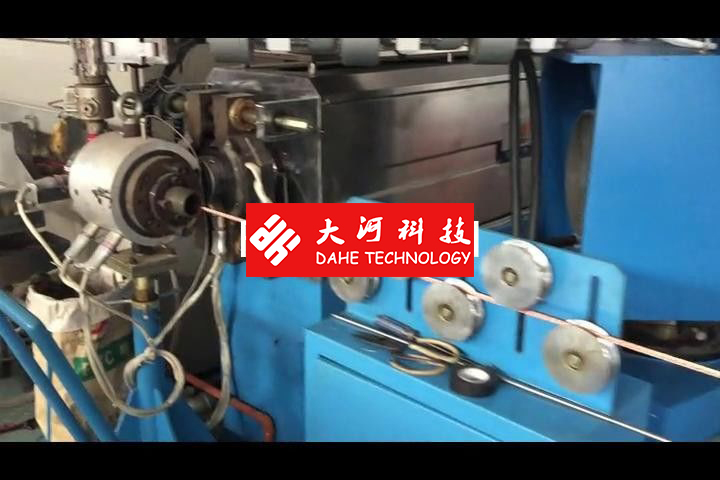

| 4.∮90mm main Extruder (pressure sensor included) | Set | Contain PVC. TPEscrew 1 piece-made in Zhejiang |
| 5.low-smoking non halogen screw rod | set | |
| 6.X9 adjustable | pcs | ShangHai |
| 7. 200KG Hopper & Dryer | set | Made in Taiwan |
| 8. Vacuum intake | set | Made in Taiwan |
| 9. 2.5 meters movable water cooling tank | set | DAHETEC made for cooling |
| 10.water blower | set | |
| 11.jet-spraine machine | set | Cuostomer provide |

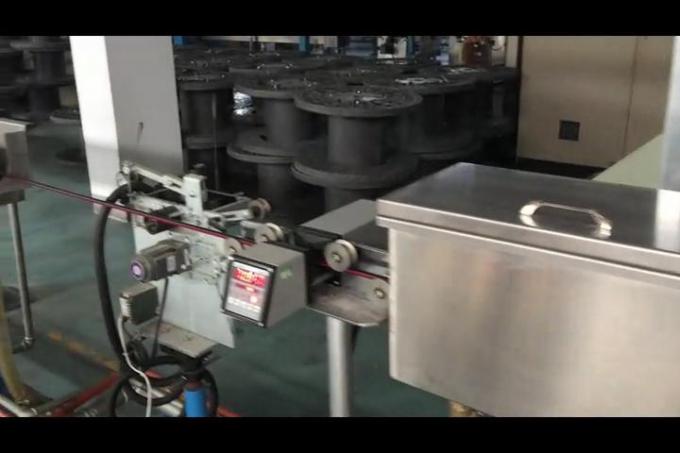

| 12. 2050 Diameter measure device | Set | ShangHai on-line |
| 13. Spark Tester | Set | ShangHai on-line |
| 14. High Speed Printing machine | Set | DAHETEC made |

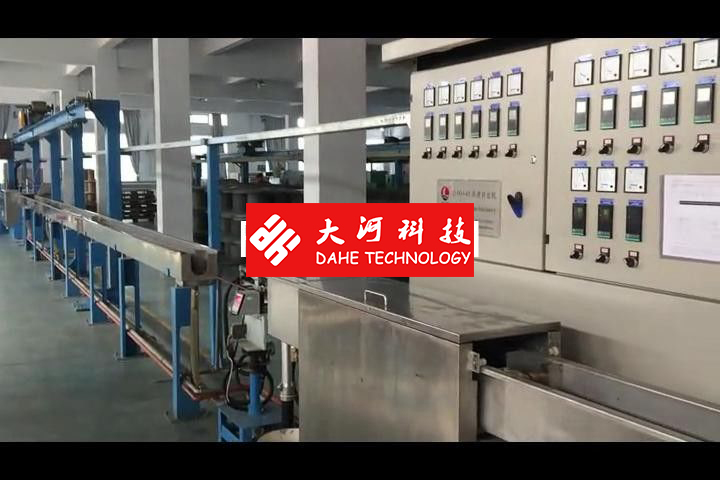

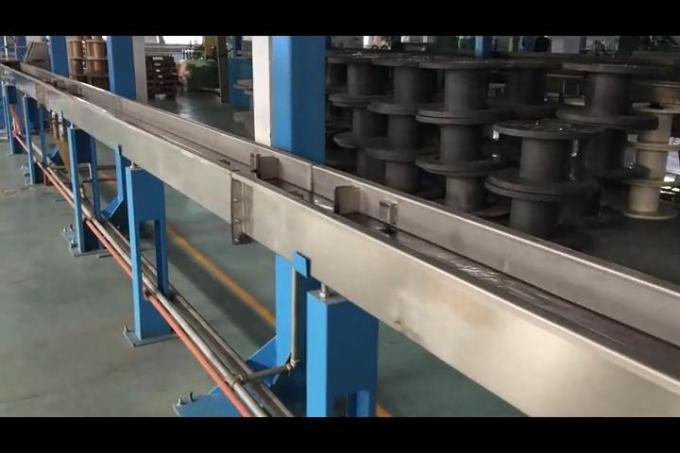

| 15. 16 meters single layer cooling water tank | Set | DAHETEC made |
| 16. 1250KG Caterpillar | set | DAHETEC made |
| 17. 159 Meter Counter | Set | DAHETEC made |
| 18.1600 Big Shaft Take-up Machine | DAHETEC made | |
| 19. Driving control | DAHETEC made |
Other information:
Terms of payment:
FOB Shanghai
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
