Product Details:
Payment & Shipping Terms:
|
| Material: | SR-PVC, PE, PP, PVC And Other Plastic | Screw Dia: | 80 |
|---|---|---|---|
| Feed Wire Type: | 500-630 Active Pay Off Or Lut Barrel Pay Off | Outlet Speed: | 0-1000m/min |
| Hauling Power: | 5.5 KW | Extrusion Output: | 240 KG/H |
| High Light: | wire cable machine,plastic extrusion equipment | ||
DAHETEC PVC Extrusion Machine , Wire Insulated And Sheathed Production Line
Quick detail :
Applied to SR-PVC, PE, PP, PVC and other plastic material for the automobile wire,insulated jacketed.
Specification:

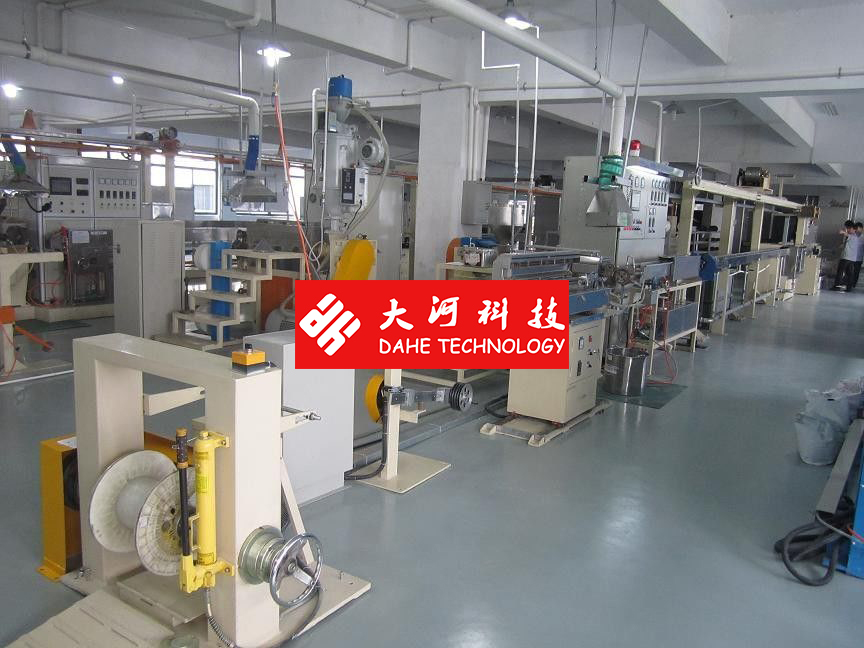

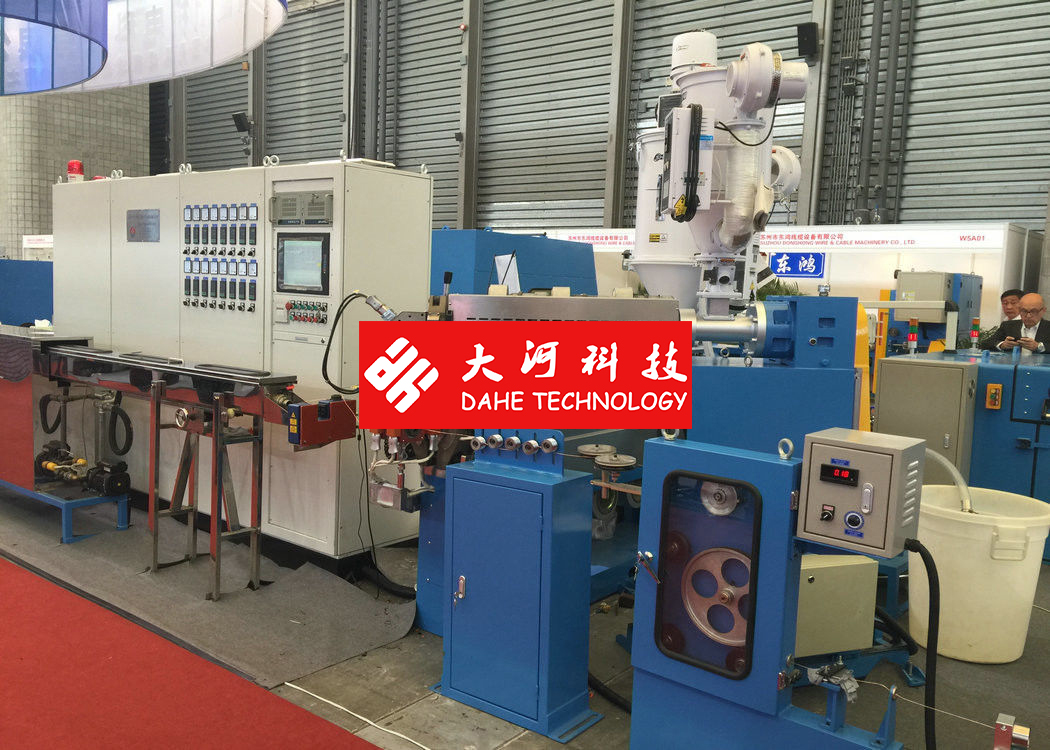

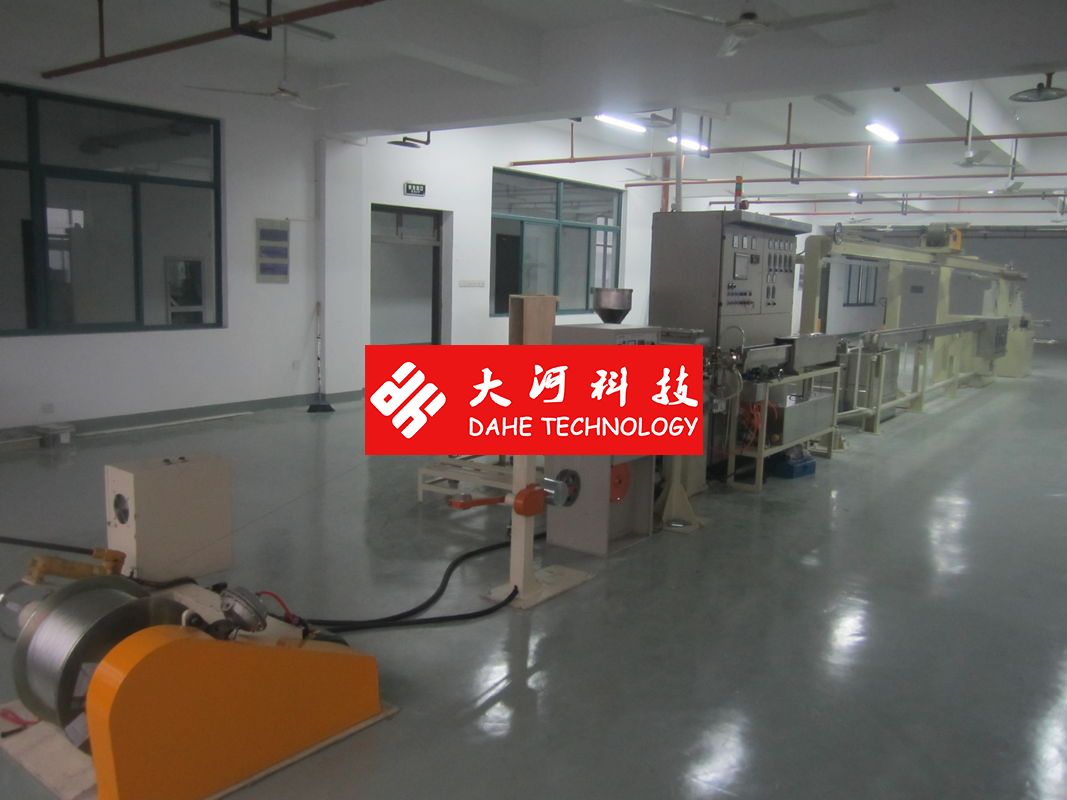

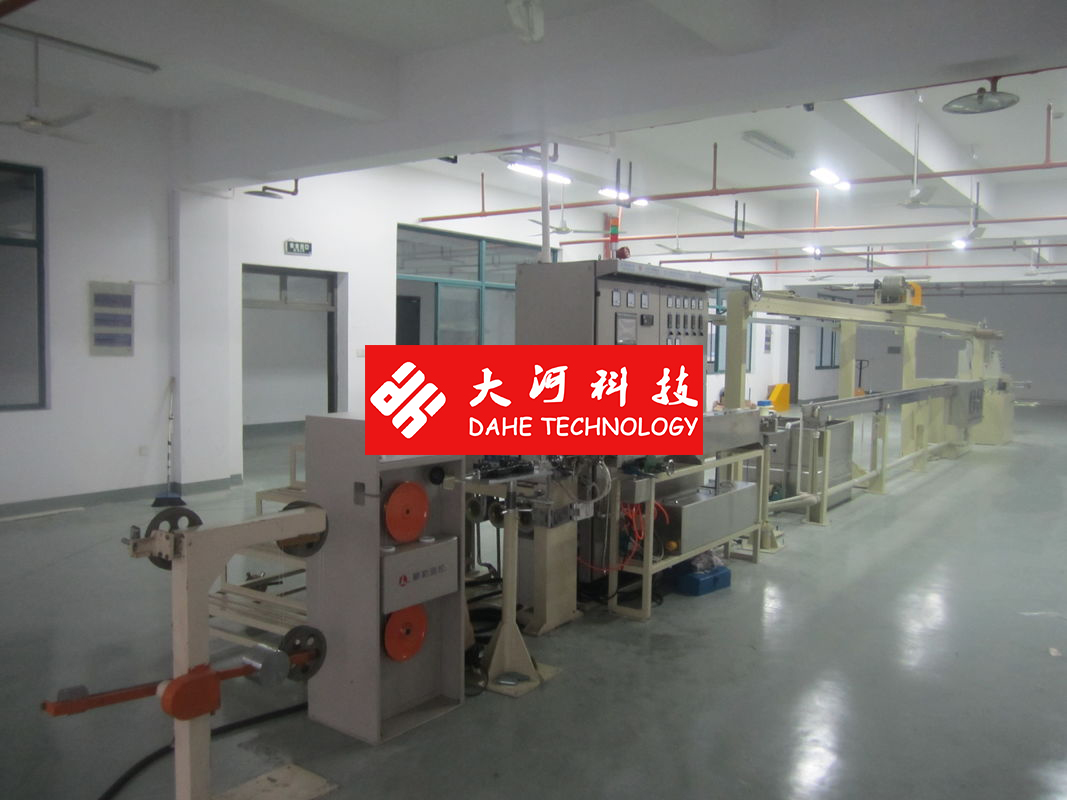

This production line contains:lut barrel pay off machine,straighten,main machine,injection machine,control case,tank,double wheel capstan,accumulator,double shaft take up and other equipments.The chosen equipments:copper wire preheater,printer,OD measuring instrument,spark tester and PLC control.
| Equipment type | 60+35 | 70+35 | 80+35-2 |
| Pay off type | 500-630active pay off or lut barrel pay off | ||
| Screw dia(mm) | 60 | 70 | 80 |
| screw ratio | 26:1 | 26:1 | 26:1 |
| extrusion output(kg/h) | 120 | 170 | 240 |
| main machine power(kw) | 22 | 30 | 45 |
| wire specification(mm) | Φ0.8-5.0 | Φ1.0-6.0 | Φ1.5-8 |
| cooling device | Double layer model U | Double layer model U | double layer model U |
| max wire accumulator length(mm) | 300 | 300 | 300 |
| hauling power(kw) | 3.7 | 5.5 | 5.5 |
| outlet speed(m/min) | 0-800 | 0-800 | 0-1000 |
| take up type | 1246 automatic coiling machine,The plum blossom falls barrel machine,shaft type | ||
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
Contact Person:Mr. Martin
Tel:+86-13827252427
Fax:86-769 8978 6861
