Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Pay Off Bobbin: | Diameter 500/630/800/1000mm |
|---|---|---|---|
| Material: | Low Smoking Non-halogen Flameresistant | Screw Dia: | 70 |
| Plastic: | Electric Power Wire/ PU/NYLON Wire | Max Speed: | 500m/min |
| Feed Wire Type: | Active Pay Off Or Tension Pay Off | Main Machine Power: | 22kw |
| Screw Ratio: | 25:1 | Control Mode: | Computer Control |
| Fit For Wire: | Core Wire Or Sheathed Wire | ||
| High Light: | plastic extrusion machinery,pvc extruder machine | ||

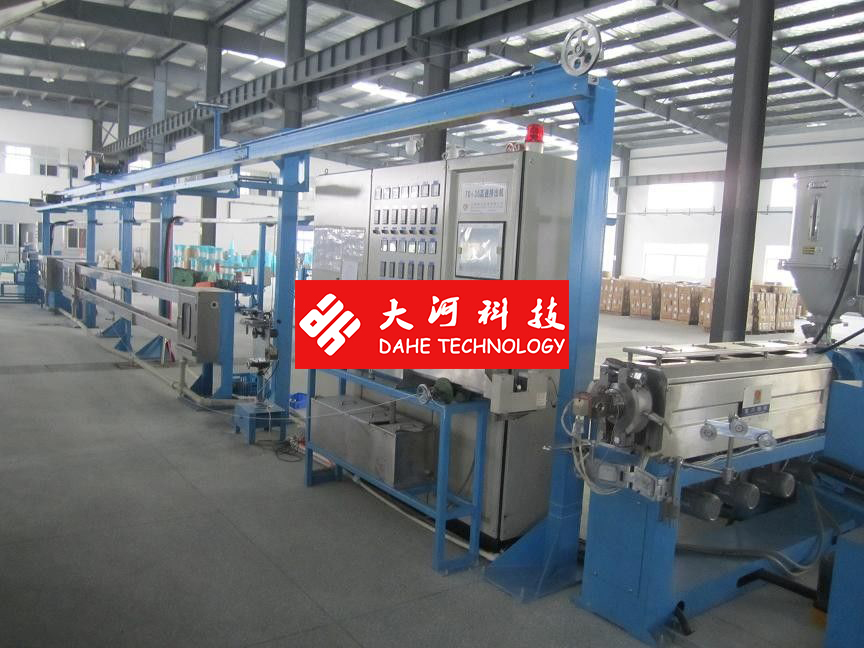

Φ70high speed extrusion machine specification:
Descriptions of machines:
1. Applied to produce PVC plastic cable wire insulating and sheath extrusion.
2. Operation direction:right machine, face the machine, left hand pay off,right hand take up.
3. Machine centre height 1000mm
4. Inlet wire diameter: φ1.38 and φ1.78mm
5. Finished wire diameter: φ2.78 and φ3.38mm；
6. Production speed:400m/min
7. Operation type:touchscreen operation
8. Machine color:main machine sky blue；cabinet computer white；Safe color:yellow
9. Customer Machine working temperature: normal 34degree,Max 40degree.
10. Power of customer plant:3phase,220V,60HZ.
Specification:
| No | Specification | number | unit | Note |

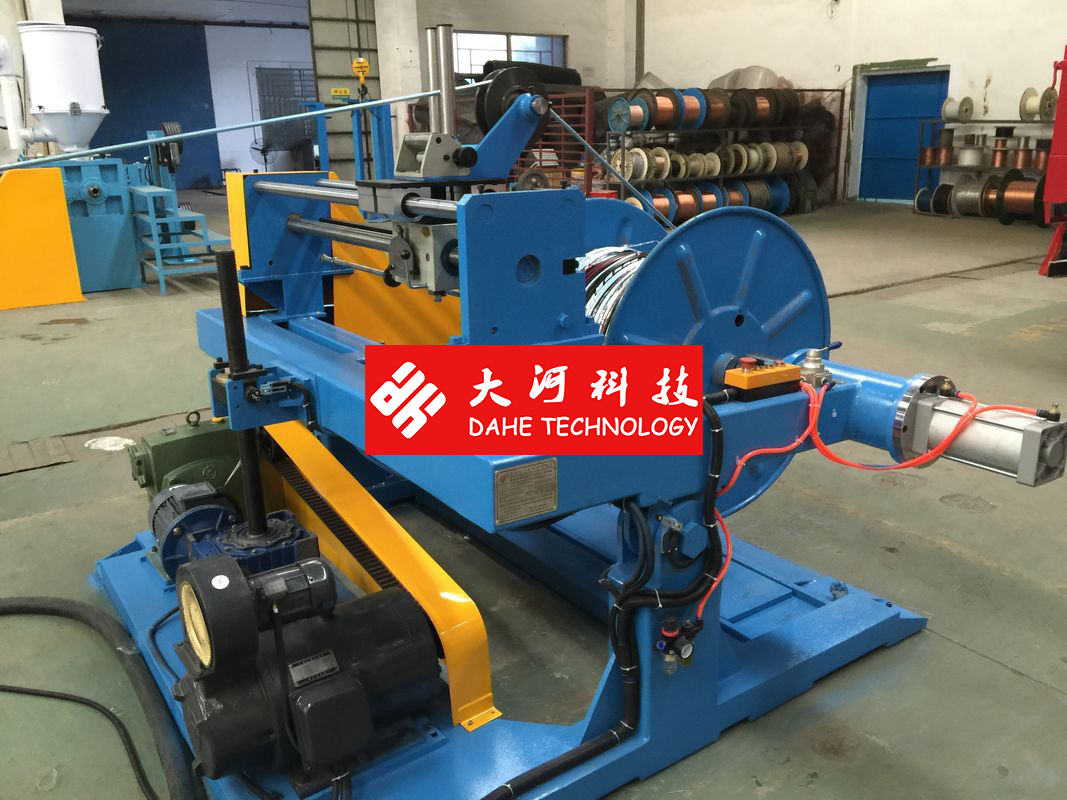

1 | 630active pay off machine | 1 | Set | DAHETEC made |
2 | 120swing tension rack | 1 | Set | DAHETEC made |

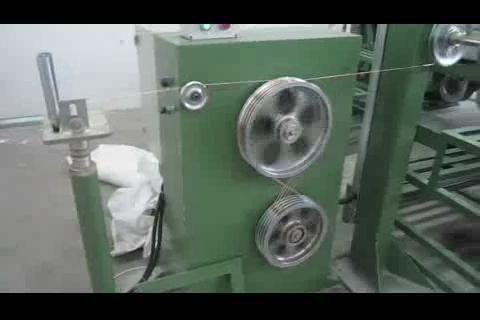

3 | Wire straighting machine | 1 | set | DAHETEC made |
4 | U7 cross head | 1 | set | For core wire |
5 | X7 adjustable head | 1 | set | For sheathing |

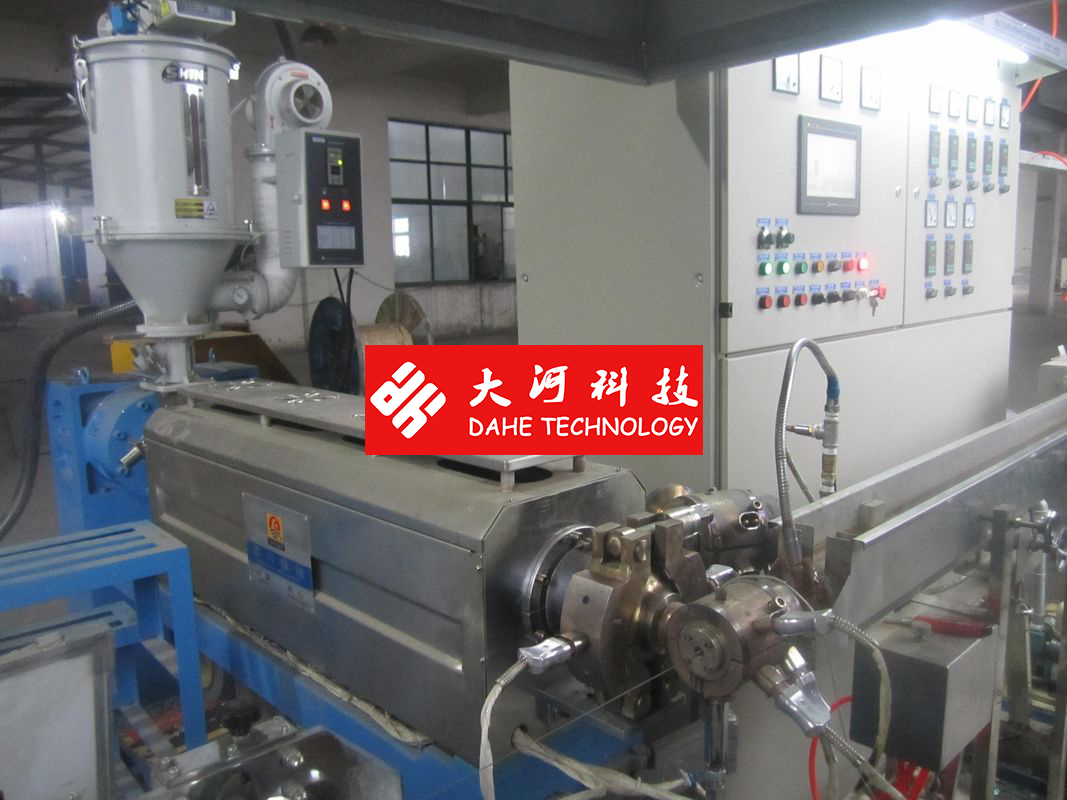

6 | ￠70 extruder | 1 | set | contains one screw |
7 | ￠40fixed injection machine | 1 | set | |

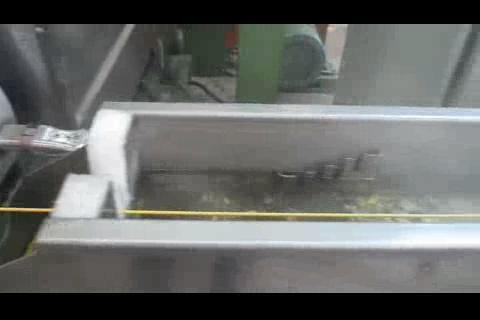

8 | 1.8 meters adjustable cooling tank | 1 | set | DAHETEC made |
9 | Diameter measure device | 1 | set | Shanghai On-line |
10 | High speed printing machine | 1 | set | DAHETEC made |
| 11 | Front 2meters back 6 meters fixed water tank | 1 | set | DAHETEC made |
| 12 | 510 rotation box | 1 | set | DAHETEC made |
| 13 | 510 hauling machine | 1 | set | DAHETEC made |
| 14 | 12 meters horizontal accumulator rack | 1 | set | DAHETEC made |
| 15 | 159 meter counter device | 1 | set | DAHETEC made |
| 16 | Spark tester | 1 | set | Tai Wan He Tai |
| 17 | 800 doubleshaft take up machine | 1 | sets | |
| 18 | 50KG dryer hopper loader(for 70 extruder) | 1 | set | Tai Wan XIN YI |
| 19 | Insuction machine(for 70 extruder) | 1 | set | Tai Wan XIN YI |
| 20 | 25KG dryer hopper loader(for 45injection ) | 1 | set | Tai Wan XIN YI |
| 21 | Insuction machine(for 45injection machine) | 1 | set | Tai Wan XIN YI |

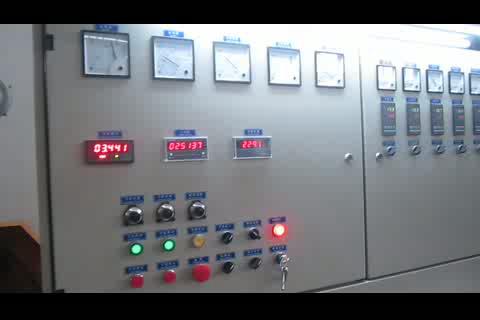

| 22 | Electrical control parts | 1 | set |
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Minimum order:
1set
Package:
With container
