| Material: | FEP/F46, FPA ,ETFE Plastic | Screw Dia: | 35 |
|---|---|---|---|
| Conductor Dia: | 0.2-1.02mm | Finished Wire Dia: | 0.6-1.67 |
| Temp Control: | Seven Zones | Screw L/D Ratio: | 25:1 |
| Pay Off Type: | Active Pay Off Or Passive Pay Off | ||
| High Light: | plastic extrusion machinery,pvc extruder machine | ||

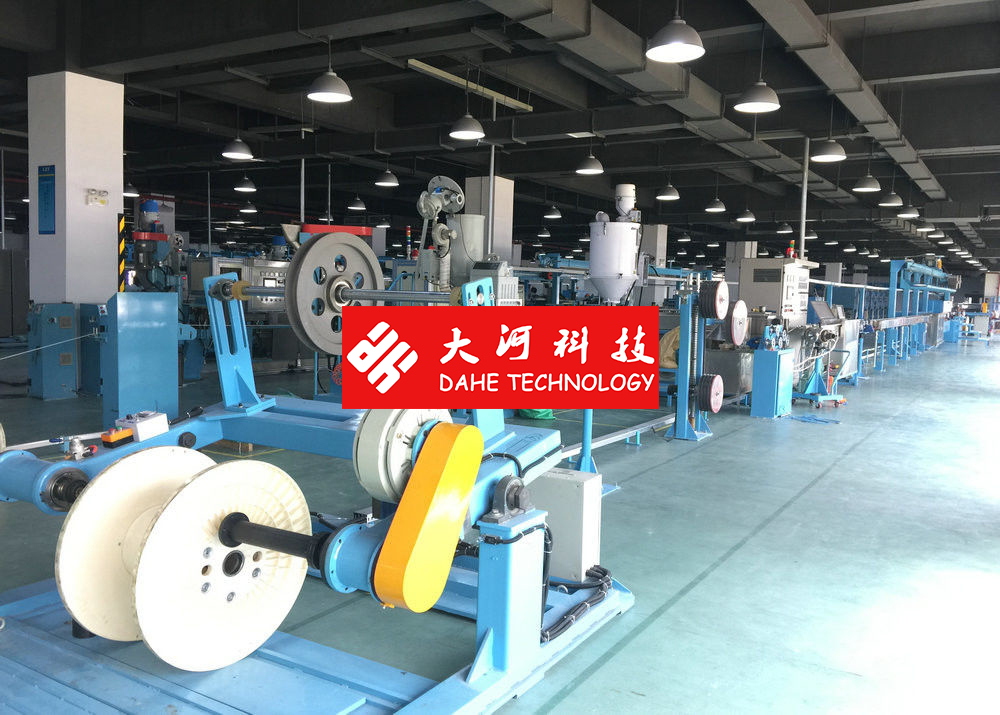

China DAHETEC F46 / FEP Plastic Extrusion Line , High temperature Extruder Line
Quick detail :
Apply for FEP(fep,say againF46),FPA(Oxidation of PVC resin silance oxygen radicals)and ETFE(say againF40)etc.fluorine plastic's production.
Specification:
| Equipment type | 35-2 | 45 | 65 |
| revolving speed of screw(mm) | φ35 | φ45 | φ65 |
| Screw L/D ratio | 25:1 | 25:1 | 25:1 |
| Extrusion output(kg/h) | 15 | 20 | 45 |
| Power for main machine(kw) | 11 | 11 | 22 |
| conductor dia(mm) | Φ0.2~1.02 | Φ0.6~2.6 | Φ1.0~5.0 |
| finished wire dia(mm) | Φ0.6~1.67 | Φ1.0~3.2 | core wireΦ1.5~6.0 sheathed wireΦ6.0~16 |
| pay off type | active pay off or passive pay off | ||
| pre-heater | 5KVA | 5KVA | 5KVA |
| Evacuating device | Vaccum generator | ||
| temp control | seven zones | seven zones | eight zones |
| diameter measure device | manual/laser automatic diameter tester device | ||
| cooling water tank | single layer or double layer U type | ||
| capstan dia(mm) | φ340 | φ410 | Φ510 |
| capstan power | 2.2KWspeed reduction motor | ||
| wire accumulator rack | horizontal type | ||
| max of accumulator length | 200M | ||
| Take-up | Biaxial rooling | ||
| take up power | 2.2KW | 2.2KW | 3.7KW |
| Total power | 38KW | 38KW | 65KW |
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45-60 days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
