Product Details:
Payment & Shipping Terms:
|
| Material: | BV Building Cable Insulating Production Line | Extruder Main Machine: | 70 |
|---|---|---|---|
| Extrusion Finished Wire Dia: | 2-5mm | Injection Machine: | 45 Horizontal Injection Machine |
| Max Speed: | 300m/mim | Max Die Number: | 17 |
| Annealing Type: | DC 3phase | ||
| High Light: | plastic extrusion machinery,pvc extruder machine | ||

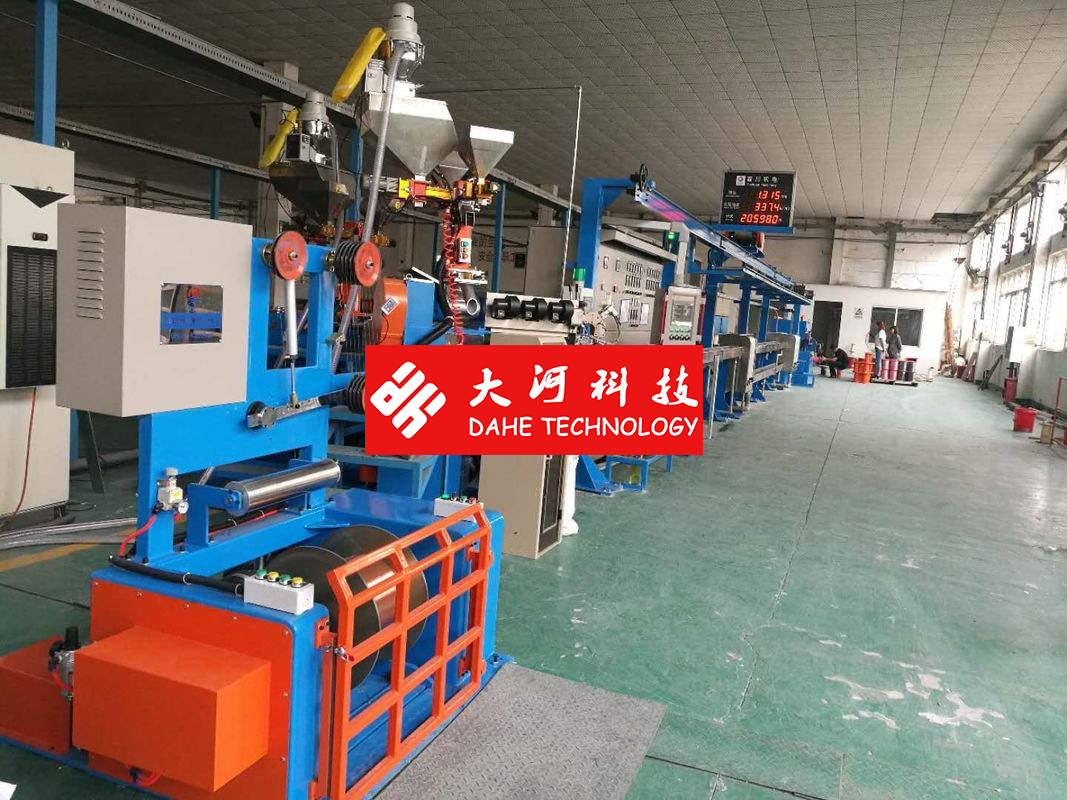

Plastic Extrusion Line For Building Wire With Drawing Inlet Dia 2.5-3mm Out Dia 0.8-1.7mm
Quick detail :
1) apply for drawing and extrude BV building wire,LAN cable and local cable.Merits: 1. Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor. 2. The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.

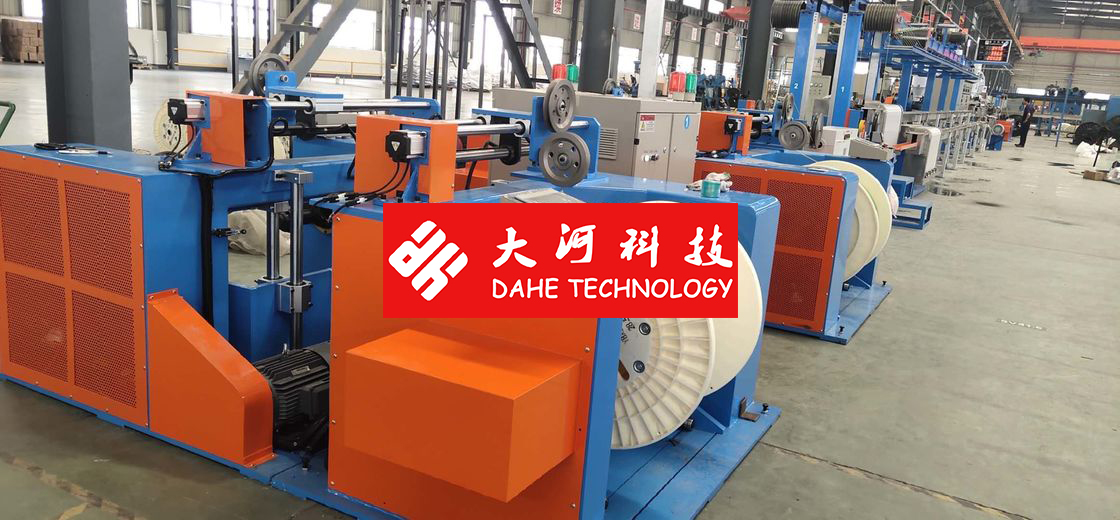

2) Device structure:drawing machine,annealing machine,extruder,take up machine,tester and other equipments.
Specification:
| Equipment usage | BV building wire-2 | LAN cable |
| Inlet copper wire diameter | Φ2.5～3.0mm | Φ2.5～3.0mm |
| Outlet copper wire diameter | Φ0.8～1.78mm | Φ0.4～0.9mm |
| Extrusion finished wire diameter | Φ2.0～5.0mm | Φ0.7～1.5mm |
| max speed | 300 | 1200 |
| max die number | 17 | 17 |
| Mechanical reduction ratio | 20% | 20% |
| Capstan reduction ratio | 15% | 15% |
| drawing power | 45KW | 45KW |
| Annealing type | DC 3phase | DC 3phase |
| Wire accumulator rack | Vertical accumulator | Vertical accumulator |
| Extruder main machine | 70 | 65 |
| Injection machine | 45Horizontal injection machine | 35Horizontal injection machine |
| Extruder main machine power | 22KW | 22KW |
| Printer | Double head printer | Single head printer |
| Cooling water tank | Double layer | Double layer |
| Capstan | 510Double wheels | 410double wheels |
| Wire accumulator | Horizontal | Horizontal |

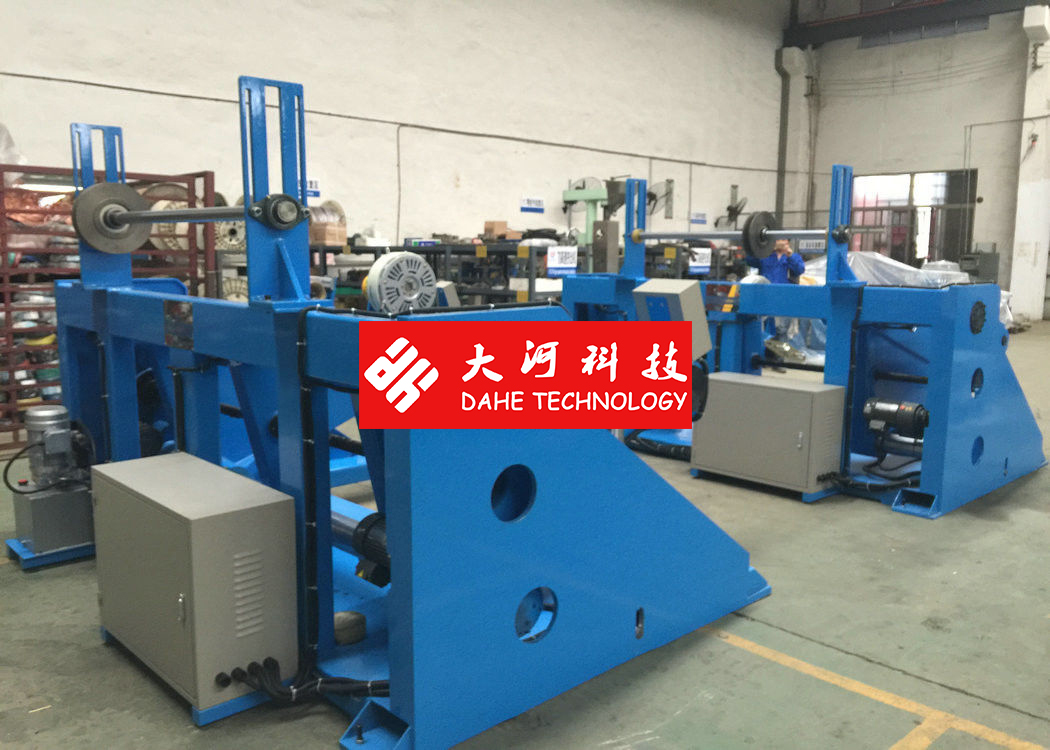

| Take up machine | Shaft or coiling machine | Shaft |
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45-60 days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
