Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue/green | Pay Off Bobbin: | Diameter 500/630/800/1000mm |
|---|---|---|---|
| Material: | FEP,FPA,ETFE Fluorine Plastic | Equipment Type: | 45 |
| Extrusion Output: | 15/20/45 | Wire Diameter: | 0.2-1.02mm |
| Extrusion: | High Temperature | ||
| High Light: | wire and cable machinery,copper wire machine | ||

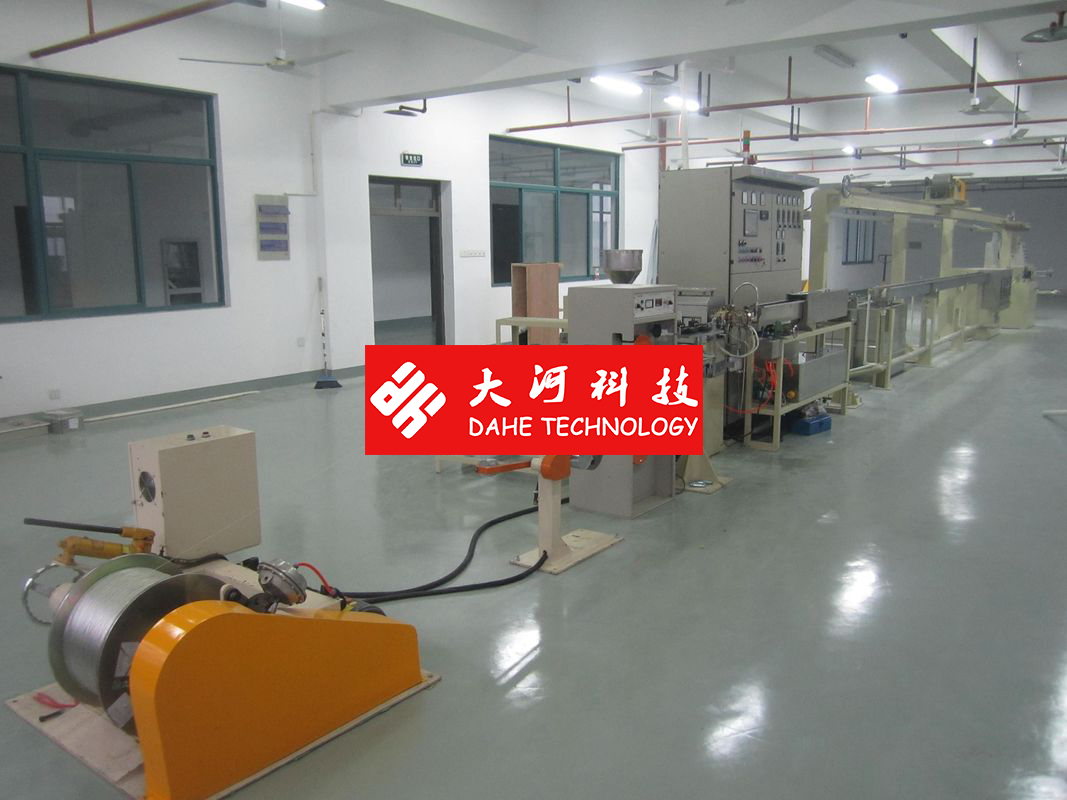

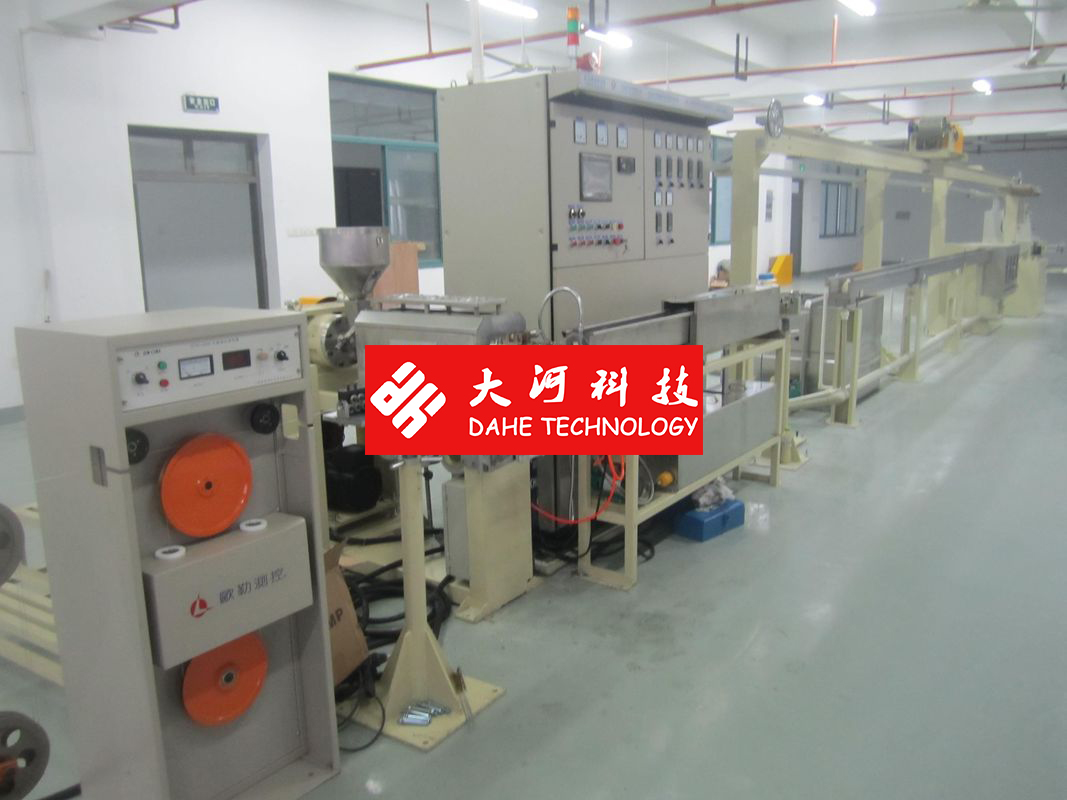

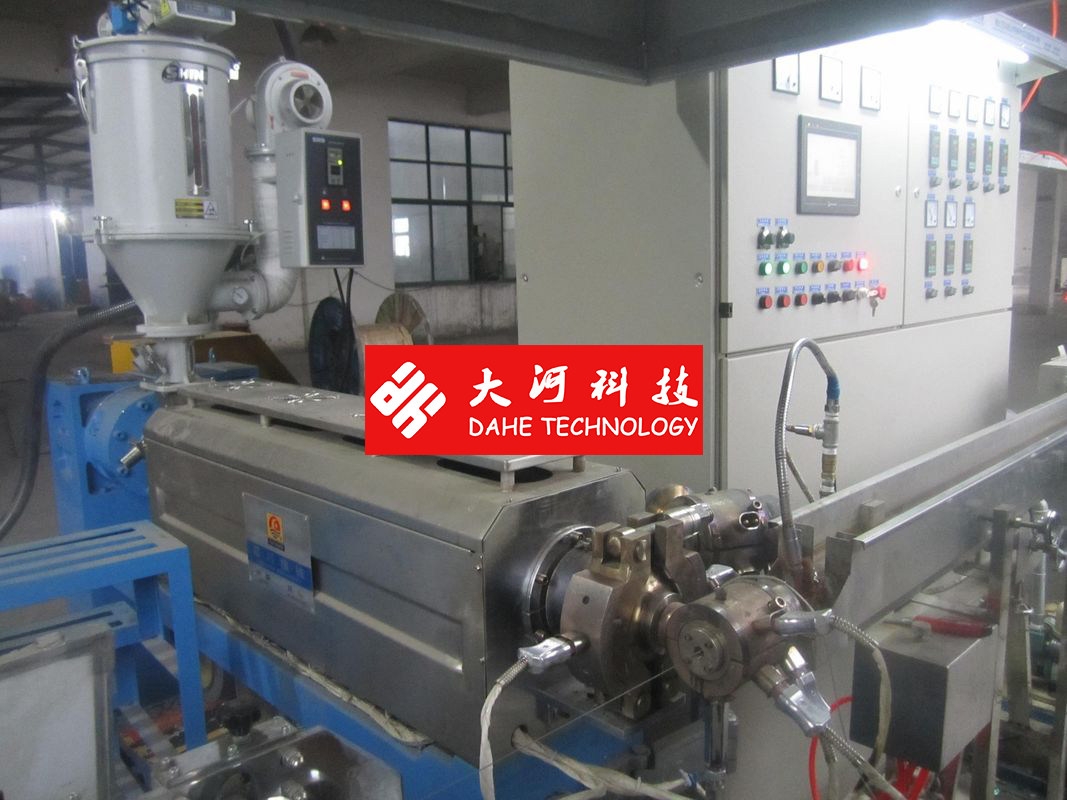

High Temperature Plastic Extruder Machine Line Horizonal Type 45 mm Screw
High temperature extruder line
It is applicable to FEP(fep,say again F46),FPA(Oxidation of PVC resin silance oxygen radicals)and ETFE(say again F40)etc,fluorine plastic’s production.
Equipment type | DHT-35 | DHT-45 | DHT-65 |
Cylinder Dia | φ35 | φ45 | φ65 |
Screw L/D Ratio | 25:1 | 25:1 | 25:1 |
Revoling speed of screw | 60RPM | 60RPM | 60RPM |
Extrusion output | 15 | 20 | 45 |
Power for main machine | 11KW | 11KW | 22KW |
Conductor diameter | Φ0.2-1.02 | Φ0.6-2.0 | Φ1.0-5.0 |
Finished wire diameter | Φ0.6-1.67 | Φ1.0-2.8 | Core wire Φ1.5-6.0,sheating wire Φ6.0-16 |
Temperature control | 7phase | 7phase | 8phase |
Pay off type | Dynamic or tension wire feeding | ||
Evacuating device | Vacuum Generator | ||
Pre-heater | 5KVA | 5KVA | 5KVA |
Diameter size meter | Manual/Laser Automatic Diameter size meter | ||
Cooling channel | Single layer or Double U type | ||
Capstan diameter | Φ340mm | Φ410mm | Φ410mm |
Capstan power | 2.2KW reduction motor | ||
Accumulator | Horizonal type | ||
Max of accumulator length | 200M | ||
Take up | Biaxial rooling | ||
Take up power | 2.2KW | 2.2KW | 3.7KW |
Total power | 38KW | 38KW | 65KW |
