Product Details:
|
| Machine Color: | Sky Blue Or Apple Green | Style: | Automatic |
|---|---|---|---|
| Fit For Bobbin: | Diameter630/800 | Lifting Type: | Electric Hydraulic Lifting |
| Power: | 5.5KW Speed Reduction Motor | Max Speed: | 400m/min |
| Screw Dia: | 90mm | Screw Ratio: | 25:1 |
| Control Type: | Computer Control Or Knob Control | ||
| High Light: | cable making machines,pvc wire making machine | ||

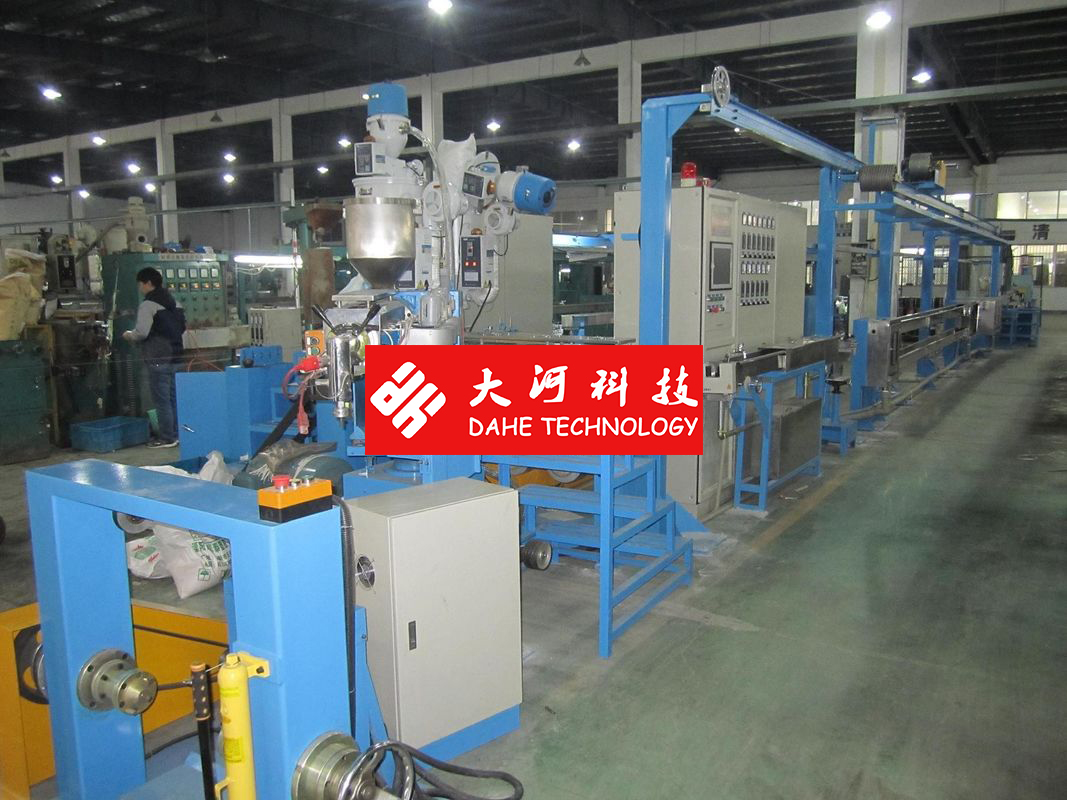

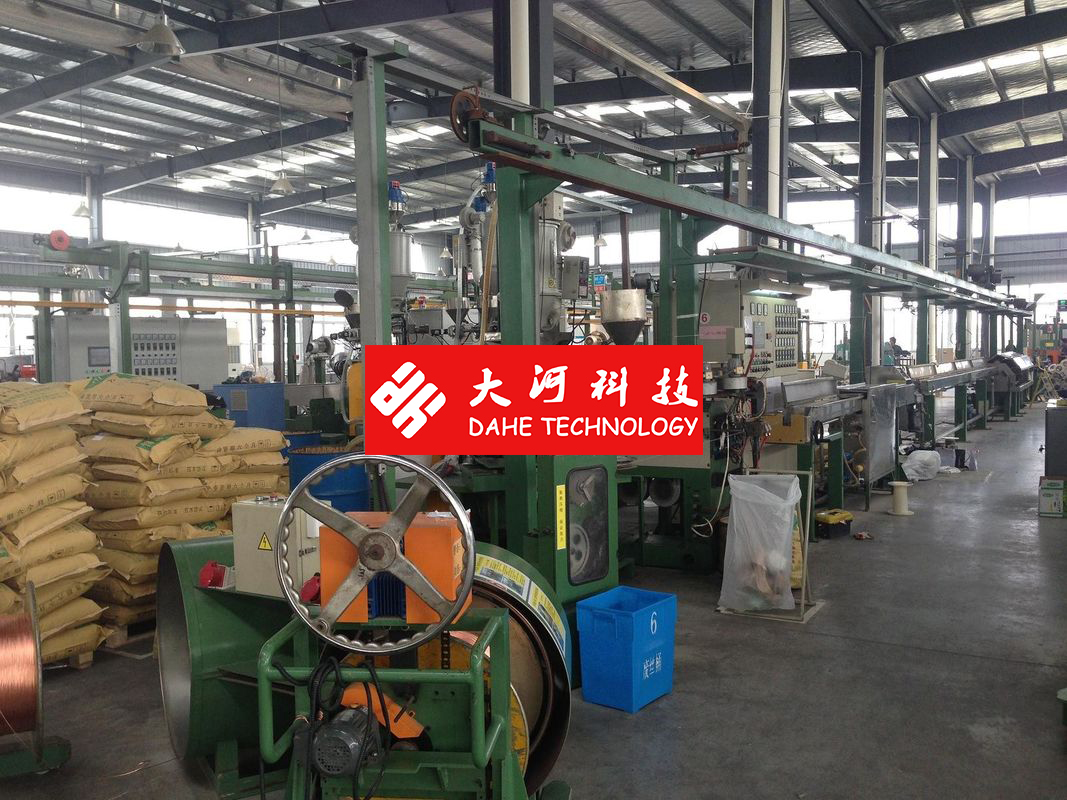

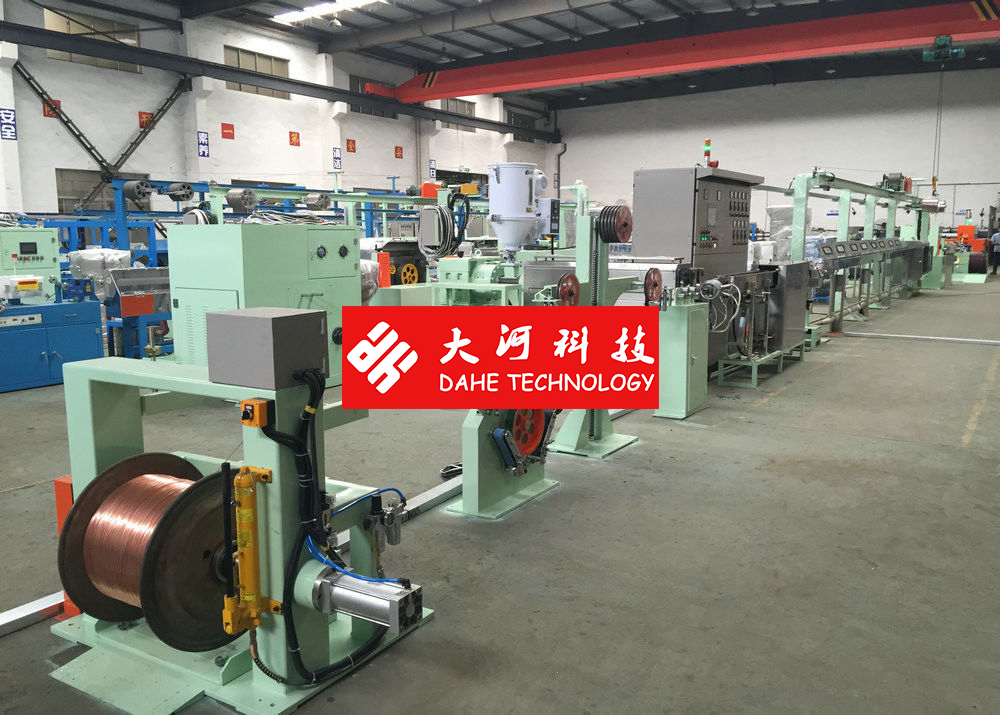

DHT-90+45 High Speed Extrusion Line
Quick detail :
Application: for PE,PVC,low-smoking non-halogen and other material of wire insulation and sheathing line
Characteristics:
1. Wire and Cable Size :Inlet bunched conductor:φ6.0mm~φ28.0mm
outlet diameter after sheathing: φ8.0mm~φ30.0mm
2. Wire Speed: 80m/min
3. Machine centre height: 1000mm
4. Line direction:Right to Left or Left to Right-----confirmed by the buyer.
5. Machine color:
6. Machine Body: Sky Blue Control Box: Computer White (RAL7035)
Safe color:Yellow(RAL1021)
7. Detail construction of machines:
Components
| Name | unit | Note |
| 1.∮1600 Big Shaft Magnetic Pay-Off Machine | Set | DAHETEC 630mm-800mm-1000mm |
| 2. 800KG Caterpillar | Set | DAHETEC made |
| 3. Wire straightening device | Set | DAHETEC made |
| 4.∮90mm main Extruder (pressure sensor included) | Set | Contain PVC. TPEscrew 1 piece-made in Zhejiang |
| 5.low-smoking non halogen screw rod | set | |
| 6.X9 adjustable | pcs | ShangHai |
| 7. 200KG Hopper & Dryer | set | Made in Taiwan |
| 8. Vacuum intake | set | Made in Taiwan |
| 9. 2.5 meters movable water cooling tank | set | DAHETEC made for cooling |
| 10.water blower | set | |
| 11.jet-spraine machine | set | Cuostomer provide |
| 12. 2050 Diameter measure device | Set | ShangHai on-line |
| 13. Spark Tester | Set | ShangHai on-line |
| 14. High Speed Printing machine | Set | DAHETEC made |
| 15. 16 meters single layer cooling water tank | Set | DAHETEC made |
| 16. 1250KG Caterpillar | set | DAHETEC made |
| 17. 159 Meter Counter | Set | DAHETEC made |
| 18.1600 Big Shaft Take-up Machine | DAHETEC made | |
| 19. Driving control | DAHETEC made |
Other information:
On terms of ; FOB Shanghai
Delivery date; 30% T/T,70% before shipment
Country of origin: China
Minimum order : 1set
Package: within container
Contact Person:Mr. Martin
Tel:+86-13827252427
Fax:86-769 8978 6861
