Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue Or Apple Green | Pay Off Bobbin: | Diameter 500/630/800/1000mm |
|---|---|---|---|
| Material: | Low Smoking Non-halogen Flameresistant | Wire: | Sheathed Wire/ Insulated Wire |
| Also Wire: | LSZH,LSOH,HFFR,XLPE | Pay Off Type: | Active Type |
| Screw Dia: | 50 60 70 80 90 | Screw Ratio: | 25:1 |
| Capstan Power: | 3.7 ~ 7.5kw | ||
| High Light: | Coil Winding Machine,pvc wire making machine | ||

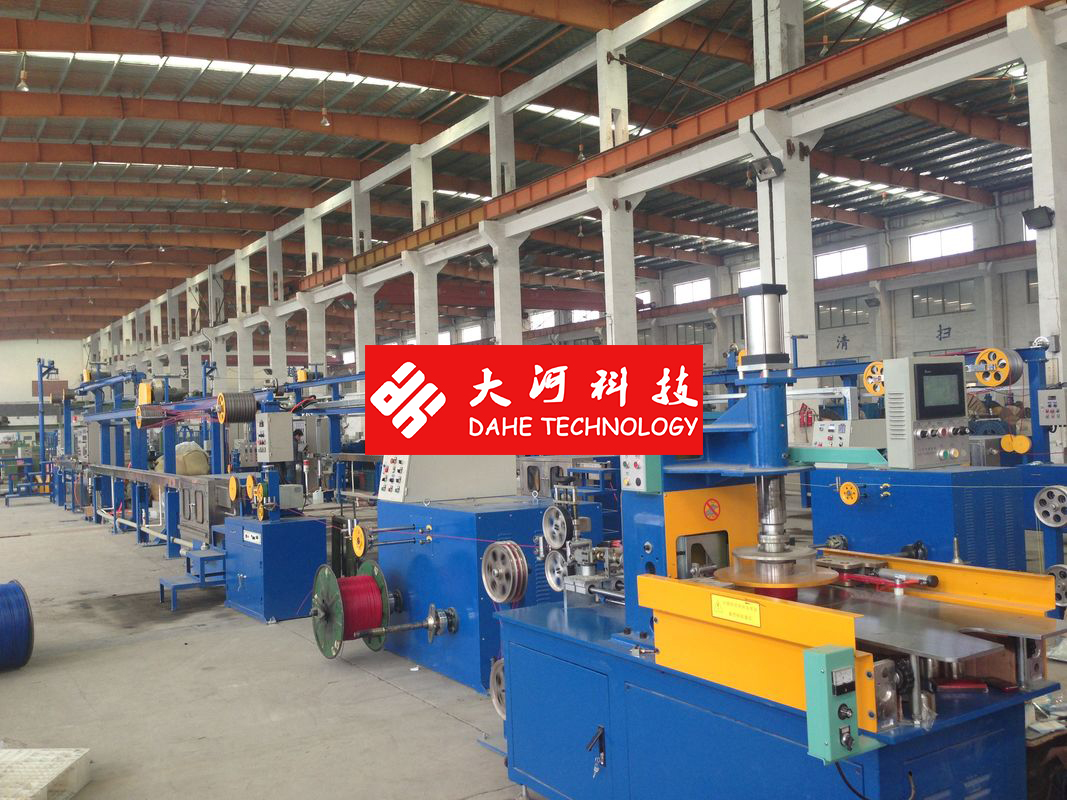

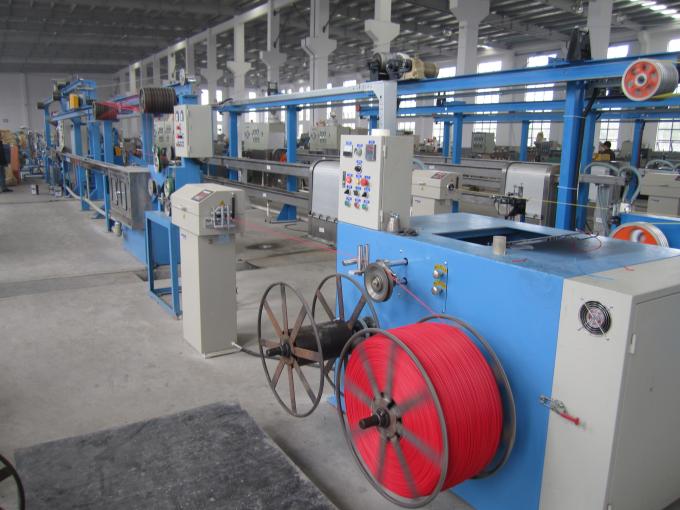

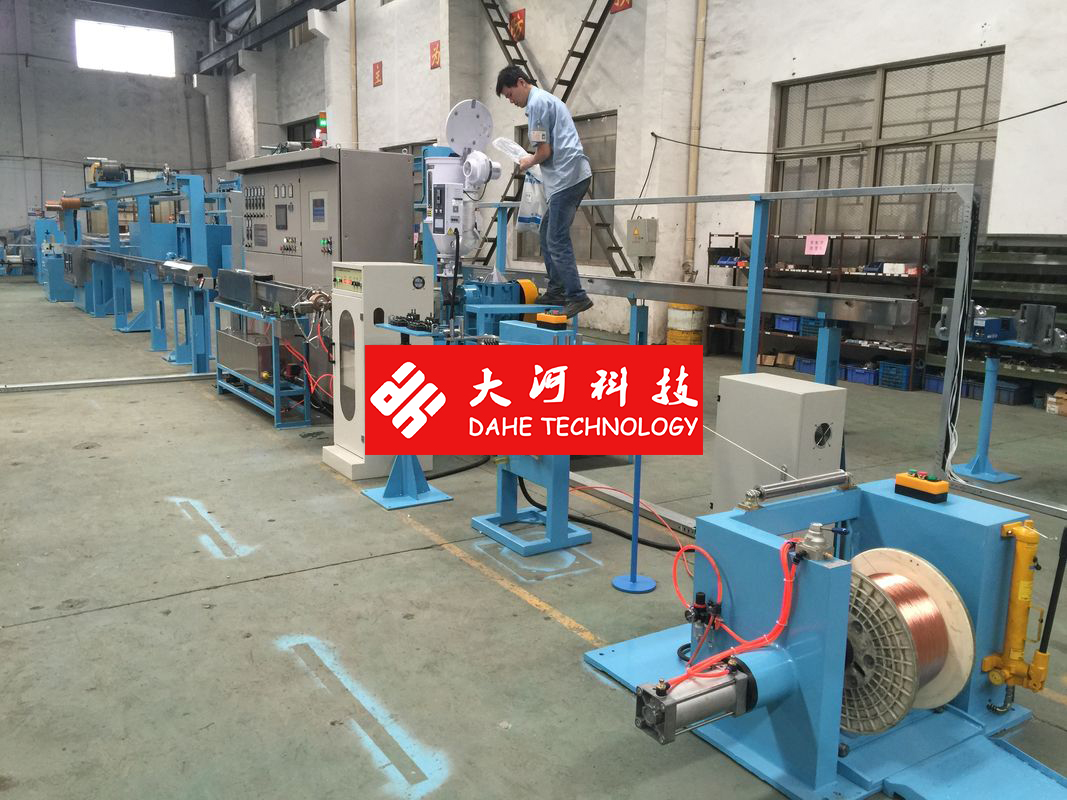

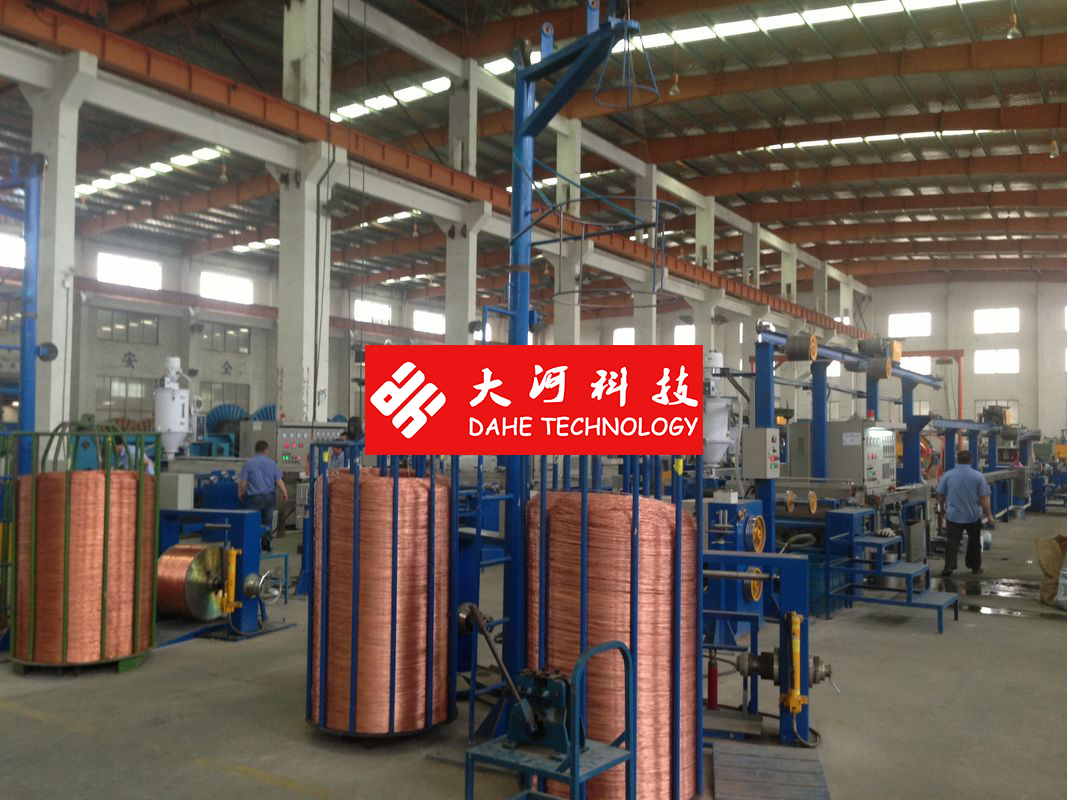

DAHETEC LOSH For Insulating and Sheating Cable Extrusion Machinery from dia 0.6 ~ 25
Quick detail :
Apply for PU PVC,low-smoking non-halogen and other material of wire insulation and sheathing line.
Also for photovoltaic extruder line

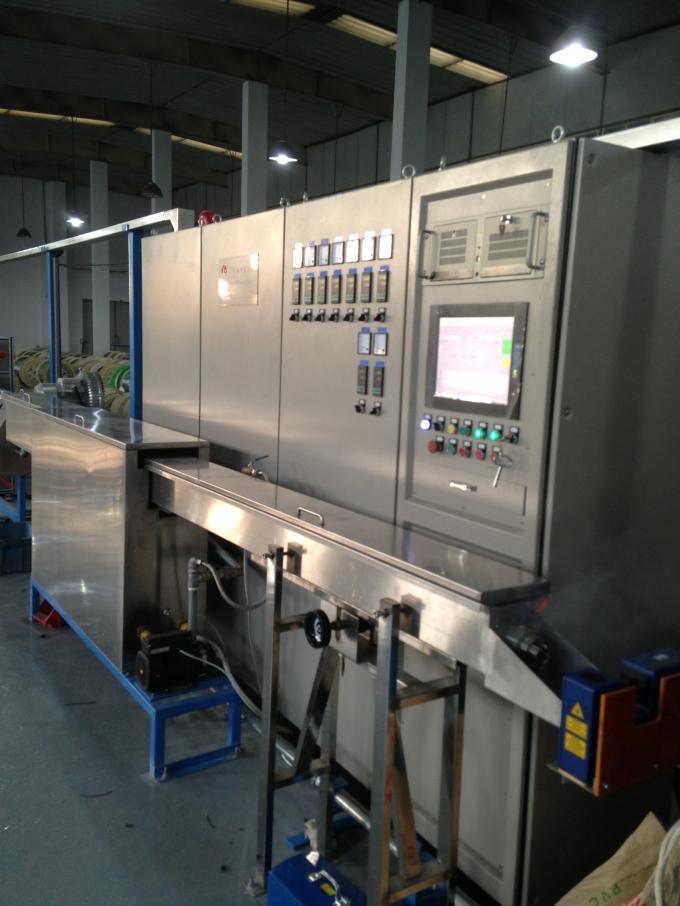

PLC control + IPC operation, display and revise technology parameters,remote control

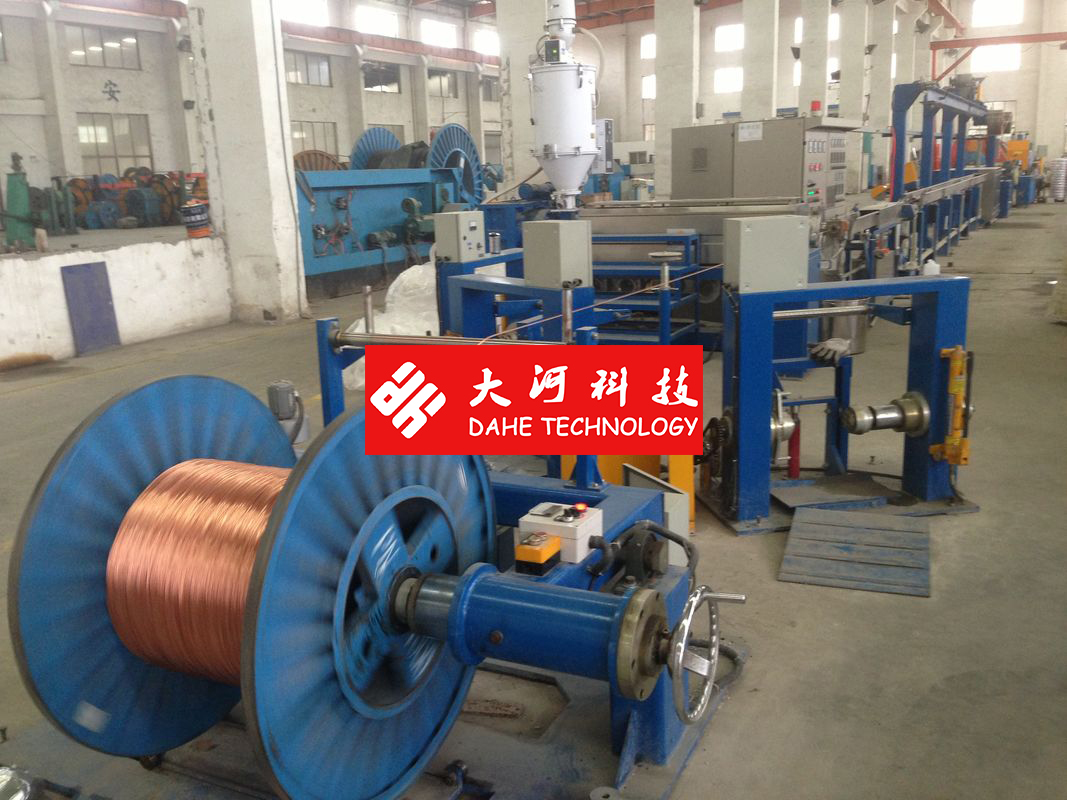

Adopt the high speed pay off bobbin device,make sure machine don’t stop to change the bobbin
1. Wire and Cable Size :Inlet bunched conductor:φ0.6mm~φ25.0mm
outlet diameter after sheathing: φ0.8mm~φ26.0mm
2. Wire Speed: 80m/min
3. Machine centre height: 1000mm
4. Line direction:Right to Left or Left to Right-----confirmed by the buyer.
5. Machine color:
6. Machine Body: Sky Blue Control Box: Computer White (RAL7035)
Safe color:Yellow(RAL1021)
Specification:
| Model | DHT-40 | DHT-50 | DHT-60 | DHT-70 | DHT-80 | DHT-90 |
| Screw Diameter | 40 | 50 | 60 | 70 | 80 | 90 |
| Screw L/D Ratio | 26:1 | 26:1 | 26:1 | 26:1 | 25:1 | 25:1 |
| Feed wire type | Active pay off or tension pay off | |||||
| Max speed(m/min) | 300 | 400 | 500 | 500 | 200 | 200 |
| Extrusion output | 40 | 70 | 100 | 150 | 200 | 250 |
| Power for main machine(KW) | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Wire diameter | 0.5-3.0 | 0.6-4.0 | 0.8-8.0 | 1.5-12 | 5.0-20 | 6.0-25 |
| Max accumulator length(m) | 220 | |||||
| Accumulator | Horizonal accumulator | |||||
| Cooling channel | Folding W type | |||||
| Capstan diameter | 340 | 410 | 410 | 510 | Double wheel capstan or caterpillar capstan | |
| Capstan power | 2.2KW | 3.7KW | 3.7KW | 5.5KW | 7.5KW | 7.5KW |
| Take up power | 3.7KW | 3.7KW | 5.0KW | 7.5KW | 7.5KW | 7.5KW |
| Take up type | Double shaft take-up or shaftless take up | |||||
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
