Product Details:
Payment & Shipping Terms:
|
| Material: | FEP FPA ETFE Plastic | Screw Dia: | 65 |
|---|---|---|---|
| Feed Wire Type: | Active Pay Off Or Passive Pay Off | Extrusion Output: | 80 KG/H |
| Conductor Dia: | 1.0-5.0mm | Finished Wire Dia: | 1.0-6.0 |
| Temp Control: | Seven Zones | ||
| High Light: | Coil Winding Machine,cable making machines | ||

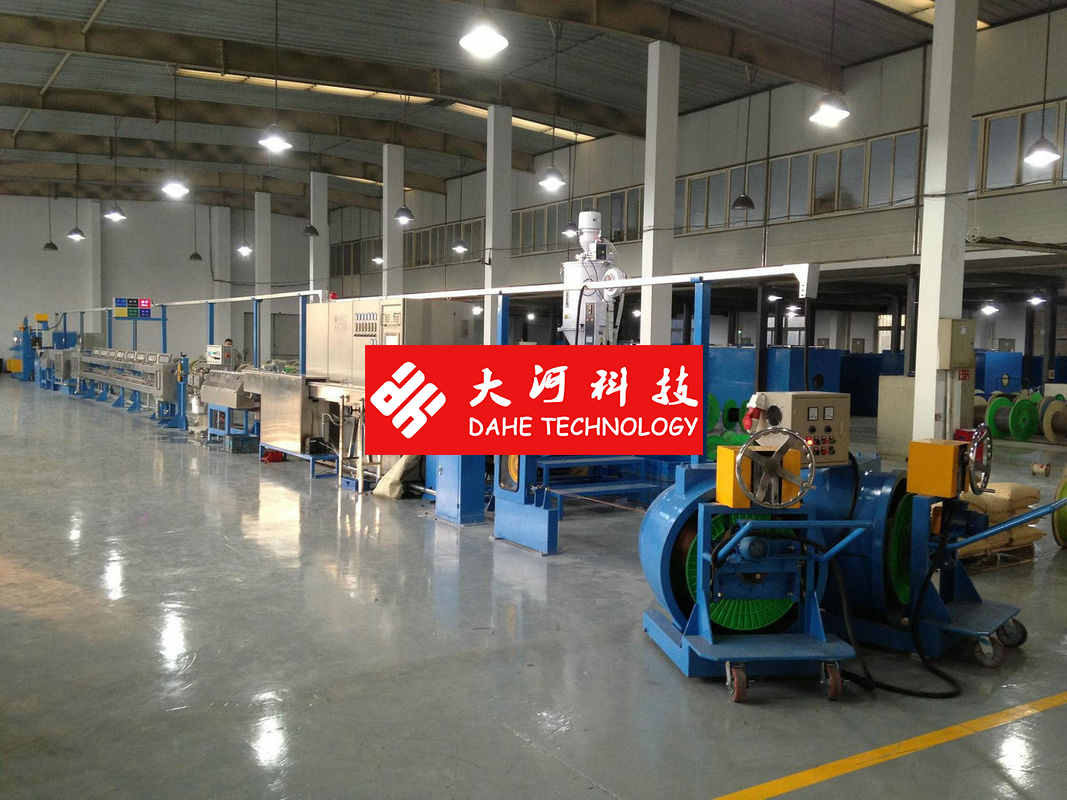

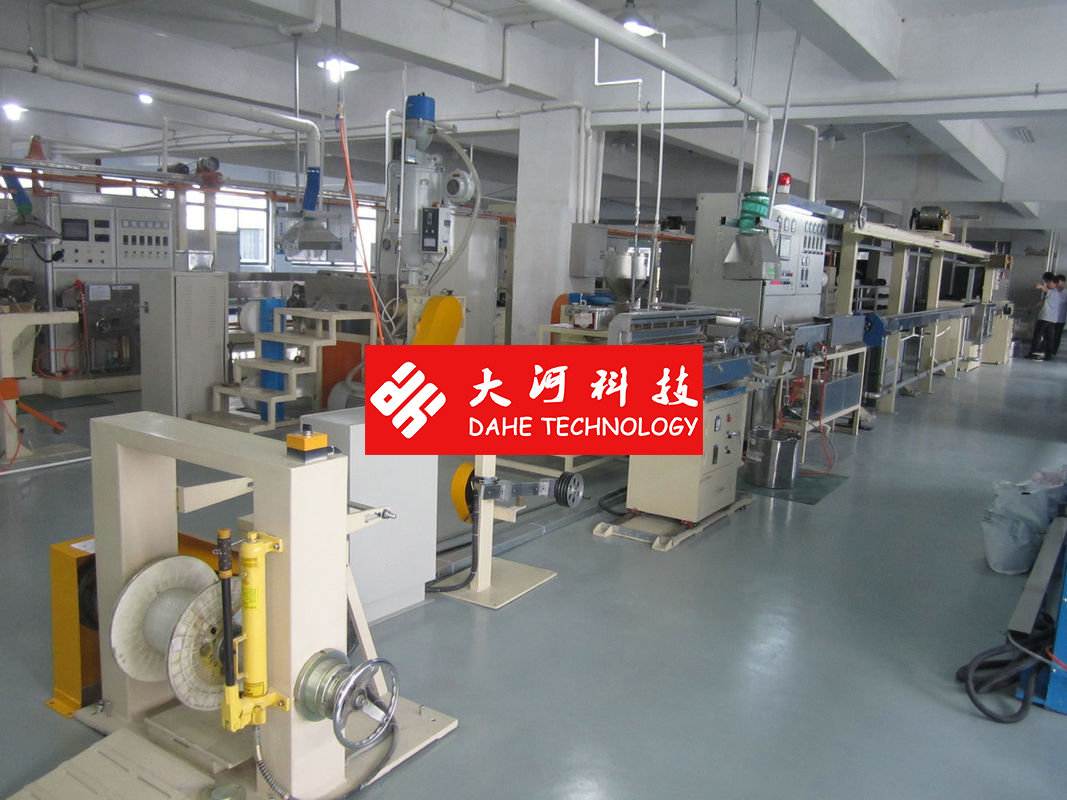

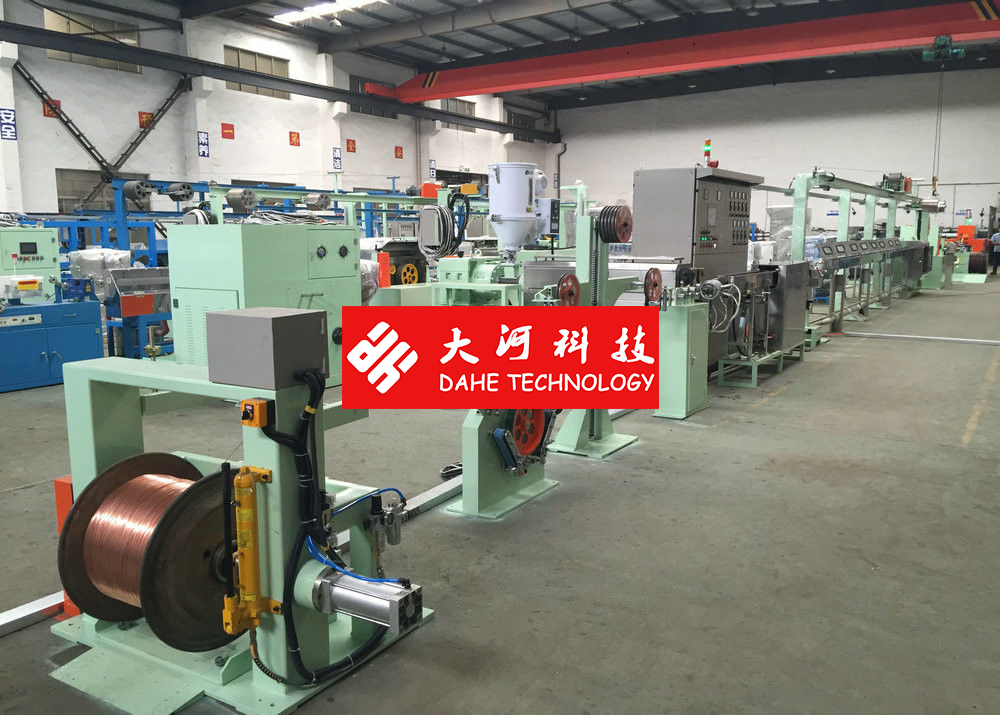

FC Cable Extrusion Machine , FEP FPA ETFE Plastic Extrusion Line With Screw Dia 35mm
Quick detail :
High(FEP,FPA,ETFE plastic's) temperature extruder line
It is applicable to FEP(fep,say againF46),FPA(Oxidation of PVC resin silance oxygen radicals)and ETFE(say againF40)etc.fluorine plastic's production.
Specification:
| Equipment type | 35 | 45 | 65 |
| revolving speed of screw(mm) | φ35 | φ45 | φ65 |
| Screw L/D ratio | 25:1 | 25:1 | 25:1 |
| Extrusion output(kg/h) | 15 | 20 | 45 |
| Power for main machine(kw) | 11 | 11 | 22 |
| conductor dia(mm) | Φ0.2~1.02 | Φ0.6~2.6 | Φ1.0~5.0 |
| finished wire dia(mm) | Φ0.6~1.67 | Φ1.0~3.2 | core wireΦ1.5~6.0 sheathed wireΦ6.0~16 |
| pay off type | active pay off or passive pay off | ||
| pre-heater | 5KVA | 5KVA | 5KVA |
| Evacuating device | Vaccum generator | ||
| temp control | seven zones | seven zones | eight zones |
| diameter measure device | manual/laser automatic diameter tester device | ||
| cooling water tank | single layer or double layer U type | ||
| capstan dia(mm) | φ340 | φ410 | Φ510 |
| capstan power | 2.2KWspeed reduction motor | ||
| wire accumulator rack | horizontal type | ||
| max of accumulator length | 200M | ||
| Take-up | Biaxial rooling | ||
| take up power | 2.2KW | 2.2KW | 3.7KW |
| Total power | 38KW | 38KW | 65KW |
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai
Payment terms:
30% down payment,70% before shipment
Delivery time:
45-60 days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
Simple water-prof package
