Product Details:
|
| Fit For Bobbin: | Diameter1250mm | Color: | Sky Blue |
|---|---|---|---|
| Power: | 22kw | Magnetic Powder Clutch: | 20kgf |
| Operation Mode: | Touch Screen Operation | Fit For Wire: | Core Wire/copper Wire |
| High Light: | cable manufacturing equipment,single cable machine | ||

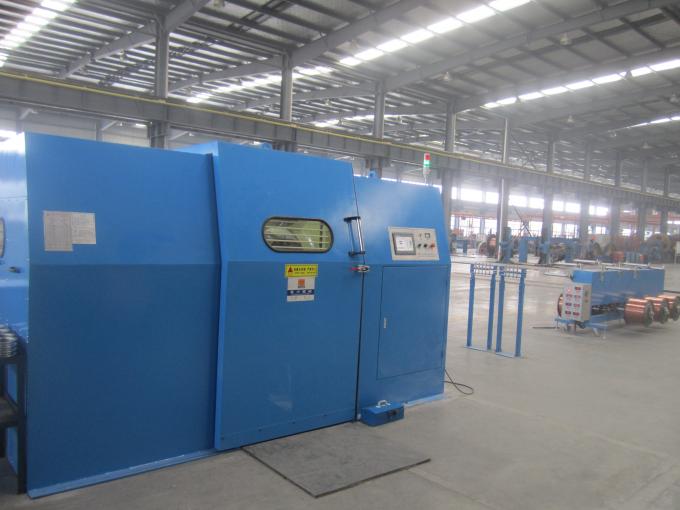

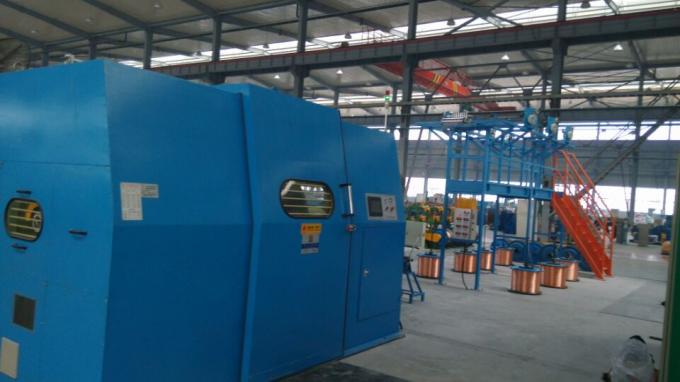

20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin
Model DHT-1250B-1 large wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in China
Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.
| Equipment models | DHT-1250B-1 |
| Twisting usage | It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. |
| Single wire dia(mm) | φ0.5-φ2.14 |
| Stranding section area (mm²) | 10.0-50.0 |
| Core wire single wire dia | φ3.0-φ8.0 |
| Core wire stranding outer dia | φ6.0-φ16.0 |
| Pitch(mm) | 50-250(12zones) |
| Direction of lay | Optional for right or left |
| Take up bobbin Outer dia*bore*outer width | φ1250*φ80*950 |
| Max rotating speed | 800(1600twist) |
| Main motor power | 22KW |
| Inverter power | 22KW |
| Tension control method | Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
| Magnetic powder clutch | 20kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
| Brake mode | Electromagnetic brake |
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
| Operation mode | Touch screen operation |
| Dimension(mm) | 4500L*2600W*2500H |
