Product Details:
|
| Color: | Sky Blue | Fit For Bobbin: | Max Diameter 1000mm |
|---|---|---|---|
| Fit Copper Wire: | 1.0mm-5.0mm | Wire: | Core Wire/bare Copper Wire,tinned Wire,silver Jacketed Wires |
| Used: | Working With Buncher Or Extruder | Type: | Active Type |
| High Light: | cable processing equipment,cable manufacturing equipment | ||

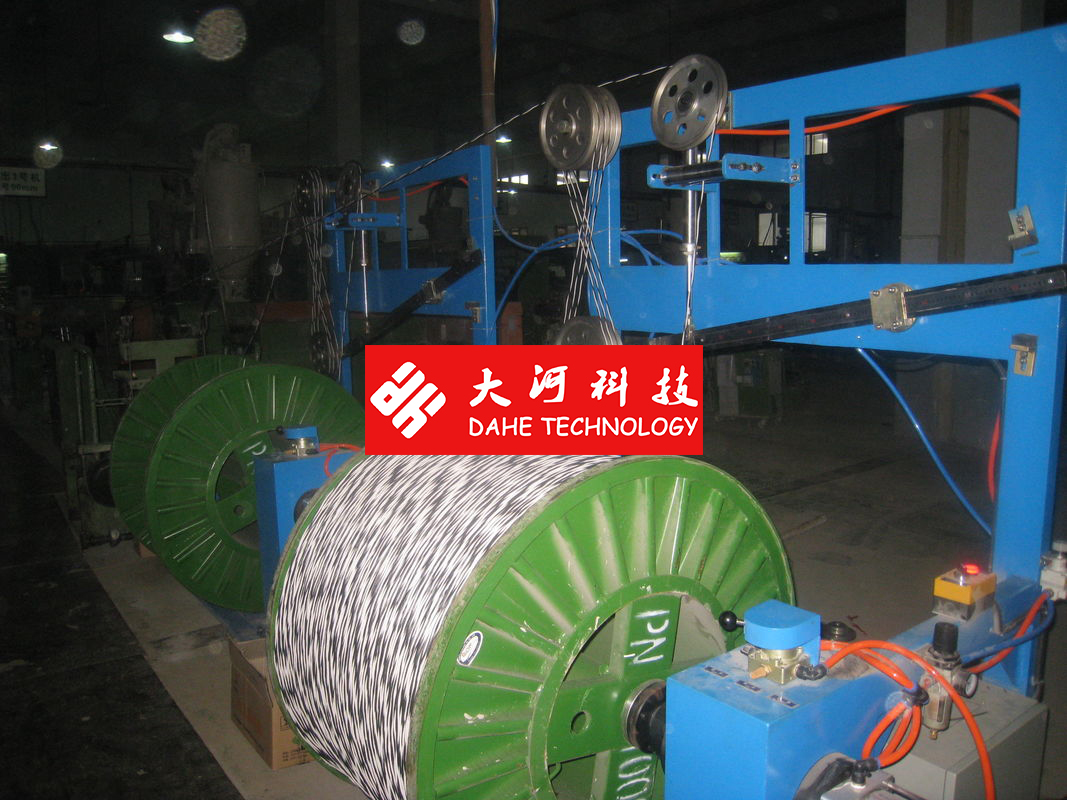

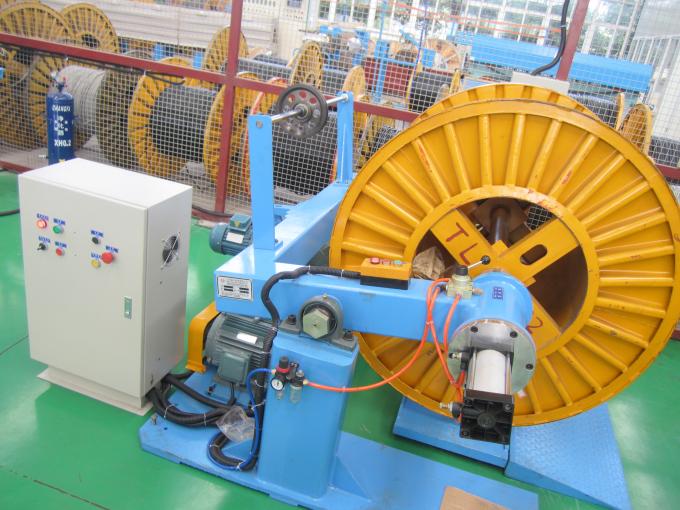

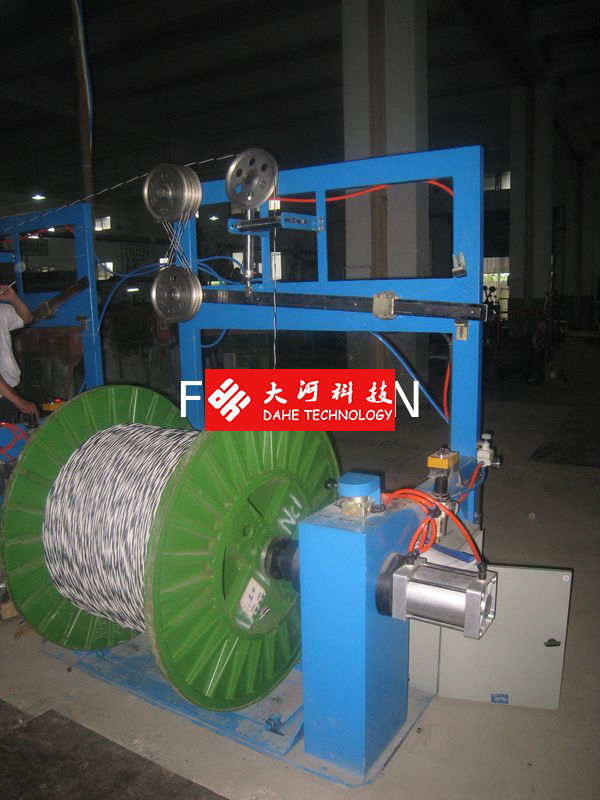

Pay Off Electrical Core Wire Bunching Machine Single Shaft Active Type
DHT-1000 active type core wire single shaft pay off machine components:
1) Fit for bobbin 630-1000mm
2) Fit for core wire φ1.0- φ5.0mm
3) Max speed: 200m/min
4) Main motor:3.7kw
5) Bobbin locking type: shaftless , pneumatic locking
6) Lifting type: electric hydraulic lifting
7) Protect: when wire is break the machine will stopped automatically
