Product Details:
Payment & Shipping Terms:
|
| Fit For Wire: | Core Wire/ Copper Wire | Fit For Bobbin: | Diameter1250mm |
|---|---|---|---|
| Color: | Sky Blue Cable Processing Equipment | Power: | 22kw |
| Magnetic Powder Clutch: | 20kgf | Operation Mode: | Touch Screen Operation |
| High Light: | cable processing equipment,cable manufacturing equipment | ||

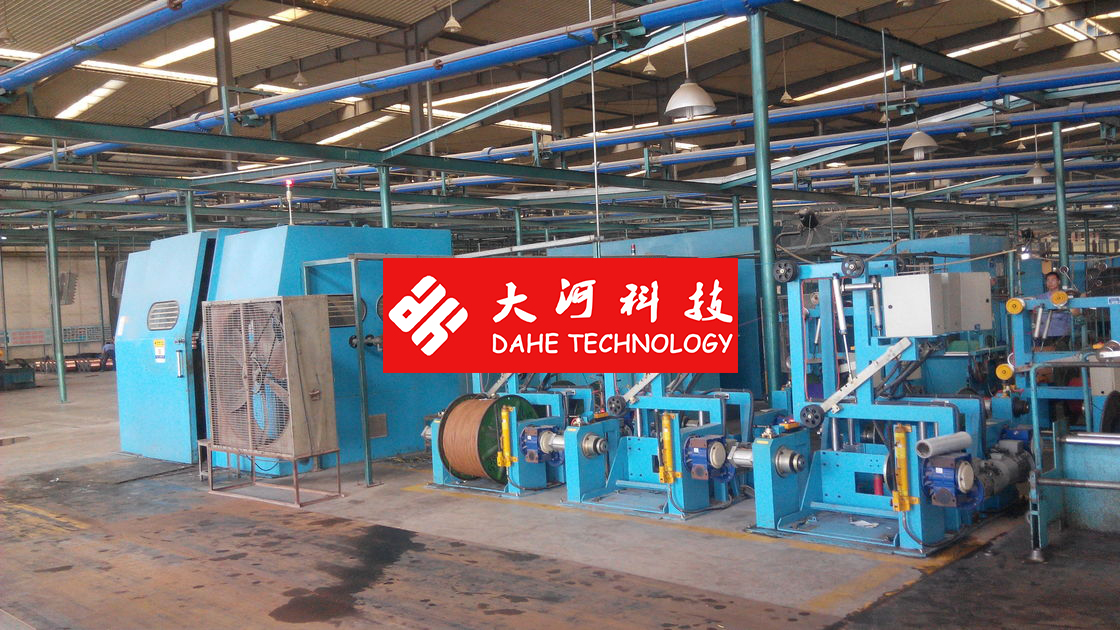

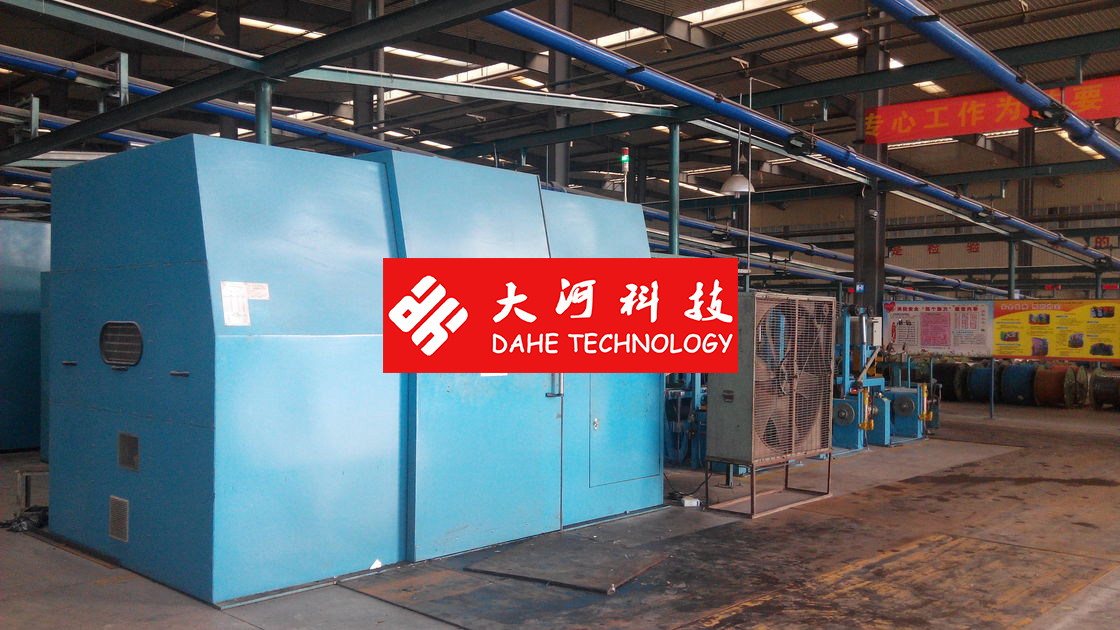

2.14 Silver Jacketed Wire Twister Machine 20Kgf Magnetic Powder Clutch
Model DHT-1250B-3 big wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in China
Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.
Equipment models | DHT-1250B-3 |
Twisting usage | It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. |
Single wire dia(mm) | φ0.5-φ2.14 |
Stranding section area (mm²) | 10.0-50.0 |
Core wire single wire dia | φ3.0-φ8.0 |
Core wire stranding outer dia | φ6.0-φ16.0 |
Pitch(mm) | 50-250(12zones) |
Direction of lay | Optional for right or left |
Take up bobbin Outer dia*bore*outer width | φ1250*φ80*950 |
Max rotating speed | 800(1600twist) |
Main motor power | 22KW |
Inverter power | 22KW |
Tension control method | Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
Magnetic powder clutch | 20kgf |
Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
Brake mode | Electromagnetic brake |
Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
Operation mode | Touch screen operation |
Dimension(mm) | 4500L*2600W*2500H |
