Product Details:
Payment & Shipping Terms:
|
| Brake Mode: | Electromagnetic Brake | Name: | Copper Wire Manufacturing Machine |
|---|---|---|---|
| Wire No: | Above 7pcs Of Copper Wire/ | Fit For Bobbin: | Diameter1600mm |
| Power: | 30kw | ||
| High Light: | cable processing equipment,single cable machine | ||

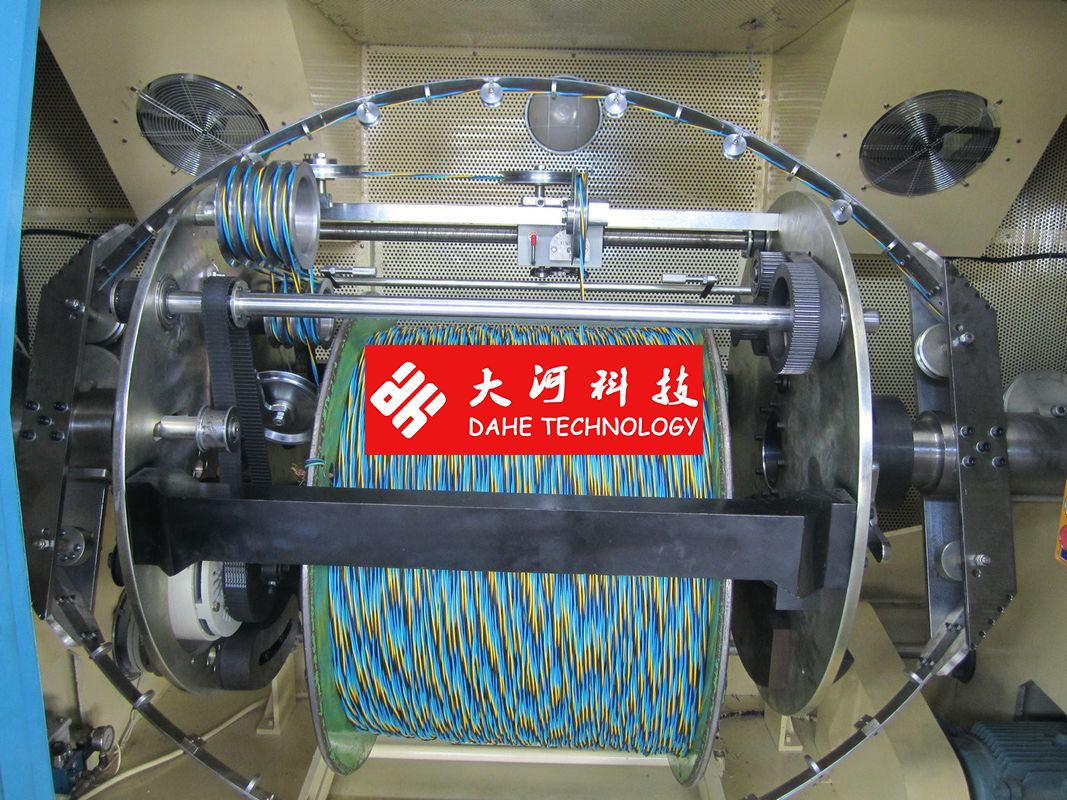

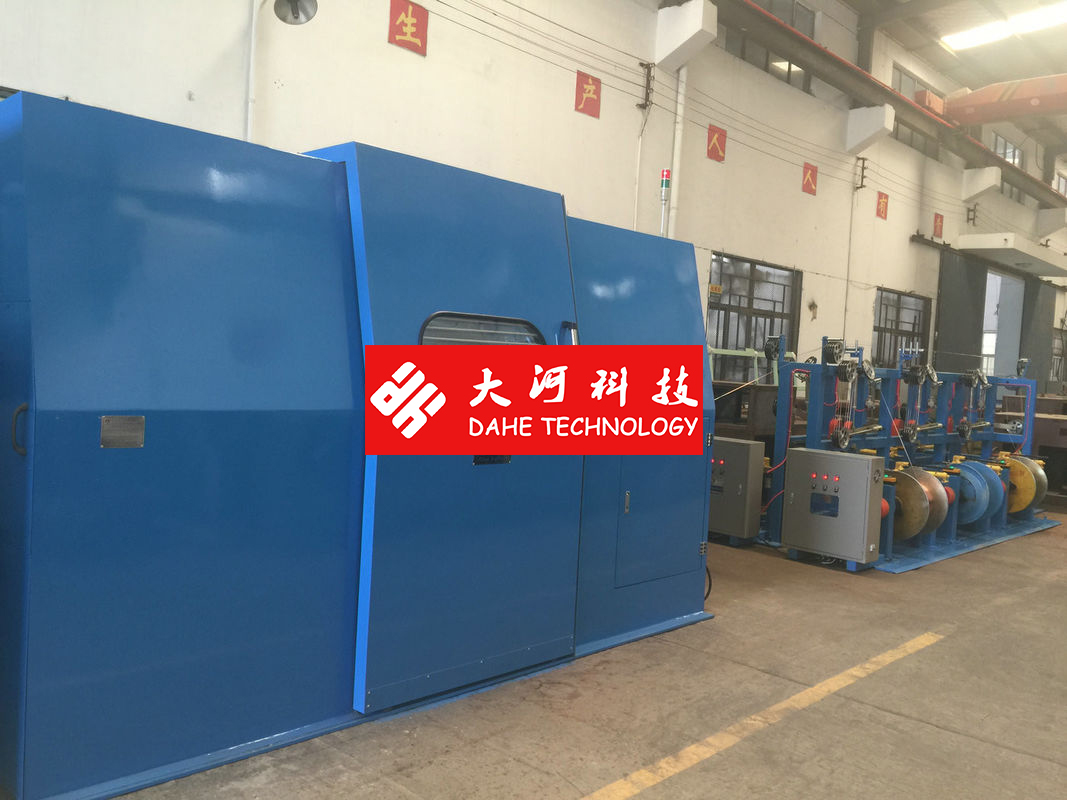

High Productivity Enamelled Wire Bunching Machine 30Kw With Touch Screen Operation
Model DHT-1000B-1 large wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in China
Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.
Equipment models | DHT-1600B-2 |
Twisting usage | It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. |
Single wire dia(mm) | φ0.5-φ2.52 |
Stranding section area (mm²) | 10.0-50.0 |
Core wire single wire dia | φ3.0-φ6.0 |
Core wire stranding outer dia | φ6.0-φ15 |
Pitch(mm) | 60-260(12zones) |
Direction of lay | Optional for right or left |
Take up bobbin Outer dia*bore*outer width | φ1600*φ80*1180 |
Max rotating speed | 600(1200twist) |
Main motor power | 30KW |
Inverter power | 30KW |
Tension control method | Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
Magnetic powder clutch | 40kgf |
Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
Brake mode | Electromagnetic brake |
Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
Operation mode | Touch screen operation |
Dimension(mm) | 5000L*3000W*3000H |
