Product Details:
Payment & Shipping Terms:
|
| Brake Mode: | Electromagnetic Brake | Name: | Copper Wire Twisting Machine |
|---|---|---|---|
| Wire No: | Above 7pcs Of Copper Wire/ | Fit For Bobbin: | Diameter1600mm |
| Power: | 30kw | Advantage: | Low Noise |
| High Light: | cable processing equipment,single cable machine | ||
Low Noise Copper Wire Twisting Machine , Small Floor Place Cable Extrusion Line

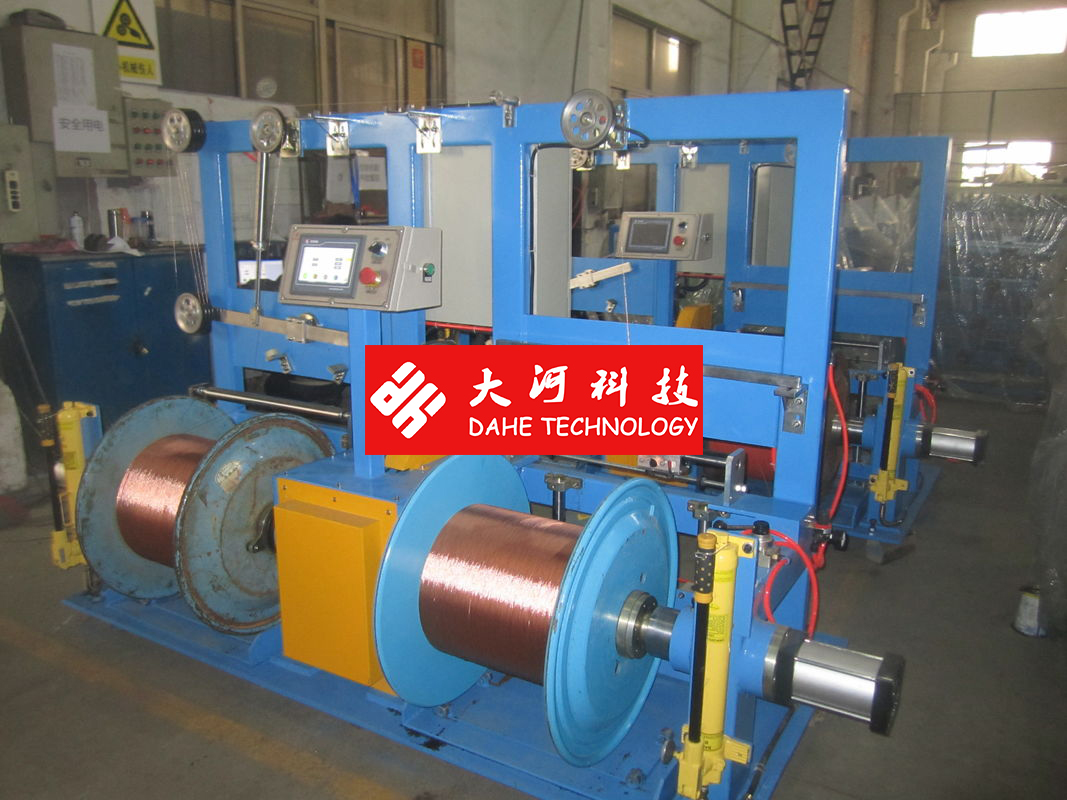

Copper Wire Twisting Machine Introduction
It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.
Equipment models | DHT-1600B-2 Copper Wire Twisting Machine |
Twisting usage | It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. |
Single wire dia(mm) | φ0.5-φ2.52 |
Stranding section area (mm²) | 10.0-50.0 |
Core wire single wire dia | φ3.0-φ6.0 |
Core wire stranding outer dia | φ6.0-φ15 |
Pitch(mm) | 60-260(12zones) |
Direction of lay | Optional for right or left |
Take up bobbin Outer dia*bore*outer width | φ1600*φ80*1180 |
Max rotating speed | 600(1200twist) |
Main motor power | 30KW |
Inverter power | 30KW |
Tension control method | Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
Magnetic powder clutch | 40kgf |
Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
Brake mode | Electromagnetic brake |
Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
Operation mode | Touch screen operation |
Dimension(mm) | 5000L*3000W*3000H |
