Product Details:
|
| Name: | High Production Speed Wire Bunching Machine For Bare Copper Wires Tinned Wires | Color: | Sky Blue |
|---|---|---|---|
| Feature: | High Production Speed | Fit For Bobbin: | Diameter1000mm |
| Power: | 18.5kw | Single Wire: | 0.3mm-1.7mm |
| Pitch Area: | 35-200 | ||
| High Light: | cable manufacturing equipment,single cable machine | ||
High Production Speed Wire Bunching Machine For Bare Copper Wires Tinned Wires
Wire Bunching Machine Introducion
Model DHT-1000B-2 large wire high speed bunching machine and double twist bunching machine
Wire Bunching Machine Merits:
It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.
Wire Bunching Machine parametres
| Equipment models | DHT-1000B-2 |
| Twisting usage | It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. |
| Single wire dia(mm) | φ0.30-φ1.7 |
| Stranding section area (mm²) | 6.0-35.0 |
| Core wire single wire dia | φ2.0-φ5.0 |
| Core wire stranding outer dia | φ4.0-φ10 |
| Pitch(mm) | 35-200(12zones) |
| Direction of lay | Optional for right or left |
| Take up bobbin Outer dia*bore*outer width | φ1000*φ80*750 |
| Max rotating speed | 1000(2000twist) |
| Main motor power | 18.5KW |
| Inverter power | 18.5KW |
| Tension control method | Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
| Magnetic powder clutch | 20kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
| Brake mode | Electromagnetic brake |

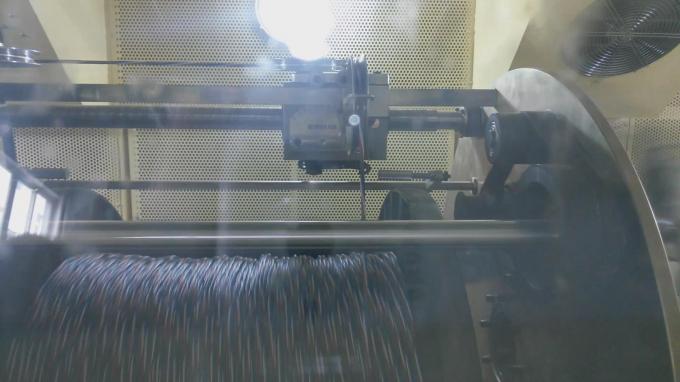

| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
| Operation mode | Touch screen operation |
| Dimension(mm) | 4000L*2200W*2100H |
