Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Fit For Bobbin: | Diameter 100mm |
|---|---|---|---|
| Applied For Wire: | Core Wire | Twist Type: | Cantilever Type |
| Max Outer Dia: | 25mm | Applied Wire: | 1.0mm-4.0mm |
| High Light: | cable braiding machine,copper wire making machine | ||
DAHETEC 100mm Cable Twisting Machine , Single Twist Core Wire Stranding Machine
Characteristics:

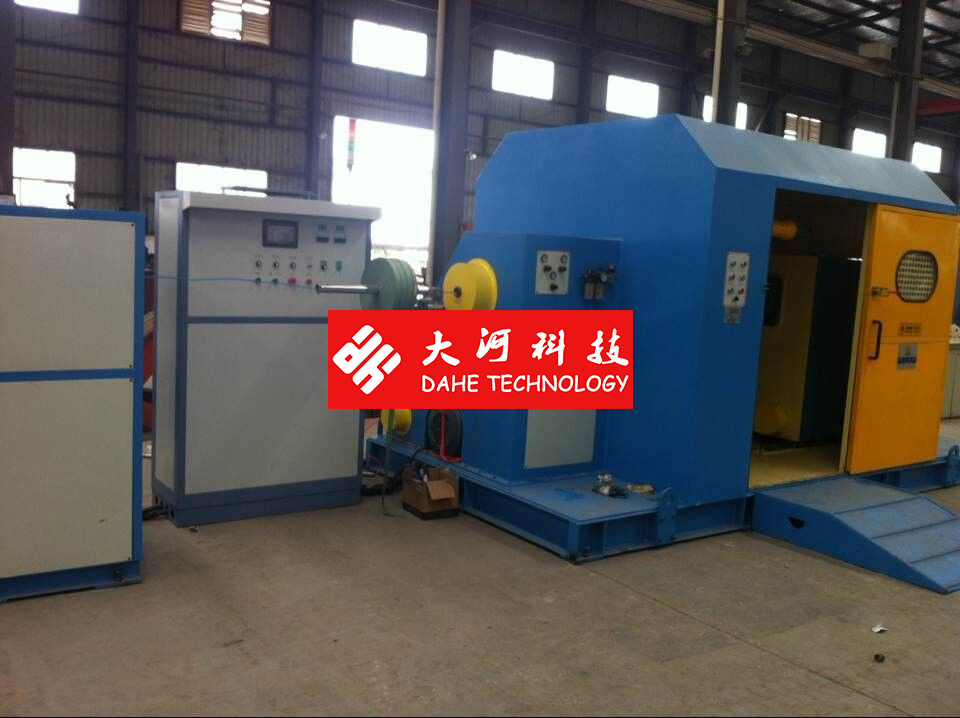

Series for cantilever single twist (cable laying) machine
Series for cantilever type single twist (cable laying) machine

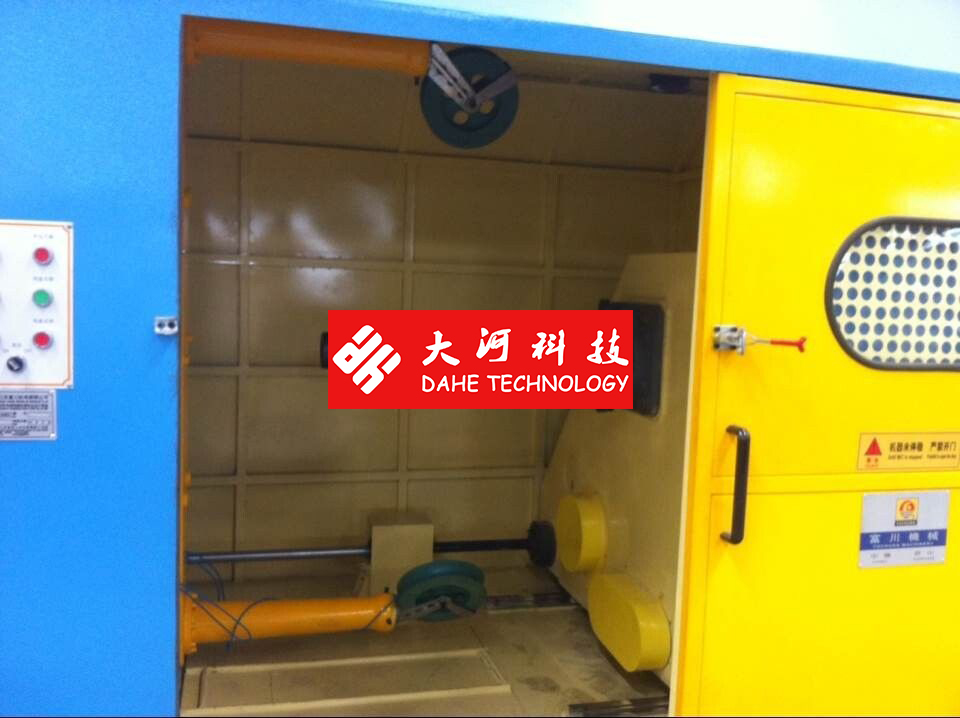

Cantilever structure, small rotatory inertia, high and stable rotation, thus get the stable quality products;
Take up box reciprocate, lead to the bunching wire is arranged precisely in the take up bobbin;
Computer control the pitch, no capstan, no dynamic plate, assure the uniformity tension of cable, shorten the path length;
Largen the diameter of veer wheel to decrease the wire bend degree, assure the quality of finished wire;
It is convenient to load/unload the bobbin, small labour strength.
Compared with the traditional cable-laying machine, avoid the rod cracked and other unsafe factors when machine is rotating in high speed.
Specification:
Equipment models | DHT-XB630 | DHT-XB800 | DHT-XB1000 | DHT-XB1250 |
Usage | It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet. | |||
Applicable dia(mm) | φ0.60-φ3.0 | φ1.0-φ4.0 | φ1.0-φ5.0 | φ1.0-φ6.0 |
Max twist outer dia | φ15 | φ20 | φ25 | φ30 |
Pitch(mm) | 20-200 | 30-300 | 30-350 | 30-400 |
Direction of lay | Optional for right or left | |||
Take-up bobbin size | φ630 | φ800
| φ1000
| φ1250
|
Max rotating speed(rpm) | 800 | 700 | 600 | 500 |
Traversing method | According to the bobbin rotation speed and reciprocating action, stepless control. | |||
Take up tension | Pneumatic tension automatic regulate | |||
Brake mode | Pneumatic booster brake | |||
Bundling mode | Central bundling or side bundling | |||
Replace pitch mode | Computer pitch | |||
Other information:

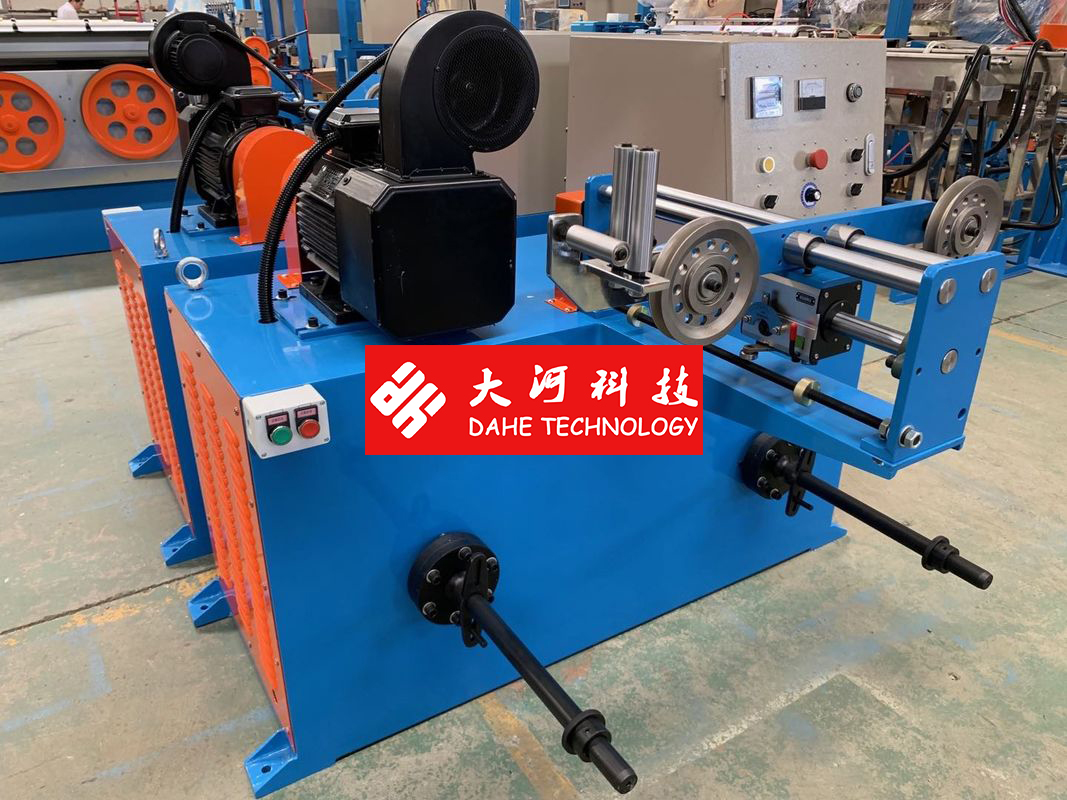

active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
