Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Fit For Bobbin: | Diameter 630mm |
|---|---|---|---|
| Applied For Wire: | Core Wire | Twist Type: | Cantilever Type |
| Max Outer Dia: | 20mm | Max Speed: | 800rpm |
| Take Up Bobbin: | Dia1000mm | ||
| High Light: | cable braiding machine,copper wire manufacturing machine | ||
DHT-1000single twisting machine(computer change pitch)
Equipment main parameters:

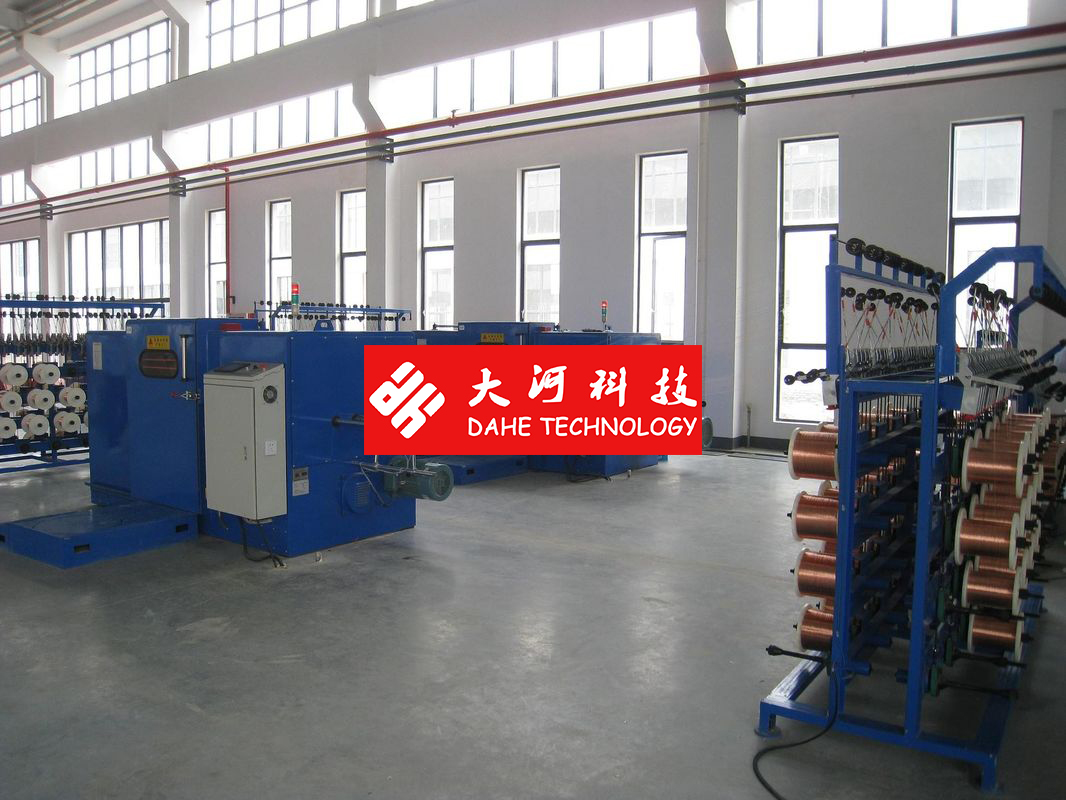

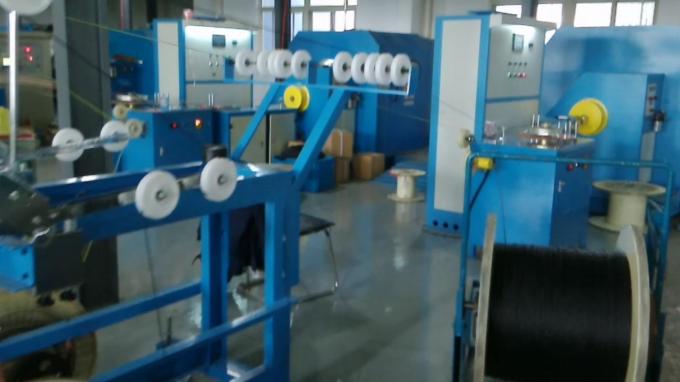

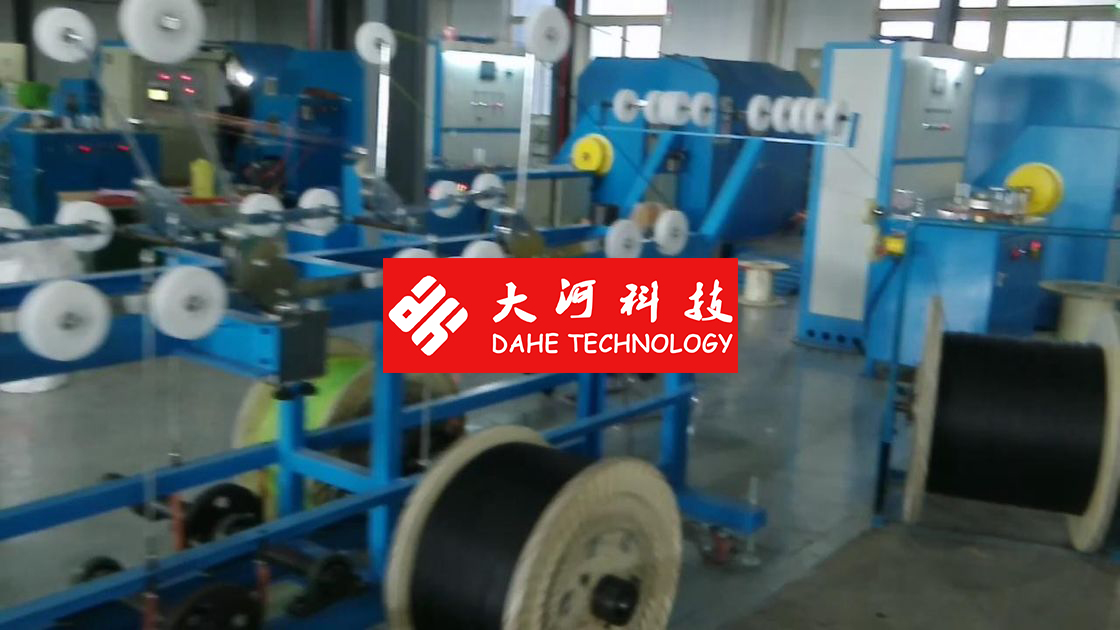

Machine usage:It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying) machine and electrical control cabinet. Fit for PVC coated centre bundling and twisting, copper wire re-twisting.
2. 2. Detail feature of DHT-1000 single twisting machine
2.1 single core wire :￠1.0mm-￠3.0mm
2.2 Main machine max rotating speed:500rpm
2.3 Twisting pitch:30-200mm
2.4 Max twisting outside diameter: ￠15mm
2.5 Max hauling speed:500r/min
2.6 Main machine centre height: 800mm
2.7 Total power:11KW
2.8 Max speed of central bundling machine :2600m/min
3. Main components:
3.1 DHT-1000 main machine 1set
3.2 DHT-1000 centre bundling machine 1set
3.3 Wire concentration seat 1set

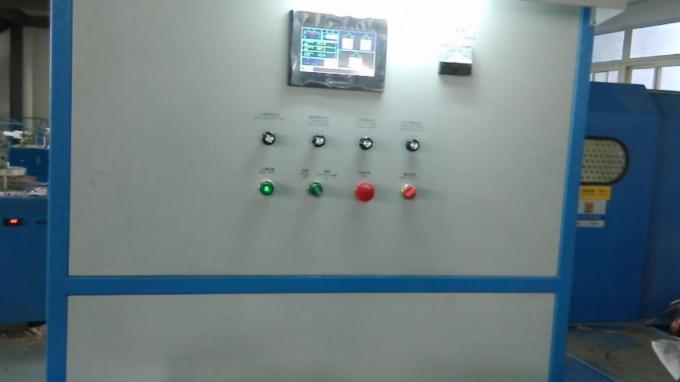

3.4 Electrical control cabinet 1set

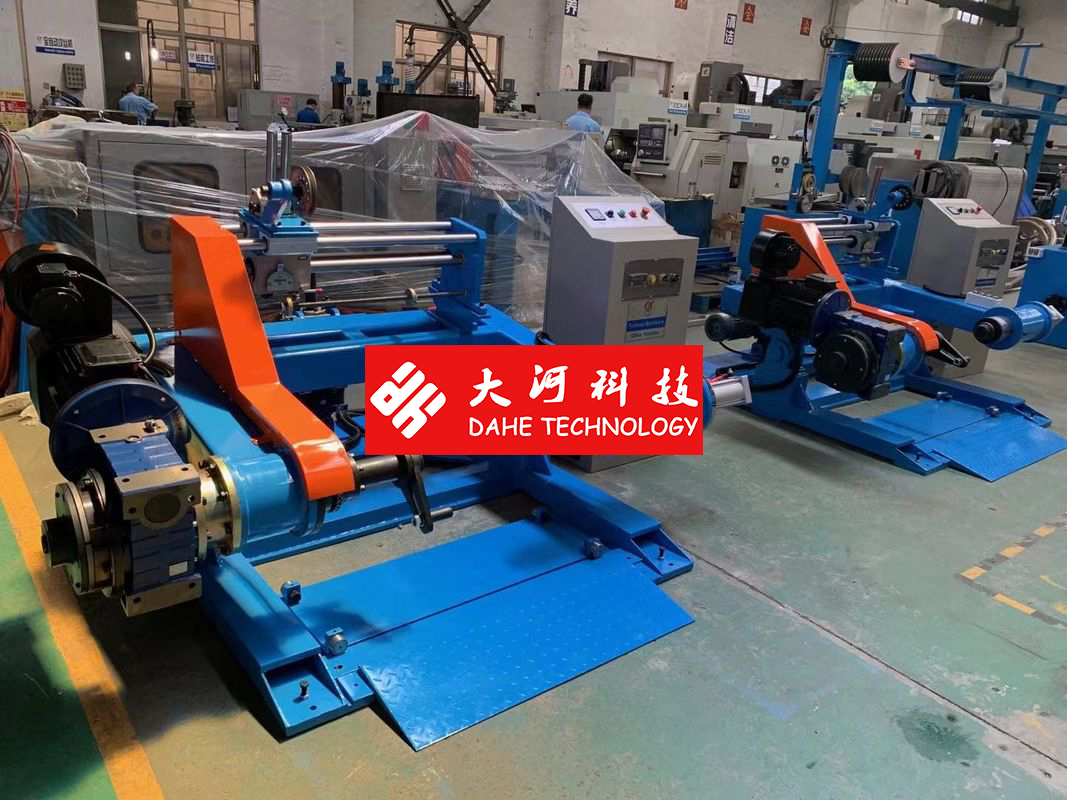

3.5 DHT-630 core wire pay off rack 7heads/set*1set
Equipment models | DHT-XB630 | DHT-XB800 | DHT-XB1000 | DHT-XB1250 |
Usage | It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet. | |||
Applicable dia(mm) | φ0.60-φ3.0 | φ1.0-φ4.0 | φ1.0-φ5.0 | φ1.0-φ6.0 |
Max twist outer dia | φ15 | φ20 | φ25 | φ30 |
Pitch(mm) | 20-200 | 30-300 | 30-350 | 30-400 |
Direction of lay | Optional for right or left | |||
Take-up bobbin size | φ630 | φ800
| φ1000
| φ1250
|
Max rotating speed(rpm) | 800 | 700 | 600 | 500 |
Traversing method | According to the bobbin rotation speed and reciprocating action, stepless control. | |||
Take up tension | Pneumatic tension automatic regulate | |||
Brake mode | Pneumatic booster brake | |||
Bundling mode | Central bundling or side bundling | |||
Replace pitch mode | Computer pitch | |||
