Product Details:
Payment & Shipping Terms:
|
| Number Of Inlet Wire: | 40pcs | Machine Color: | Sky Blue Or Apple Green |
|---|---|---|---|
| Fit For Wire: | 0.08-0.25mm Or 0.15-0.64 | Pay Off Bobbin: | Diameter 300mm |
| Annealing Method: | Tube Annealing | Max Speed: | 300m/min |
| Pay Off Method: | Brush Pay Off | ||
| High Light: | copper wire annealing machine,cable coiling machine | ||

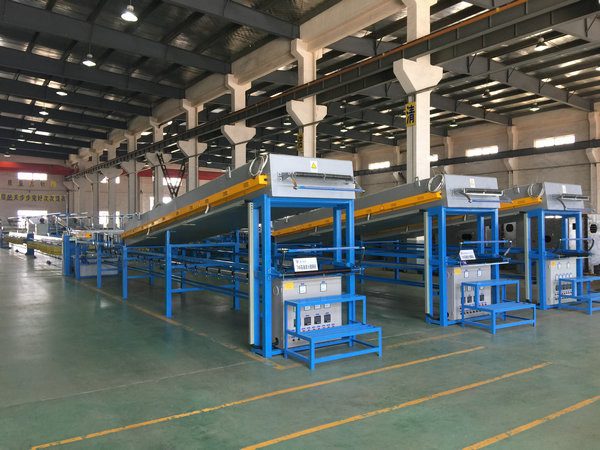

Copper Tinned Wire Tube Annealing Machine 40Pcs Energy Saving
Quick detail:
DHT-T40-3 normal wire high speed annealing machine
Characteristics:
Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level.
Specification:
Equipment models | DHT-T40-3 |
Twisting usage | It is mainly applied to the annealing of ultra-fine round copper wire and alloy wire. |
Single wire dia(mm) | φ0.08-φ0.25 or φ0.15-φ0.64mm |
Max numbers of inlet wire | 40pcs |
Linear speed | Max:300m/min |
Pay off method | Brush pay off |
Pay off bobbin model | φ300bobbin |
Annealing furnace length | 3.5m or 6m |
Annealing method | Tube annealing |
Annealing protection method | Water seal protection |
Tinned method | Hot dip |
Capstan control method | Inverter+ motor control or adopt stepless speed regulation motor |
Equipment total power | 68kw |
Take up control | Take up is voltage regulator control the moment motor |
Take up bobbin size | 5inch,8inch bobbin or 5inch,8inch,10inch bobbin |
Traverse control method | Stepless speed regulation motor+ turbine gear box control toothrow traverse |
Installation size | 24000L*2200W*2100H |
