| Number Of Inlet Wire: | 24pcs | Machine Color: | Sky Blue Or Apple Green |
|---|---|---|---|
| Fit For Wire: | 0.04 To 0.127mm | Pay Off Bobbin: | DIA 300mm |
| Annealing Method: | Tube Annealing | Max Speed: | 300m/min |
| Pay Off Method: | Brush Pay Off | ||
| High Light: | copper wire annealing machine,cable coiling machine | ||

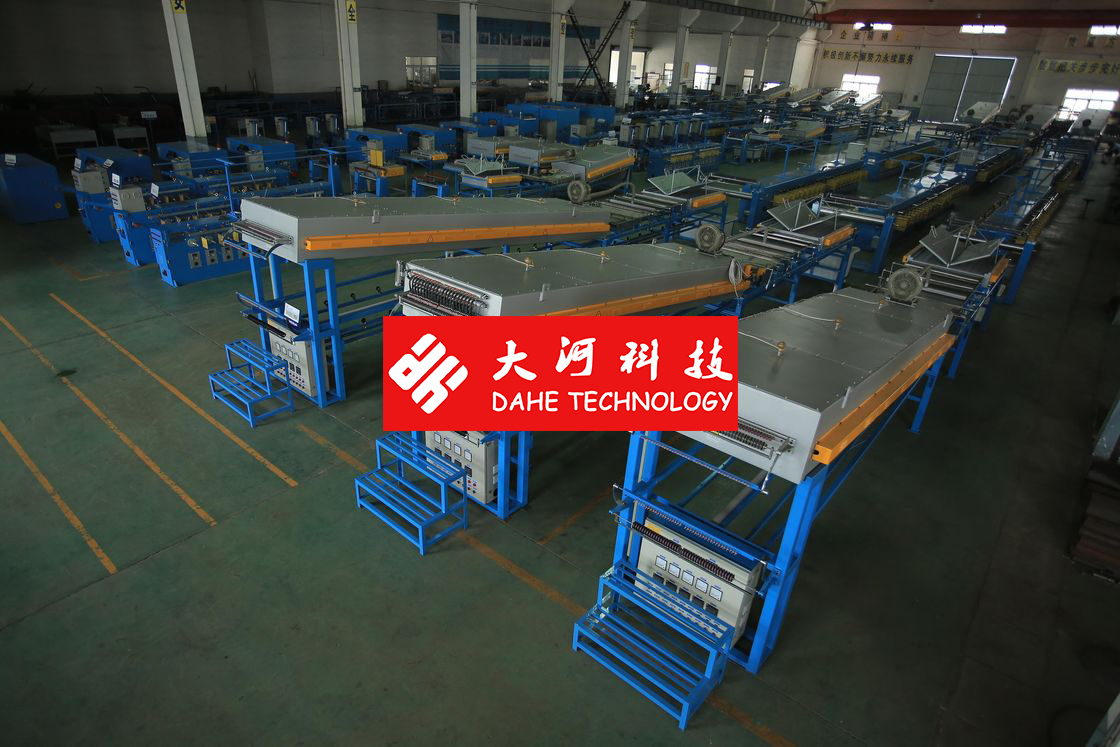

China DAHETEC 24Pcs Wire Annealing Machine for Single Wire Dia 0.04 - 0.127mm
Ultra-fine wire high speed annealing machine
Japanese Tech, Product in China
Charateristics:
A Easy to operate, good annealing heat insulation, save power, adopt nitrogen or steam protection,
B have individual meter counter for each take up bobbin, stop automatically achieve the preset meter.
C It may realize ultra-fine annealing tin and achieve industry-leading level.
Specification:
Equipment models | TX24 |
Twisting usage | mainly applied to the annealing of ultra-fine round copper wire and alloy wire. |
Single wire dia(mm) | φ0.04-φ0.127 mm |
Max numbers of inlet wire | 24pcs |
Linear speed | Max:300m/min |
Pay off method | Brush pay off |
Pay off bobbin model | φ300bobbin |
Annealing furnace length | 3.0m |
Annealing method | Tube annealing |
Annealing protection method | Nitrogen protection or vapour protection |
Tinned method | Hot dip |
Capstan control method | Inverter+ motor control or adopt stepless speed regulation motor |
Equipment total power | 40kw |
Take up control | Take up is voltage regulator control the moment motor |
Take up bobbin size | 3inch,5inch,8inch bobbin |
Traverse control method | Inverter+reducer motor control ball screw traversing,photoelectric induction reversing |
Installation size | 20000L*1250W*1850H |
