Product Details:
Payment & Shipping Terms:
|
| Number Of Inlet Wire: | 40pcs | Machine Color: | Sky Blue Or Apple Green |
|---|---|---|---|
| Fit For Wire: | 0.1-0.5mm | Pay Off Bobbin: | Diameter 300mm |
| Annealing Method: | Tube Annealing | Max Speed: | 260m/min |
| Pay Off Method: | Brush Pay Off | Fir For Wire: | Copper Wire Or Alloy Wire |
| High Light: | copper wire annealing machine,cable coiling machine | ||

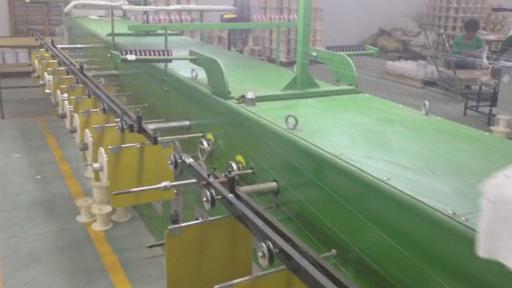

Main performance of DHT-T40 high speed annealing tinning machine
Description:
The annealer integral type, total thickness is 500mm, and 100mm much thicker than general supplier’s design. The heat preservation effect is good. This type can save 30% of electricity.

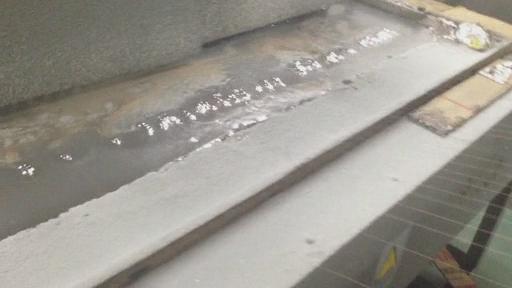

The annealer, oven and tinning furnace is tube type. Easy to replace and maintenance.
The two ends of the furnace tube all ceramic sleeve design, to prevent the wire be scratched.
The water tank is re-cycle design and with water tank and pump.
The two ends of the hauling drum with revolving joints and can connect the re-cycle water for cooling.
The take up is 44 heads single layer design. Another four heads is for prepare.
Is fit for human’s height. Can be operated easily.
The take up two ends is with clapboard design, to prevent broken wire effect the connecting wires.
Below the annealing furnace and upper of the take up has lights design, easy for workers to operate the wire.
Specification:
| Item | Quantity | Reference |
| Components for annealing tin unit as follows: | ||
| 1.Pay-off rack(40heads pay off) | 1 set | |
| (1)Bobbin:φ300*φ127*270 | Pay off cap is customer prepare | |
| (2) vertical brush pay off | ||
| 2. Annealing furnace ( tube annealing) | 1 set | |
| (1)6m,zone 3 temperature control | Body6000*1250*500mm | |
| (2)304stainless steel annealer tube | 40sets | Tube:φ14*φ10*7000 |
| (3)annealing wire: φ0.15-φ0.68mm | ||
| (4)annealing power:40.5KW | 304stainless steel heating tube:750W*54pcs | |
| 3.Water tank | 1set | |
| (1)SUS304stainless steel water tank | 1set | |
| (2)water tank+JP125 pump | 1set | |
| 4.Dryer part | 1set | |
| (1)High pressure fan | 1set | |
| (2)Blower | 1set | |
| (3)Wiper | 1set | |
| 5. Oven part(heating tube heat) | 1set | |
| (1)Heating power:6KW | ||
| (2)304stainless heating tube:1000W*6pcs |
Other information:
On terms of payment: FOB Shanghai
Delivery date: 30% T/T advance,70% before shipment
Country of origin: China
Mininum order: 1 set
Package: comfortable for container
