Product Details:
|
| Name: | Wire Annealing Machine | Machine Color: | Sky Blue |
|---|---|---|---|
| Power: | 43KW | Inlet Wire Dia: | φ0.15～φ0.64mm |
| Max Nos Of Inlet Wire: | 32 | Linear Speed: | Max:260m/min |
| Advantage: | Easy For Workers To Operate | Pay Off Bobbin Type: | Dia300mm Bobbin |
| High Light: | wire tinning machine,copper wire annealing machine | ||

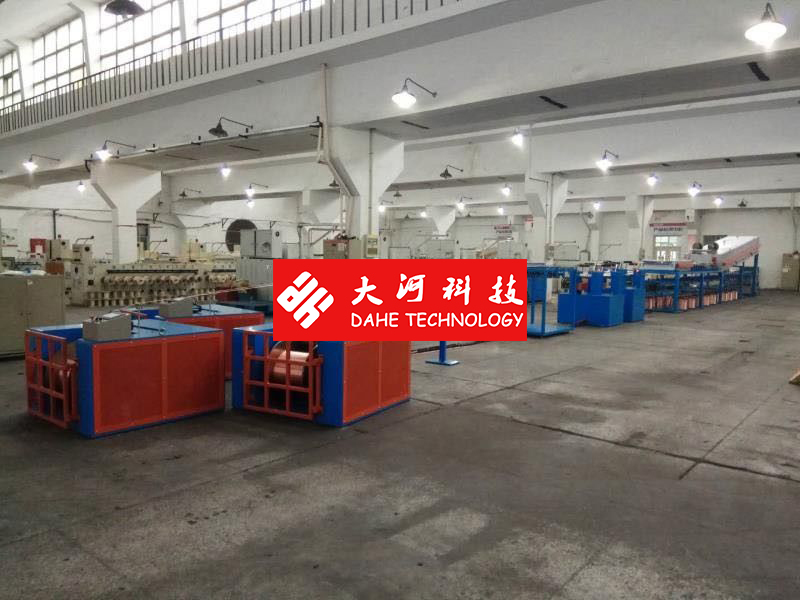

Integral Type Wire Annealing Machine Easy For Workers To Operate 43KW
Description:
Specification:
| Equipment model | DHT-T42/630 | DHT-T48/630 | DHT-T60/630 |
| Twisting usage | Mainly used for round copper wire annealing tin to use, and will share more copper wire at the same time in 630 iron plate . | ||
| inlet wire dia | φ0.15～φ0.64mm | φ0.15～φ0.32mm | |
| max numbers of inlet wire | 42 | 48 | 60 |
| linear speed | max:260m/min | ||
| pay off type | brush pay off or far end pay off | ||
| pay off bobbin type | dia300mm bobbin | ||
| annealing length | 6m | 5m | |
| annealing type | tube annealing | ||
| annealing protection type | water seal protection | ||
| annealing power | 54KW | 94KW | 92KW |
| drying device | high pressure worm fan+blower | ||
| oven length | 1.5m | 1.2m | |
| hauling | active hauling device controller | ||
| tinned type | hot dip | / | |
| take up control | inverter control torque motor take up | ||
| take up operation mode | touch screen operation | ||
| take up bobbin | 2~6pcs 630bobbin take up(can according to customer's requirement) | ||
| traverse control type | servo motor+ball screw precision traverse | ||
| installation size(mm) | 26000L*3000W*2100H | 25000L*2200W*2400H | 27000L*2200W*2300H |
Other information:
Terms of payment:
FOB Shanghai
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Minimum order:
1set
Package:
With container
Contact Person:Mr. Martin
Tel:+86-13827252427
Fax:86-769 8978 6861
