| Color: | Sky Blue | Fit For Bobbin: | Diameter 300/250mm |
|---|---|---|---|
| Applied For Wire: | Copper Wire/silver Jacketed Wire/enamelled Wire | Applied For Bobbin: | Diameter 300mm Bobbin |
| Fit For Wire: | 0.03mm-0.18mm | Power: | 3.7kw |
| High Light: | wire processing machine,cable manufacturing machine | ||

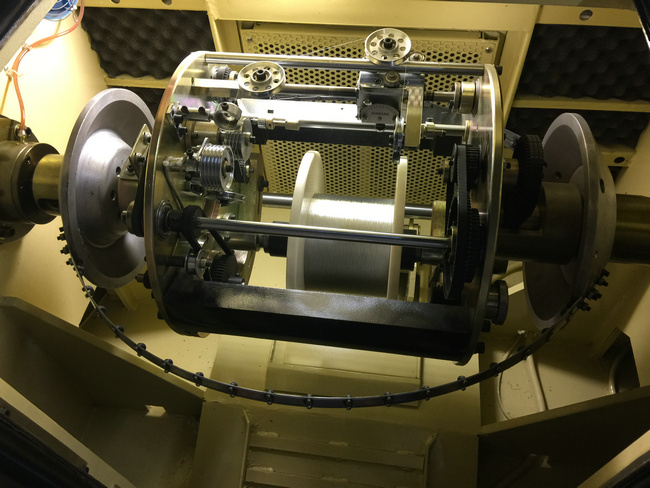

0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher
Quick Details:
It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Characteristics:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up to DHT-100 active back-twist pay off machine. And meet requirements of customer to twist wire of small section area. The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.
Specifications:
Equipment models | DHT-250B-1 |
Twisting usage | It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. |
Single wire dia(mm) | φ0.05-φ0.28 |
Stranding section area (mm²) | 0.0137-0.45 |
Pitch(mm) | 0.8-10.8(24zones) |
Direction of lay | Optional for right or left |
Outer dia*bore*outer width | φ300*φ30*185 φ250*φ30*185 |
Max rotating speed | 3500(7000twist) |
Main motor power | 3.7KW |
Inverter power | 3.7KW |
Tension control method | Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin |
Magnetic powder clutch | 0.6kgf |
Protection | Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. |
Brake mode | Electromagnetic brake |
Traversing method | Rolling ring drive units,winding pitch and breadth are adjustable |
Operation mode | Touch screen operation |
Dimension(mm) | 2300L*1100w*1330H |
