| Color: | Sky Blue | Fit For Bobbin: | Diameter 400mm |
|---|---|---|---|
| Fit Copper Wire: | 0.41mm-0.64mm | Type: | Active |
| Tension Control: | Permanent Magnet | Heads: | Can Do As Customer Requirement |
| High Light: | cable manufacturing machine,wire processing equipment | ||

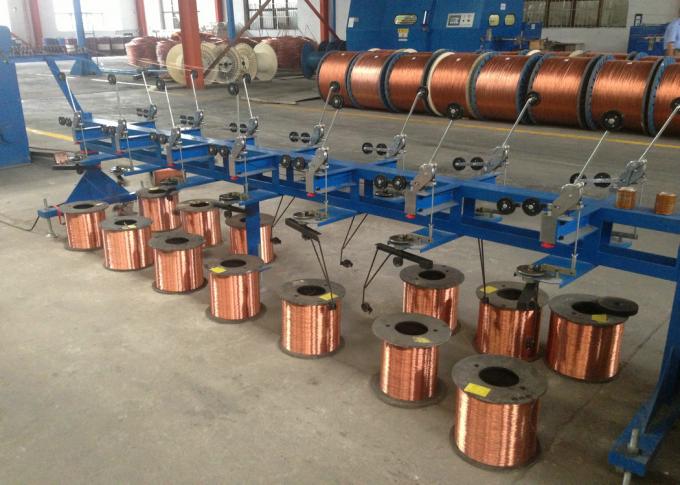

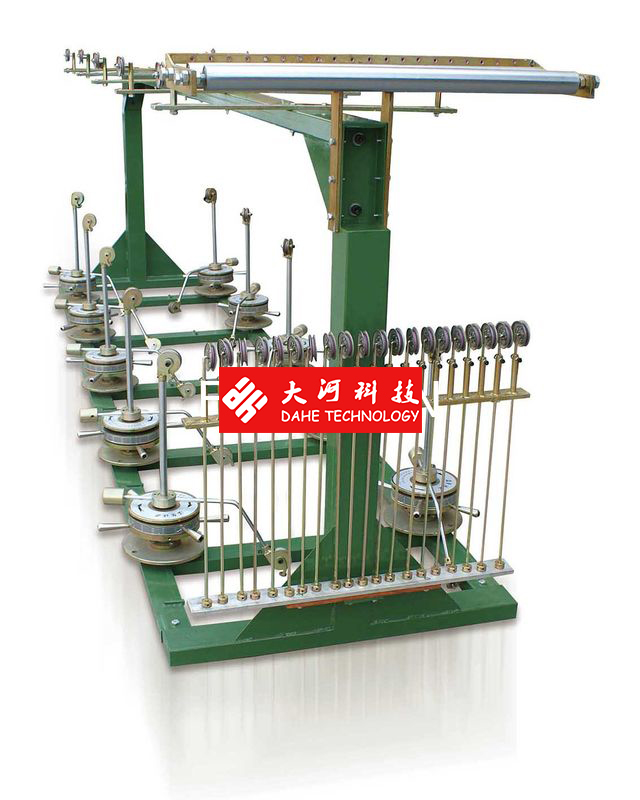

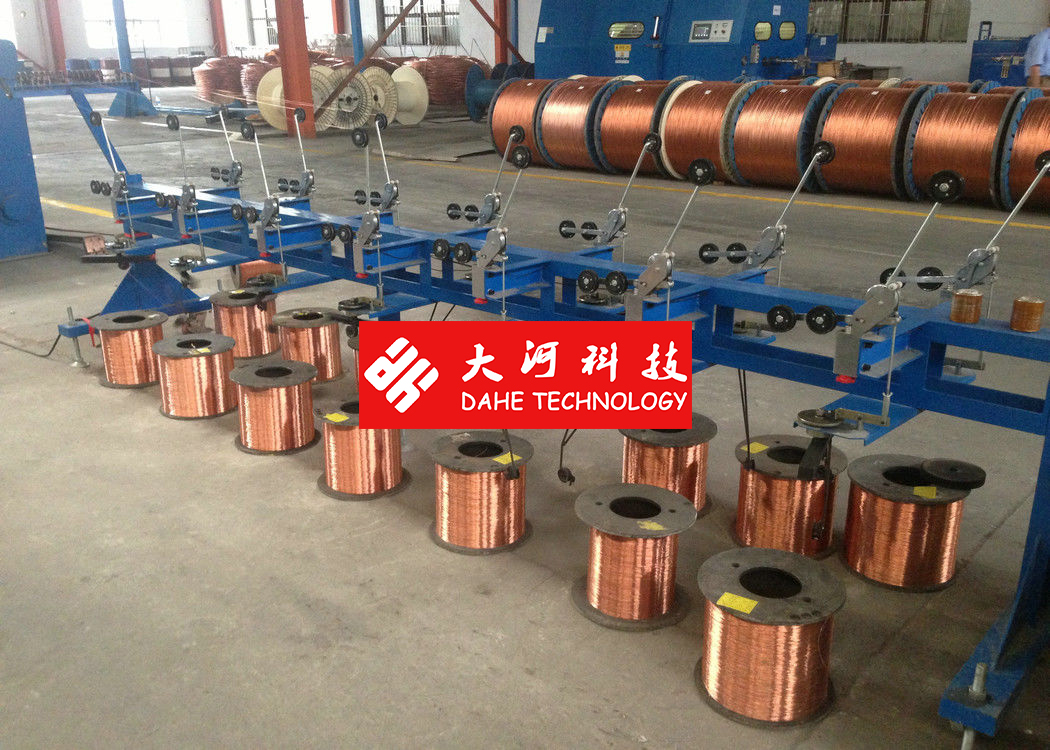

Permanent Magnetic Core Wire Twister Machine Multiple Active Pay Off For Buncher
Quick Details:
Applied to single wire and multiple drawing wires pay off. Match up with the high speed bunching machine,easy to operate,save more floor area.
Characteristics:
Model: DHT-400 permanent magnetic active pay off machine
Usage: Applied to doubling wire pay off, match up with the high speed bunching machine.
1. Single wire diameter: dia0.41mm-0.64mm
2. Pay off bobbin: PND400/300
3. Tension control: modified tension gun control,when wire is break, the machine will stopped automatically, with stable tension
4. 8heads/set*1set
5. Brake: Permanent magnetic rotating to achieve stable resistance.
Specifications:
| Equipment Models | DHT-200B | DHT-250B | DHT-300B | DHT-400B | |
| Twisting Usage | Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). | ||||
| Single Wire Dia(mm) | 0.016～0.08 | 0.03～0.18 | 0.05～0.28 | 0.05～0.32 | |
| Stranding Section Area(mm²) | 0.0014～0.035 | 0.0049～0.3 | 0.0137～0.45 | 0.0137～1.0 | |
| Pitch(mm) | 0.8～4.0(14 classes) | 0.8~10.8(24classes) | 1.6～21.6(24classes) | 3.1～33.3(24classes) | |
| Direction of Lay | Free to right or left | ||||
Take-up Bobbin(mm) Outer dia*bore*outer width | 200*31*135 | 300*30*185 | 250*30*185 300*30*185 | 300*30*185 400*56*300 | |
| Max Rotating Speed(rpm) | 5000rpm(10000tpm) | 4000rpm(8000tpm) | 3500rpm(7000tpm) | 3500rpm(7000tpm) | |
| Main Motor Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Inverter Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Tension Control | Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||||
| Magnetic Powder Clutch | 0.05kgf | 0.3kgf | 0.6kgf | 0.6kgf | |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | ||||
| Brake Mode | Electromagnetic brake | ||||
| Traversing Method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||||
| Operation Mode | Touch Screen Operation | ||||
| Dimension L*W*H | 2000*960*1100 | 2300*1100*1330 | 2300*1100*1330 | 2850*1150*1350 | |
