Product Details:
|
| Applied For Wire: | Copper Wire | Applied: | 0.05-0.28mm |
|---|---|---|---|
| Twist Type: | Double Head Twisting/stranding | Color: | Sky Blue |
| Power: | 5.5kw | Ultra Conductor: | Bare Copper Wire |
| Fit For Bobbin: | DIA 300mm | ||
| High Light: | wire processing machine,cable manufacturing machine | ||

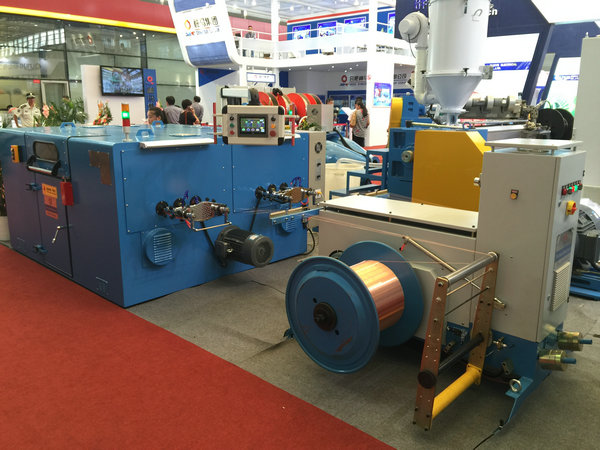

Noiseless double twist bunching machine For Medical Equipment / Aerosapce
Quick Detail:
Series for high speed twins bunching machine
The technology of this machine is brought from Japan and put in production in China
Characteristic:
The twins bunching machine has been developed to produce very accurate strands with very small sections for the electronic industry. It can produce simultaneously two different strand sections, on equal or different reels, at the same rotation speed. Two rotate shafts drive by one motor, thus achieve the environmental goal and low power. With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.
Specification:
| Model | DHT-300D-1 |
| Twisting usage | It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires). |
| Single wire dia(mm) | φ0.05-0.28 |
| Stranding section area (mm²) | 0.0137-0.45 |
| Pitch(mm) | 1.6-21.6(24zones) |
| Direction of lay | Optional for right or left |
| Take up bobbin size(mm) | Φ300*φ30*185 |
| Max rotating speed | 3500(7000twist) |
| Power | 5.5KW |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
| Magnetic powder clutch | 0.6kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |

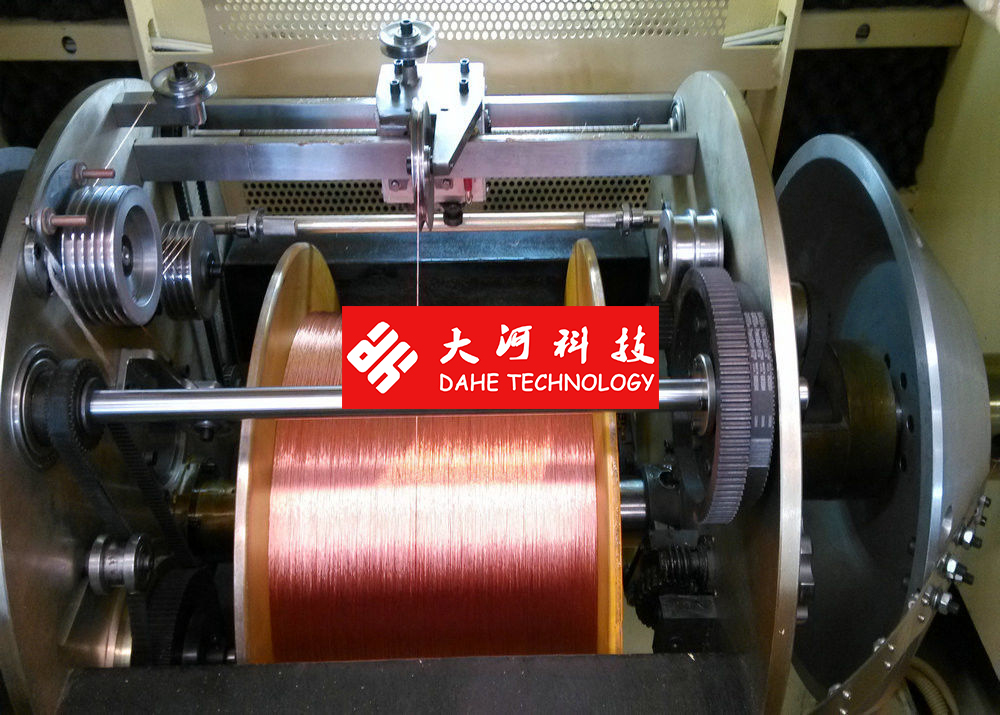

| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
| Dimension(mm) | 2400L*1750W*1100H |
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
