Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Fit For Single Wire: | 0.05mm-0.28mm |
|---|---|---|---|
| Applied For Wire: | Copper Wire/enamelled Wire/silver Jacketed Wire | Applied For Bobbin: | Dia 300mm Bobbin |
| Fit For Bobbin: | Dia 300/250mm | Tension Control Method: | Touch Screen+PLC+magnetic Powder Clutch |
| High Light: | wire processing machine,wire processing equipment | ||

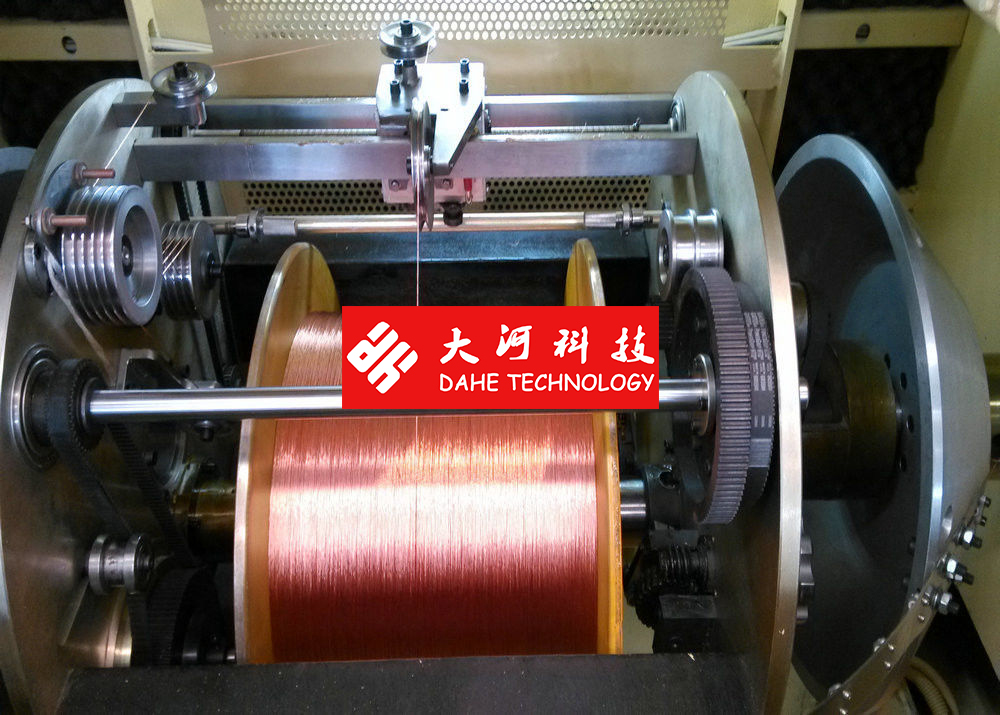

DAHETEC Copper Wire Twisting Machine For Stranding Ultra Conductor With PLC Control
Quick Details:
Apply for twisting of medical equipment, aerospace, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Characteristics:
1. With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up to DHT-100 active back-twist pay off machine.
2. The machine is driven by synchronization strap.
3. And meet requirements of customer to twist wire of small section area.
4. Only need to change the capstan wheel to change the pitch.
5. Easy to operate.
Specifications:
Equipment models | DHT-300B-5 |
Twisting usage | It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. |
Single wire dia(mm) | φ0.05-φ0.28 |
Stranding section area (mm²) | 0.0137-0.45 |
Pitch(mm) | 0.8-10.8(24zones) |
Direction of lay | Optional for right or left |
Outer dia*bore*outer width | φ300*φ30*185 φ250*φ30*185 |
Max rotating speed | 3500(7000twist) |
Main motor power | 3.7KW |
Inverter power | 3.7KW |
Tension control method | Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin |
Magnetic powder clutch | 0.6kgf |
Protection | Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. |
Brake mode | Electromagnetic brake |
Traversing method | Rolling ring drive units,winding pitch and breadth are adjustable |
Operation mode | Touch screen operation |
Dimension(mm) | 2300L*1100w*1330H |
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
