| Applied For Wire: | Copper Wire, Tinned Wires, Silver Jacketed Wires And Enameled Wires | Single Wire Dia: | 0.05 - 0.28mm |
|---|---|---|---|
| Twist Type: | Double Head Twisting/stranding | Machine Color: | Sky Blue |
| Power: | 5.5kw | Bobbin: | DIA 300mm |
| High Light: | wire processing machine,wire processing equipment | ||

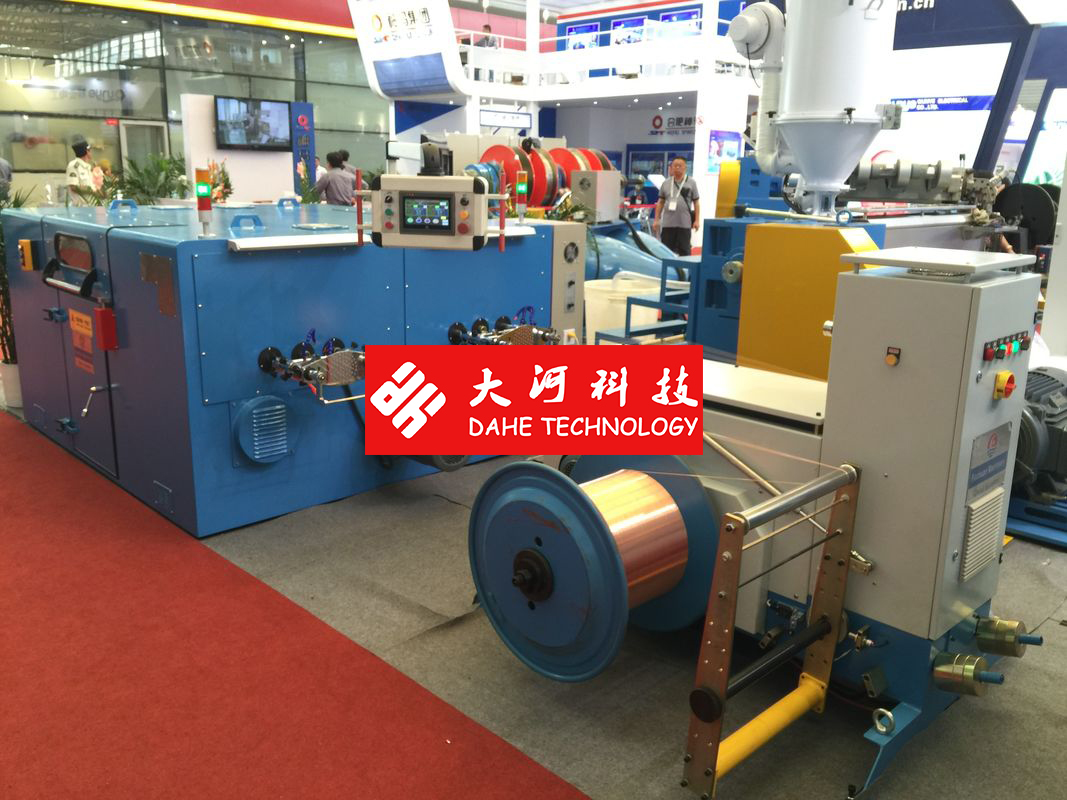

Double Head Copper Wire Twisting Machine For Medical Equipment , Ultra Conductor
Series for high speed twins bunching machine
1. Japanese Technology, product in China
Characteristics:
2.1 It can produce simultaneously two different strand sections, on equal or different reels, at the same rotation speed.
2.2 The twins bunching machine has been developed to produce very accurate strands with very small sections for the electronic industry.
2.3 Two rotate shafts drive by one motor, thus achieve the environmental goal and low power.
2.4 With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.
Specification:
| Model | DHT-300D-6 |
| Twisting usage | Apply for twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires). |
| Single wire dia(mm) | φ0.05-0.28 |
| Stranding section area (mm²) | 0.0137-0.45 |
| Pitch(mm) | 1.6-21.6(24zones) |
| Direction of lay | Optional for right or left |
| Take up bobbin size(mm) | Φ300*φ30*185 |
| Max rotating speed | 3500(7000twist) |
| Power | 5.5KW |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
| Magnetic powder clutch | 0.6kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
| Dimension(mm) | 2400L*1750W*1100H |
